0.00 - 20.00mg/L Online Luminescent Dissolved Oxygen Analyzer / Meter - LDO10AC

0.00 - 20.00mg/L Online Luminescent Dissolved Oxygen Analyzer / Meter - LDO10AC
0.00 - 20.00mg/L Online Luminescent Dissolved Oxygen Analyzer / Meter - LDO10AC

Large Image :  0.00 - 20.00mg/L Online Luminescent Dissolved Oxygen Analyzer / Meter - LDO10AC

Product Details:
Place of Origin: CHINA
Brand Name: SOP
Model Number: LDO10AC
Payment & Shipping Terms:
Minimum Order Quantity: 1

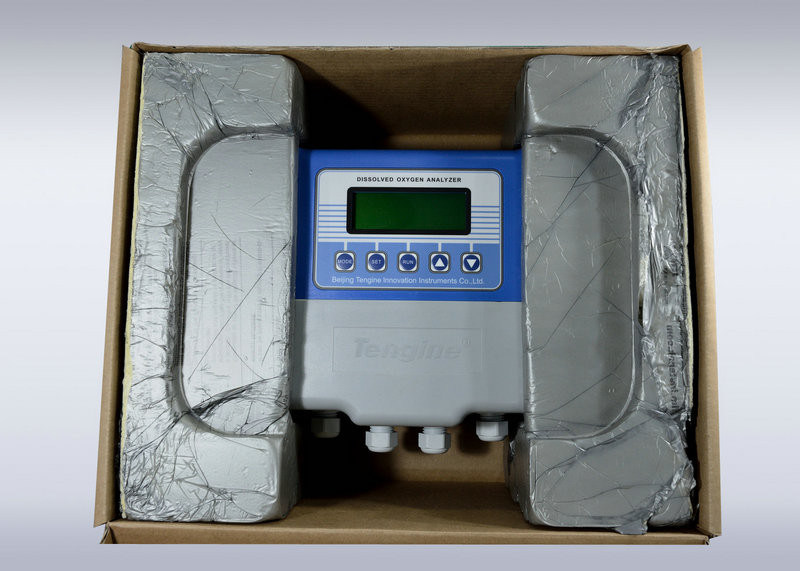

Packaging Details: Polyurethane foam + carton
Delivery Time: 15days
Payment Terms: L/C,T/T,Paypal
Supply Ability: 100 sets/month
Detailed Product Description
High Light:

dissolved oxygen sensor

,

handheld dissolved oxygen meter


0.00 - 20.00mg/L Online Luminescent Dissolved Oxygen Analyzer / Meter - LDO10AC


1. Application

Continuously monitor DO in municipal and industrial wastewater treatment process

• Sewage plant

Aeration tank,collection well,aerobic digestion tank,outlet

• Power plant

Water/wastewater treatment process

• Surface water

    Rivers,Lakes/Streams,ocean

• Aquaculture

Sea cages, land-based pond

• Other industries

Food industry,Chemical industry



2. Features and Benefits

• Based on the innovative principle utilizing fluorescence to measure dissolved oxygen, the sensor does not require frequent replacement of membranes and needs low maintenance.

• The Measurement does not consume oxygen, stir or flow is not required, and unaffected by H2S,pH, K+, Na+, Mg2+, Ca2+, NH4+, Al3+, Pb2+, Cd2+, Zn2+, Cr, Fe2+, Fe3+, Mn2+, Cu2+, Ni2+, Co2+, NO3-, SO4-2, S-2,

PO43+, Cl-.

• Digital sensor has good anti-interference performance and high stability, and the cable length is available in hundreds of meters.

• Connections between the sensor(s) and the transmitter are “plug and play”, and multi-channel transmitter operates either 1 or 2 sensors.

• Modbus RS485/RS232 or Profibus DP network connection for data transmission is Optional

• The menu is available in Chinese or English.

• 3 Relays with programmable hysteresis povide high-limit alarm, low-limit alarm or timer.

• A built-in data logger with the capacity to store data for up to 10 years collects measurement data at user selectable intervals.



3. Specifications



Performance characteristics

Measuring Range

0.00~20.00mg/L, or 0.00~20.00ppm, 0 to 200% saturation

Resolution

0.01mg/L,0.01ppm

Accuracy

±0.1ppm,±0.1mg/L

Sensitivity

±0.05% of span

Response time

90%<30s, 95%<90s, at 20ºC

Temperature compensation

automatic (NTC30KΩ)

Calibration

Factory calibrated, also can be calibrated by customer on site

Display

LCD displays data including date, time, measurement value, trendline, etc., English menu

Data storage

Auto-save function(Automatic Data Storage for up to 10 years,), power-off data protection

Outputs

Analog Outputs

Two isolated 0/4-20 mA output( maximum load 800 ohms), optional selection of 3.8mA or 21mA(under the condition of malfunction)

Relay outputs

3 Relays with programmable hysteresis, alarm or timer function optional

Relay capacity

2A, 250VAC

Digital Communication

MODBUS RS232/RS485,Profibus DP is optional

Power supply

AC power supply

85~265 VAC, 50Hz/60Hz

DC power supply

24 VDC ±10%

Physical parameters

Dimension of Transmitter

270×205×100mm(W×H×D)

(10.6*8*3.9 in.)

Dimension of Sensor

Φ45×118mm (1.8*4.5 in.)

Materials

--Transmitter: PC

--Sensor: 316L stainless steel

Process connection of sensor

1 inch cone male thread

Environmental conditions

Ingress protection

--IP66 (transmitter)

--IP68 (Sensor)

Operating Temperature

--Transmitter: -20~60℃

--Sensor: 0~50℃

Ambient Relative Humidity

0 to 95%, non-condensing

Operating Pressure

≤7.5Bar



4. Ordering Information



Ordering Information

Transmitter Selection



Channel number

Signal output

Power version

LDO









code

meaning

code

meaning

code

meaning



1

Single channel

0

4~20mA

AC

220VAC



2

Dual channel

1

RS 485(Modbus)

DC

24VDC







2

RS 232(Modbus)











3

Profibus DP





Example:

LDO10AC, single channel dissolved oxygen transmitter, output 4~20mA, 220V AC Power

supply.

Sensor Selection



Install mode

Cable length

LDO-S







code

meaning

code

Meaning



0

Immersion installation

C10

10m cable







CXX

XXm cable

Example:

LDO-S0C10, a LDO sensor, immersion-typed install , with 10m cable.



(3) Accessories

FA0000: Immersion mounting bracket, stainless steel

FA0001: Immersion mounting bracket, PVC

FA0010: Insertion mounting bracket, stainless steel, with DN50 stainless steel cut-off ball valve

FA0020: Stainless steel floating ball mounting bracket

FA0021: PVC floating-board mounting bracket

FA0031: Circulation mounting accessory, PVC

FA0900: Stainless steel adapter

FA0901: PVC adapter

FA0800: Instrument protective housing, stainless steel

FA0810: Instrument protective housing, stainless steel, with heater unit
