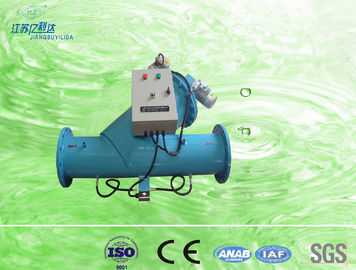

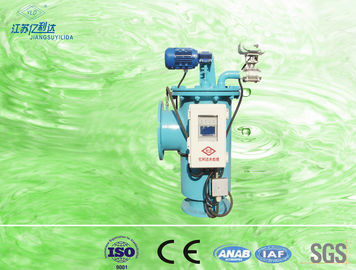

Self Cleaning 200 Micron Industrial Water Filters For Air Conditioning

Self Cleaning 200 Micron Industrial Water Filters For Air Conditioning
Self Cleaning 200 Micron Industrial Water Filters For Air Conditioning Self Cleaning 200 Micron Industrial Water Filters For Air Conditioning

Large Image :  Self Cleaning 200 Micron Industrial Water Filters For Air Conditioning

Product Details:
Place of Origin: China
Brand Name: YLD
Certification: CE/ SGS
Model Number: YL-2.5Y
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: With plywood case for outer packing
Delivery Time: 10 working days after received your payment
Payment Terms: T/T or western Union or L/C
Supply Ability: 500 units per month
Detailed Product Description
Product Name: Self Cleaning Water Filter Application: Industry
Inlet & Outlet Diameter: 2.5 Inch Flow Rate: 28 M3/Hr
Material: SUS 304/316/316L Carbon Steel Connection Mode: Flange
Working Temperature: 0~250 ℃ Filtration Degree: 100~3500 Micron
Working Pressure: 0.6Mpa Motor: 0.18/1400 Kw/r/min
High Light:

industrial water filtration systems

,

stainless steel water filter

200 Micron Filtering Degree Automatic Self Cleaning Filters






 Description:

Automatic brush filter, whose internal structure is composed by 304 stainless steel brush, stainless steel strainer cleaning and other main structure parts. The drive motor and the electric valve automatically finish cleaning and sewage discharging, The operation mode is automatically (or manual operation),with the functions of pressure  difference and automatic blow down .The automation component adopts nowadays the most advanced and reliable PLC programmable controller in the world .

When water flows through the filter, mechanical impurities in water will be intercepted by filtration screen ,when the poly impurity on filter surface area increases and the pressure reaches 0.04MPa,pressure difference switch will send a signal, At the same time, PLC will send out instruction, driving motor start and sewage valve open, Discharge valve to open, is deposited on the filter of impurities are rotating brush down, from pollution discharge outlet. The scrubbing sewage process without the operator, without stopping. meanwhile, the device is also provided with a timing cleaning sewage and manual cleaning draining function, ensure that in any case the water safety.





Characteristic



1. Full automatic electric apparatus
2. Filtering accuracy can be 3500um-200um.
3. Cleaning mode is simple: stainless steel brush type
4. Corrosion resistance: phosphate treatment, Steel body coated with resin, also can be manufactured according to the requirement of sea water corrosion resistant enclosure or stainless steel body

5. Reverse flushing flow, water consumption is few, no more than 1% of the total flow.





Range of application



Automatic brush filter is widely used in circular or non circulating cooling water system, heat exchange system, central air conditioning system, central heating system, are separately used to protect the cooling equipment, heat exchanger, air conditioning. etc. The equipment is applicable to a wide range of industry, including construction, chemical industry, electric power, metallurgy, rubber, paper, textile, coal, food and other industries.





Applications:

Automatic brush filter is widely used in circular or non circulating cooling water system, heat exchange system, central air conditioning system, central heating system, are separately used to protect the cooling equipment, heat exchanger, air conditioning. etc. The equipment is applicable to a wide range of industry, including construction, chemical industry, electric power, metallurgy, rubber, paper, textile, coal, food and other industries.


Specifications:



Model

 inlet and outlet

 L1

H

L

D

Max flow rate
(Ton/hour)

   motor
  (Kw/r/min)

Weight (Kg)

    mm

inch

YL-2Y

50

2

300

159

600

25

19

  0.18/1400

 80

YL-2.5Y

65

2.5

300

159

600

25

28

  0.18/1400

100

YL-3Y

80

3

300

219

600

25

50

  0.18/1400

130

YL-4Y

100

4

300

219

700

25

80

  0.18/1400

170

YL-5Y

125

5

350

219

750

40

125

  0.18/1400

200

YL-6Y

150

6

350

273

900

40

180

  0.18/1400

270

YL-8Y

200

8

525

325

950

40

320

  0.18/1400

350

YL-10Y

250

10

650

377

1140

40

490

  0.18/1400

390

YL-12Y

300

12

680

425

1190

40

710

  0.18/1400

480

YL-14Y

350

14

740

478

1290

40

970

  0.18/1400

550




FAQ:

01. What is the capacity (m3/hour)you required for this equipment?
02. What is the material for this filter?
Carbon steel ?or stainless steel (SS304/SS316)?
03. What is the filtration degree?
10 micron or 200 micron?
04. What is the power supply in your country?
220V/60Hz or other?
