Ultrasonic Leve Meter (HLML) preventing Disturbance well

Ultrasonic Leve Meter (HLML) preventing Disturbance well
Ultrasonic Leve Meter (HLML) preventing Disturbance well

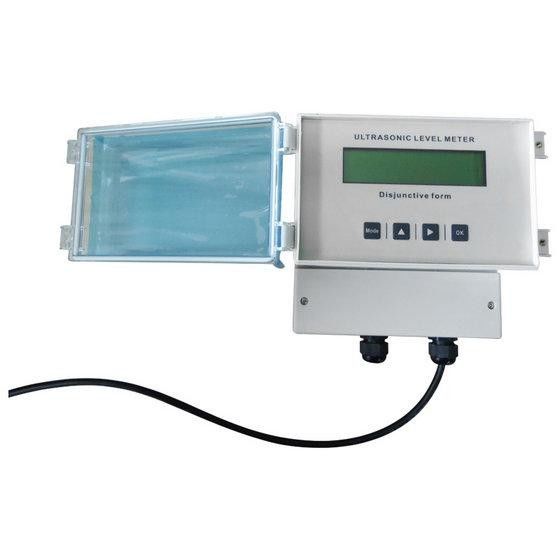

Large Image :  Ultrasonic Leve Meter (HLML) preventing Disturbance well

Product Details:
Place of Origin: China
Brand Name: OMNI
Model Number: 110h
Category: Clamp Meters
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Packaging Details: as your requirments
Delivery Time: 7 working days
Payment Terms: L/C,T/T,Paypal
Supply Ability: 1000 units per month
Detailed Product Description
High Light:

ultrasound amplitude measurement instrument

,

ultrasonics distance measurement


Application :
1 .500 meters between the main engine and the sensors .
2.DC and AC can be selected
3.you can remote control setting up the parameter , installed conveniently
4.Supply the high or low switch signal , RS485 output .
5. preventing Disturbance well
6.Airtight structure , No Corrosion .

Specification

1 .Resolution 1mm/1cm

2.Measuring error : 0.2%( full range)

3.Display : Two lines ,14 letters,LCD Display (back light )

4.Signal output : DC 4-20mA RS485

5.Outpot load : 0-500Ω

6.Relay output : higher alarm /lower alarm

7.Relay mode : always open

8.relay quatity: 2 or 4

9,relay specification : 5A 250VAC /30VDC

10 RS485 standard level

11.power supply : HLMLD : DC24V (±10%) 0.1 A

HLMLA: AC220V(±20%) 0.1 A

12.Measure Cycle :1 second ( can change)
13: Temperature : -40ºC~85ºC
14.Crust Material :ABS
15.Outer cover :IP67
16.Cable Fix: PG9/PG11/PG13.5
17. Parameter Set Up: 3 induction buttons
18.Installation :wall mount ,clamp on
19.Dimension : 186*183*126mm
