RISEN ULTRASONIC Liquid LEVEL METER-RFG10

The main function specifications:

·Distance accuracy online revise in different environment (customized).

·Automatically follow the environment temperature to compensate the distance value.

can be applied directly in liquid level measurement, easy mounting. It also has selections of added value/differential value distance measurement model, can be used in distance and level measurement.

·2 route or 4 route limiting value setting, can be applied in liquid level either with section control or line control.

·RS485/232 Serial signal output or 4~20mA and 0~20mA analog quantity output or 1~5V and 0~5V analog quantity output (optional).

·Functions of "echo intelligent recognition" and "middle slope" digital filtering function.

·For different measurement objects, customers can set the measure period from 100~0.1 times/second.

·Select PC serial output and conversion attachment, the networking with principal unit can be realized directly.

·keyboard operation, display can be shut down during operation to save energy.

·With selection of 1~15 level transmitting power, it can be revised anytime according to different operation environment.

·Full measure range starting point and ending point digitalize translatory function.

·sound velocity transition region temperature compensation digital adjustment platform.

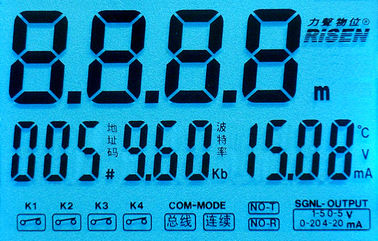

·Abundant information on LCD display, including level, weight, temp, current, voltage, limiting value switching situation etc.

·Serial signals sending could be PTP, BUS type.

The main technical parameters:

Liquid level measurement range: 10m（clean environment，stable objective surface）

Accuracy of detection: 0.5% F.S (25 degrees centigrade, at double blind area range)

Probe blind area:≤500mm (varies from different measure range and sensor, at 25 degrees centigrade)

Output signal: 4～20mA+RS485

Display: LCD display+backlight

Working temperature: 0 ~ + 50degrees centigrade（wider temperature range can be customized）

Work power:AC220V /50Hz（default）,DC24V/300mA（optional）

Protection level: Sensor IP65（IP66，IP67，IP68 can be customized）

Sensor down-lead: 10m

Mounting model: screw, or sifter clamping

Application environment: constant pressure, NOT explosion-proof, Non erosive environment:
