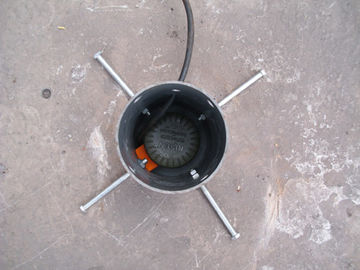

RISEN ULTRASONIC LEVEL METERS-RPC5A2

The main function characteristics:

·distance accuracy online revise in different environment(customized).

·Automatically follow the environment temperature to compensate the distance value.

·Differential value can be set, RS series has equipped with Flange plate, other series all have screw fastening, can be applied directly in liquid level measurement, easy mounting. It also has selections of added value/differential value distance measurement model, can be used in distance and level measurement.

·2 route or 4 route limiting value setting, can be applied in liquid level either with section control or line control.

·RS485/232 Serial signal output or 4~20mA and 0~20mA analog quantity output or 1~5V and 0~5V analog quantity output(optional).

·Functions of "echo intelligent recognition" and "middle slope" digital filtering function.

·For different measurement objects, customers can set the measure period from 100~0.1 times/second.

·Select PC serial output and conversion attachment, the networking with principal unit can be realized directly.

·Select PC serial output and conversion attachment, the networking with principal unit can be realized directly.

·keyboard operation, display can be shut down during operation to save energy.

·With selection of 1~15 level transmitting power, it can be revised anytime according to different operation environment.

·Full measure range starting point and ending point digitalize translatory function.

·sound velocity transition region temperature compensation digital adjustment platform.
·Abundant information on LCD display, including level, weight, temp, current, voltage, limiting value switching situation etc.

·Serial signals sending could be PTP,BUS type.

◆The main technical indexes:

liquid level measurement range: 5m（clean environment，stable objective surface，）

Flow precision:Better than 0.5% FS(at times, and the blind process ℃)

Probe blind area:≤300mm (at 25 ℃)

Output signal: 4～20mA tow -wire

Showing the way: LCD display,

Working temperature: 0 ~ + 50 ℃（wider temperature range can be customized）

Work power:DC24V / 300 mA circuit power supply

Protection level:Sensor IP65（IP66，IP67，IP68 can be customized）

Cable way: quick connect cable terminal

Mounting model: screwM68×2.0，or sifter clamping

Application environment: constant pressure, NOTexplosion-proof, Non erosive environment:

Shell color: 4 colors available, standard devices are randomly chosen to be distributed
