WRET-01 Type pressure spring fixed type nickel chromium copper nickel thermocouple

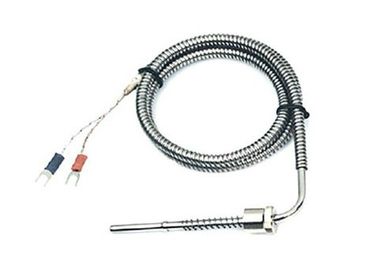

Large Image : WRET-01 Type pressure spring fixed type nickel chromium copper nickel thermocouple

Product Details:

Place of Origin:	China
Brand Name:	OEM
Model Number:	WRET -01

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	contact
Packaging Details:	Carton box
Delivery Time:	10 days
Payment Terms:	T/T
Supply Ability:	1000PCS / month

Contact Now

Detailed Product Description

High Light:

s type thermocouples

temperature measurement thermocouple

WRET-01 Type pressure spring fixed type nickel chromium copper nickel thermocouple

Specifications and parameters:

Model	Indexing NO.	Measure range ℃		Thermal response time t0.5	Protection tube material
WRET-01	E(EA-2)	0～400		＜5	1Cr18Ni9Ti stainless steel
specifications					connecting bolt L2mm
Total length Lmm			Protection tube L1mm
1000 1500 2000 2500 3000 3500 4000			30 30 30 30 30 30 30		35 or 70
1000 1500 2000 2500 3000 3500 4000			60 60 60 60 60 60 60

Descrition:

WRET-01 Type pressure spring fixed type nickel chromium copper nickel thermocouple thermocouple by the pressure spring will end and the measured object surface close to the,to improve the measurement accuracy and reliability.It and display instrument used for the matching, can be directly measured at 0 to 400 DEG C within the scope of temperature.Thermocouple extension wire with a soft, can be freely bent, with the thermal response time of small, use convenient wait for a characteristic, applied to the plastic machine, textile, food and other industries Structure principle

WRET-01 Type thermocouple principle, indexing characteristics and tolerances, the reference terminal (cold junction temperature compensation, as well as) and display instrument with the same general thermocouple connecting method.
WRET-01 type thermocouple structure as shown in the figure, the protection tube, the mounting bolt, locking sleeve, spring and heat resistance wire.
