| High Light: | s type thermocouples,high temperature thermocouple |
||
|---|---|---|---|

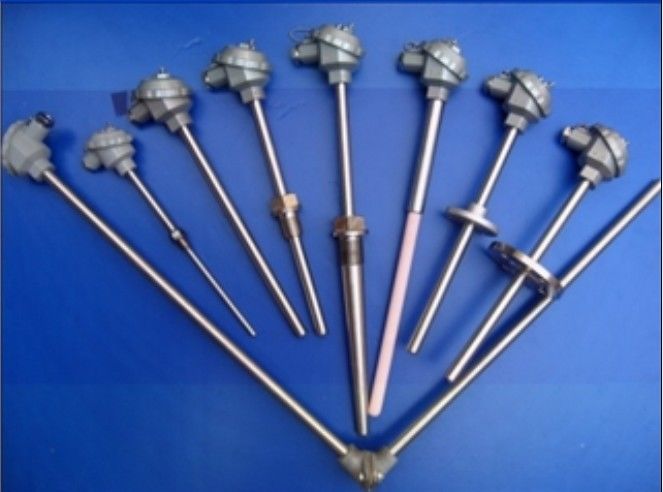

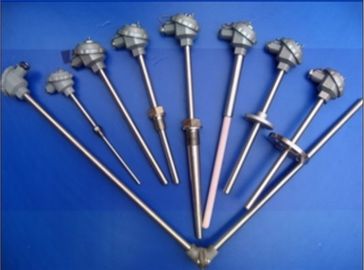

WRN / WRE series No fixtures thermocouple, Assembly Thermocouple
WRN / WRE series No fixtures thermocouple, Assembly Thermocouple, Temperature Sensor, K type thermocouple, E type thermocouple
|
Name |
Model |
Installation |
No indexing |
Protection tube material |
Diameter |
Temperature range |
|
Ni-Cr - Ni-Si Thermocouple |
WRN-120 |
No fixtures |
K(EU-2) |
1Cr18Ni9Ti |
Φ16mm |
0～1100℃ |
|
-130 |
||||||
|
WRN-121 |
Φ20mm |
|||||
|
-131 |
||||||
|
WRN-122 |
High alumina protection tube |
Φ16mm |
0～1300℃ |
|||
|
WRN-123 |
Φ20mm |
|||||
|
Ni-Cr – constantan Thermocouple |
WRE-120 |
E(EU-2) |
1Cr18Ni9Ti |
Φ16mm |
0～900℃ |
|
|
-130 |
||||||
|
WRE-121 |
Φ20mm |
|||||
|
-131 |
||||||
|
WRE-122 |
High alumina protection tube |
Φ16mm |
||||
|
-123 |
Φ20mm |
WRP-120 130 121 131 320 330 321 331 Platinum Rhodium 10 - Platinum Thermocouple, S-type thermocouple
WRR-120 130 121 131 320 330 321 331 Platinum Rhodium 30 - Platinum Thermocouple 6, B-type thermocouple
WRN-120 130 121 131 122 123 No fixed assembly thermocouple, K type thermocouple, nickel chromium - nickel silicon thermocouple
WRE-120 130 121 131 122 123 No fixed thermocouple assembly, E-type thermocouple, NiCr - constantan thermocouple
WRN-220 230 221 231 Thermocouple assembly screws, K type thermocouple, nickel chromium - nickel silicon thermocouple
WRE-220 230 221 231 Thermocouple assembly screws, E-type thermocouple, NiCr - constantan thermocouple
WRN-320 330 321 331 Flanges fabricated thermocouple, K type thermocouple, nickel chromium - nickel silicon thermocouple
WRE-320 330 321 331 Flanges fabricated thermocouple, E-type thermocouple, NiCr - constantan thermocouple
WRN-420 430 421 431 Mounting flange assembly type thermocouple, K type thermocouple, nickel chromium - nickel silicon thermocouple
WRE-420 430 421 431 Mounting flange assembly type thermocouple, E-type thermocouple, NiCr - constantan thermocouple
WRN-520 530 Right angle thermocouple assembly, K type thermocouple, nickel chromium - nickel silicon thermocouple
WRN-620 630 Thermocouple fixed threaded cone assembly, K type thermocouple, nickel chromium - nickel silicon thermocouple
WRE-620 630 Thermocouple fixed threaded cone assembly, E-type thermocouple, NiCr - constantan thermocouple
WRN-140 141 240 241 440 441 Explosion-proof Thermocouple, K type thermocouple, nickel chromium - nickel silicon thermocouple
Thermocouple assembly, nickel chromium - nickel silicon thermocouples, nickel chromium - constantan thermocouple, K type thermocouple, E-type thermocouple, S-type thermocouple, B-type thermocouple, explosion-proof Thermocouples, flameproof thermocouple
|
Thermocouple Model Description |
|
W R □ □ -□ □ □ |
|
a b c d e f g |
|
a. Temperature Instrumentation |
|
b. Thermocouple |
|
c. Temperature Instrumentation |
|
R: Platinum Rhodium 10 - Platinum Rhodium 6 |
|
P: Platinum Rhodium 10 - Platinum |
|
N: Ni-Cr - Ni-Si |
|
E: Ni-Cr – constantan |
|
d. 2: Two-core thermocouple |
|
e. Mounting form: |
|
1: No fixtures |
|
2: Fixed thread |
|
3: Activities flange |
|
4: Fixed flange |
|
5: Right Angle |
|
6: Screw protection tube cone |
|
f. Junction box in the form: |
|
1: No junction box |
|
2: Splash type |
|
3: Waterproof type |
|
4: Explosion-proof type |
|
g. Design No: |
|
0: Φ16mm Stainless steel protection tube |
|
1: Φ20mm Stainless steel protection tube |
|
2: Φ16mm High alumina protection tube |
|
3: Φ20mm High alumina protection tube |
|
4: Φ25mm protection tube |
