WREK-401 402 Easy mounting flange type sheathed thermocouple, E type thermocouple

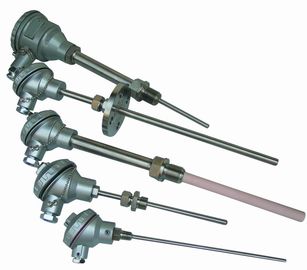

Large Image : WREK-401 402 Easy mounting flange type sheathed thermocouple, E type thermocouple

Product Details:

Place of Origin:	China
Brand Name:	OEM
Model Number:	WRET-01

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	contact
Packaging Details:	Carton box
Delivery Time:	10 days
Payment Terms:	T/T
Supply Ability:	800PCS / month

Contact Now

Detailed Product Description

High Light:

s type thermocouples

high temperature thermocouple

WREK-401 402 Easy mounting flange type sheathed thermocouple, E type thermocouple

WRNK-101 102 No fixed simple type sheathed thermocouple, K type thermocouple
WREK-101 102 No fixed simple type sheathed thermocouple, E type thermocouple
WRNK-201 202 Simple screw-type sheathed thermocouple, K type thermocouple
WREK-201 202 Simple screw-type sheathed thermocouple, E type thermocouple
WRNK-301 302 Simple screw-type activities sheathed thermocouple, K type thermocouple
WREK-301 302 Simple screw-type activities sheathed thermocouple, E type thermocouple
WRNK-401 402 Easy mounting flange type sheathed thermocouple, K type thermocouple
WREK-401 402 Easy mounting flange type sheathed thermocouple, E type thermocouple
WRNK-501 502 Event-type sheathed thermocouple flange simple, K-type thermocouple
WREK-501 502 Event-type sheathed thermocouple flange simple, E-type thermocouple
WRNK-121 131 122 132 No fixed wiring box sheathed thermocouple, K type thermocouple
WREK-121 131 122 132 No fixed wiring box sheathed thermocouple, E type thermocouple
WRNK-221 231 222 232 Screw terminal box sheathed thermocouple, K type thermocouple
WREK-221 231 222 232 Screw terminal box sheathed thermocouple, E type thermocouple
WRNK-321 331 322 332 Activities screw terminal box sheathed thermocouple, K type thermocouple
WREK-321 331 322 332 Activities screw terminal box sheathed thermocouple, E type thermocouple
WRNK-421 431 422 432 Fixed flange connection box sheathed thermocouple, K type thermocouple
WREK-421 431 422 432 Fixed flange connection box sheathed thermocouple, E type thermocouple
WRNK-521 531 522 532 Flanges sheathed thermocouple cable box, K-type thermocouple
WREK-521 531 522 532 Flanges sheathed thermocouple cable box, E-type thermocouple
WRNK-191 192 No fixed compensation wire-type sheathed thermocouple, K type thermocouple
WREK-191 192 No fixed compensation wire-type sheathed thermocouple, E type thermocouple
WRNK-291 292 Screw-type sheathed thermocouple compensation wire, K-type thermocouple
WREK-291 292 Screw-type sheathed thermocouple compensation wire, E-type thermocouple
WRNK-391 392 Activities screw-type sheathed thermocouple compensation wire, K-type thermocouple
WREK-391 392 Activities screw-type sheathed thermocouple compensation wire, E-type thermocouple
WRNK-491 492 Mounting flange type sheathed thermocouple compensation wire, K-type thermocouple
WREK-491 492 Mounting flange type sheathed thermocouple compensation wire, E-type thermocouple
WRNK-591 592 Flanges compensation wire-type sheathed thermocouple, K type thermocouple
WREK-591 592 Flanges compensation wire-type sheathed thermocouple, E type thermocouple
WRNK-181 182 No fixed handle type sheathed thermocouple, K type thermocouple
WREK-181 182 No fixed handle type sheathed thermocouple, E type thermocouple
WRNK-281 282 Handle screw-type sheathed thermocouple, K type thermocouple
WREK-281 282 Handle screw-type sheathed thermocouple, E type thermocouple
WRNK-381 382 Activities screw handle type sheathed thermocouple, K type thermocouple
WREK-381 382 Activities screw handle type sheathed thermocouple, E type thermocouple
WRNK-481 482 Fixed flange handle type sheathed thermocouple, K type thermocouple
WREK-481 482 Fixed flange handle type sheathed thermocouple, E type thermocouple
WRNK-581 582 Flanges handle type sheathed thermocouple, K type thermocouple
WREK-581 582 Flanges handle type sheathed thermocouple, E type thermocouple

Sheathed thermocouple Model Description

W R □ K -□ □ □

a b c d e f g

a. Temperature Instrumentation

b. Thermocouple

c. Thermocouple elements

N: Ni-Cr - Ni-Si

E: Ni-Cr – constantan

C: Copper - constantan

F: Iron - Constantan

d. Sheathed thermocouple

e. Mounting form:

1: No fixtures

2: Fixed sleeve screws

3: Movable sleeve screws

4: Fixed sleeve flange

5: Movable sleeve flange

f. Junction box in the form:

0: Simple style

2: Splash-type terminal block

3: Waterproof junction box type

8: Handle Type

9: Compensation wire type

g. Design No:

0: Insulation Type

1: Shell Access

2: Lu-ended

3: Insulation type (handle type

Sheathed thermocouple, K type thermocouple, E-type thermocouple, K-type sheathed thermocouple, E-type sheathed thermocouple, insulated thermocouple, then shell thermocouple, insulation type Sheathed thermocouple, then shell armored thermocouple, temperature sensor, temperature probe, compensation wire, temperature compensation wire
