SS φ12mm Conduit Switch Magnetic Level Gauges Inserted Magnetic Liquid Level Switch

Name: SS φ12mm Conduit Switch Magnetic Level Gauges Inserted Magnetic Liquid Level Switch
Brand: OEM
SKU: UHZ-10R00
Rating: 4.9 (117 reviews)

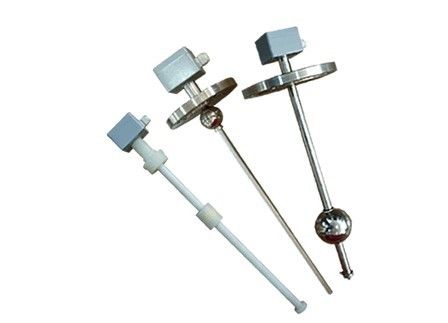

Large Image : SS φ12mm Conduit Switch Magnetic Level Gauges Inserted Magnetic Liquid Level Switch

Product Details:

Place of Origin:	China
Brand Name:	OEM
Model Number:	UHZ-10R00

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden box packing
Delivery Time:	15 days after signing the contract
Payment Terms:	T/T
Supply Ability:	1000sets

Contact Now

Detailed Product Description

High Light:

temperature measurement thermocouple

high temperature thermocouple

SS φ12mm Conduit Switch Magnetic Level Gauges Inserted Magnetic Liquid Level Switch

Inserted Magnetic Liquid Level Controller(SS)

●Model: UHZ-10R00...SDN...PN...(Standard)

●Specification:
Junction box:ABS
Material:SS
Conduit:φ12mm
Conduit length:Max 2000mm
Float:φ50mm
Min S.G.:0.78g/cm3
Pressure:1.6MPa
Flange:DN50PN1.6
Resolving power:10mm
Max temperature:70℃

Inserted Magnetic Liquid Level Controller(PVC)

●Model: UHZ-10R00...PDN100PN...(Standard)

●Specifiction:
Pressure:1.0MPa
Material:UPVC
Flange:DN100PN1.0
Conduit:20mm
Conduit length:Max 4000mm
Float:φ80mm
Min S.G.:0.5g/cm3
Max temperature:60℃
Resolving power:10mm
