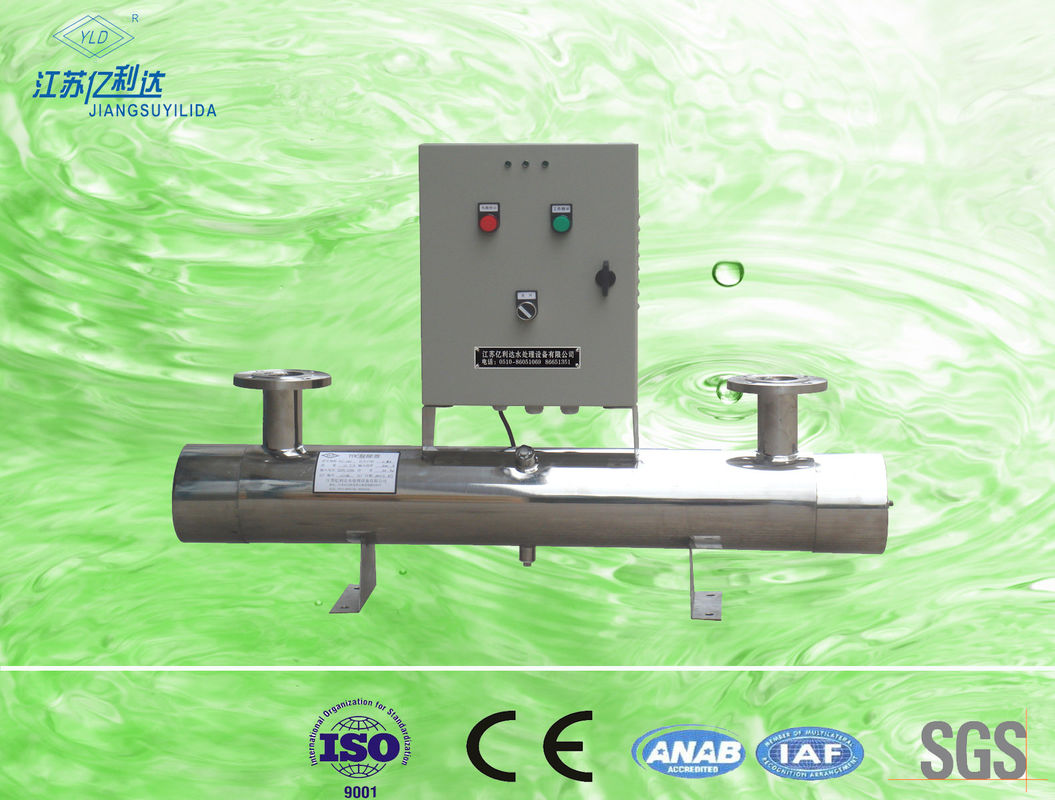

Pure Water / Fruit Juice UV Water Sterilizer System 25000 LPH

Large Image : Pure Water / Fruit Juice UV Water Sterilizer System 25000 LPH

Product Details:

Place of Origin:	China
Brand Name:	YLD
Certification:	SGS
Model Number:	YLC-600

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negotiation
Packaging Details:	with plywood case for outer packing
Delivery Time:	10 working days after received your payment
Payment Terms:	T/T or L/C or western Union
Supply Ability:	3,000 units per month

Contact Now

Detailed Product Description

Product Name:	UV Sterilizer	Flow Rate:	25,000 LPH
Inlet And Outlet Diameter:	3 Inch	Power:	280W
Service Life Of The UV:	More Than 9000 Hours	Power Supply:	380V/220V/110V 50Hz/60Hz
Connection Mode:	Flange	Working Pressure:	0.6Mpa
High Light:	water uv sterilizer , uv lamp sterilizer

High Efficiency Sterilization UV Water Disinfection System For Pure Water

Low Cost UV Lamp Monitoring System 25,000 LPH Fruit Juice UV Sterilization Machine
Working principle:

The device adopts a special high strength non ozone ultraviolet sterilizing lamp and stainless steel barrel body odor whose inner wall specially treated by micro carbon martensite, outer side of the barrel body with a special polishing processing, then the pretreated water flows in the tube, it will receive enough line volume of ultraviolet irradiation 253.7nm, which shows excellent germicidal efficacy, but also effectively reduces the influence on ultra pure water.

Comparison Of Disinfection Methods:

Factors to be considered		Liquid chlorine disinfection	Chlorine dioxide disinfection	Ozone disinfection	UV disinfection
Time to be processed		30 min	≤30min	5~10min	30~60s
Dosage (mg/l)		2~20	5~10	1~3	30~40
Efficiency of inaction bacteria		High	High	High	High
Efficiency of bacteria and viruses		Lower middle	Middle	High	High
Water quality factors		More easily affected by PH and temperature	More easily affected by PH and temperature	Less affected by PH and temperature	Less affected by PH and temperature
Operation complexity		Simple to middle	Middle	Complicated	Simple to middle
Economical efficiency	Operation cost	Lower middle	Middle	Above the average	Lower middle
	Area	Large	Less	Small	Small
	Maintenance work	Large	Less	Large	Small
Adverse impact	Safety during transportation	Yes	Yes	No	No
	Site security	Very high	Middle	Middle	Smaller
	Poisoning against the fishes and large invertebrates	Toxic	Poisonous	No	No
	Whether there exists the toxic by product	Yes	Exist in small quantity	Yes	No
	Disposal of the cleaning agents	No	No	No	Have
	Whether or not to increase the content of the soluble solid	Yes	Yes	No	No
	Corrosively	Yes	Yes	Yes	No
	High energy consumption	No	No	Yes	Yes

Product features:

1.SS304 or SS316 stainless steel reactor.
2.Quartz sleeve to ensure the best working temperature.
3.Comprehensive sterilization, efficient and fast, sterilization rate is up to 99.9%.
4.High output, physical sterilization, without negative effects, without secondary pollution.
5.Full stainless steel shell, adopts European technology, smooth inner wall, without blind zone.
6.Equipment is cleaning and polishing, applicable to high purifying environment.
7.The electrical device is configured to apply in the market around the world.
8.Has special design, and operates very conveniently.

FAQ:

01. What is the source of raw water to be treated?
-- is it underground water or well water? or river water ,other source?
02. What is the capacity(m3/hour) you required for this sterilizer?
-- most IMPORTANT requirement.
03. What will the treated water be used for?
--for human drinking or industry purpose?
04. What is the power supply in your country?
220V/60Hz or other?

Details Show:
