Stainless Steel Housing 50 Micron Industrial Water Filters With Multi - Cartridge

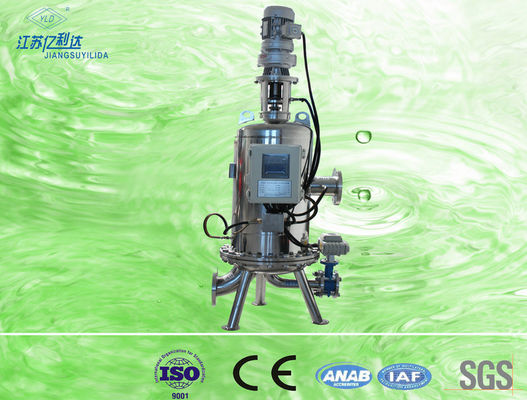

Large Image : Stainless Steel Housing 50 Micron Industrial Water Filters With Multi - Cartridge

Product Details:

Place of Origin:	China
Brand Name:	YLD
Certification:	CE/ SGS
Model Number:	YLF-50

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negotiation
Packaging Details:	With plywood case for outer packing
Delivery Time:	10 working days after received your payment
Payment Terms:	T/T or western Union or L/C
Supply Ability:	500 units per month

Contact Now

Detailed Product Description

Product Name:	Self Cleaning Water Filter	Application:	Water Treatment
Inlet & Outlet Diameter:	1 Inch	Flow Rate:	70 M3/Hr
Material:	SUS 304/316/316L Carbon Steel	Connection Mode:	Flange
Working Temperature:	0~250 ℃	Filtration Degree:	50~3500 Micron
Working Pressure:	0.6Mpa	Drain Diameter:	DN 25mm
High Light:	industrial water filtration systems , portable water filters

Stainless Steel Housing 50 Micron Automatic Backwash Multi-cartridge Water Filter

Product introduction

Multielement self-cleaning filter is applicable for filtering the grain impurities in the high flow, high speed, and low viscosity liquid. Multielement self-cleaning filter is a mechatronic equipment with the features of reasonable design, high efficiency of filtering, low running cost and successive filtering during the backwashing filtering. It could be extensively applied in the fields like metallurgy, chemical industry, power, injection water of the oil field and environmental water treatment.

Work principle

The filtered liquid gets into the filter from the entrance and into the strainer from the lower plate. The liquid flows from the inner side of the strainer to the outer side and gets out from the filter through the exit of the filter cartridge. The impurity from the backwashing is drained from the drainage entrance.

Specifications:

Model	Flow (T/h)	Inlet and outlet diameter (mm)	Drainage diameter (mm)	D (mm)	H (mm)	H1 (mm)	H2 (mm)
YLF-50	70	DN50	DN50	300	1690	265	640
YLF-80	80	DN80	DN50	350	1720	265	660
YLF-100	120	DN100	DN50	400	1760	265	680
YLF-200	200	DN200	DN80	500	1860	290	715
YLF-250	280	DN250	DN80	600	1930	290	755
YLF-300	450	DN300	DN100	700	2040	335	755
YLF-350	600	DN350	DN100	800	2105	335	770
YLF-400	800	DN400	DN100	1000	2220	335	800
YLF-500	1000	DN500	DN100	1200	2360	365	825

FAQ:

01. What is the capacity (m3/hour)you required for this equipment?

02. What is the material for this filter?
Carbon steel ?or stainless steel (SS304/SS316)?

03. What is the filtration degree?
10 micron or 200 micron?

04. What is the power supply in your country?
220V/60Hz or other?
