Product Details:
Payment & Shipping Terms:
|
| Product Name: | Brush Filter | Application: | Industry |
|---|---|---|---|
| Inlet & Outlet Diameter: | 2 Inch | Flow Rate: | 19 M3/Hr |
| Material: | SUS 304/316/316L Carbon Steel | Connection Mode: | Flange |
| Working Temperature: | 0~250 ℃ | Filtration Degree: | 100~3500 Micron |
| Working Pressure: | 0.6Mpa | ||
| High Light: | portable water filters,stainless steel water filter |
||
Lower Cost...But Have Big Function...

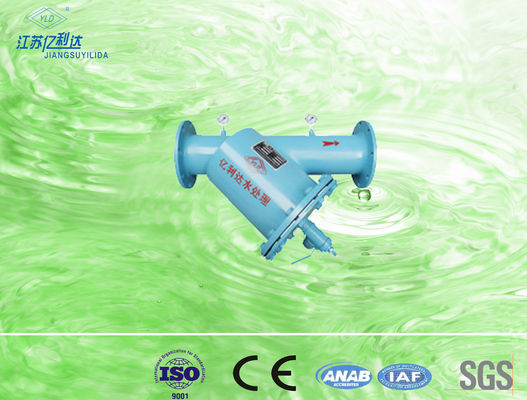

19,000 LPH Flow Rate Horizontal Brush Filter With Manual Drive
Description:
Product introduction

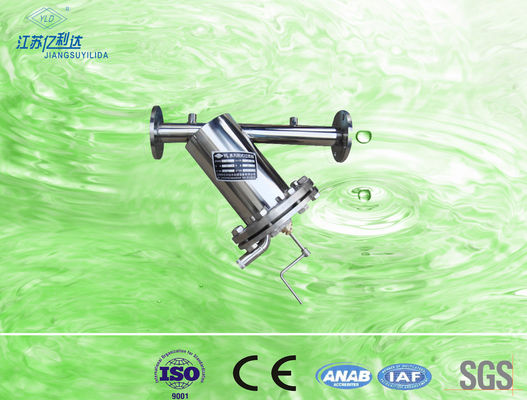

Brush filter with manual drive is made up of the stainless steel wire brush, stainless steel strainer and rotating part. The washing device is installed at the inner side of the stainless steel strainer One handle is installed on the filter cover Turning the handle to lead the washing part to brush off the grain on the strainer, the grain will be discharged from the drainage entrance. The water flow will not stop during the brushing without machine halt and disassembly of the filter for washing the strainer.
Technical parameter
Working pressure: ≤1.0MPa(If exceed the pressure, please make a note when place an order); Pressure loss: ≤0.015MPa; Working temperature≤90Centigrade; Filter Precision d=1.2mm
Range of application
Automatic brush filter is widely used in circular or non circulating cooling water system, heat exchange system, central air conditioning system, central heating system, are separately used to protect the cooling equipment, heat exchanger, air conditioning. etc. The equipment is applicable to a wide range of industry, including construction, chemical industry, electric power, metallurgy, rubber, paper, textile, coal, food and other industries.
Applications:
Automatic brush filter is widely used in circular or non circulating cooling water system, heat exchange system, central air conditioning system, central heating system, are separately used to protect the cooling equipment, heat exchanger, air conditioning. etc. The equipment is applicable to a wide range of industry, including construction, chemical industry, electric power, metallurgy, rubber, paper, textile, coal, food and other industries.
Specifications:
|
Model |
Inlet and outlet parameter |
Diameter of the cartridge |
Ø |
L |
L1 |
L2 |
L3 |
H |
Output power(w) |
Flow (T/h) |
|
|
mm |
in |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
(kg) |
|
|
YL-2S |
50 |
2 |
57 |
159 |
300 |
600 |
80 |
810 |
650 |
19 |
70 |
|
YL-3S |
80 |
3 |
89 |
159 |
300 |
600 |
80 |
810 |
660 |
50 |
75 |
|
YL-4S |
100 |
4 |
108 |
159 |
300 |
600 |
80 |
810 |
670 |
80 |
80 |
|
YL-5S |
125 |
5 |
133 |
219 |
350 |
600 |
80 |
820 |
680 |
125 |
90 |
|
YL-6S |
150 |
6 |
159 |
275 |
350 |
650 |
80 |
950 |
720 |
180 |
100 |
|
YL-8S |
200 |
8 |
219 |
325 |
525 |
750 |
80 |
1050 |
850 |
320 |
120 |
|
YL-10S |
250 |
10 |
273 |
377 |
650 |
850 |
80 |
1350 |
1050 |
490 |
150 |
|
YL-12S |
300 |
12 |
325 |
426 |
700 |
950 |
100 |
1740 |
1360 |
710 |
260 |
|
YL-14S |
350 |
14 |
377 |
478 |
820 |
1170 |
100 |
2350 |
1740 |
970 |
350 |
FAQ:
01. What is the capacity (m3/hour)you required for this equipment?
02. What is the material for this filter?
Carbon steel ?or stainless steel (SS304/SS316)?
03. What is the filtration degree?
100 micron or 1000 micron?
