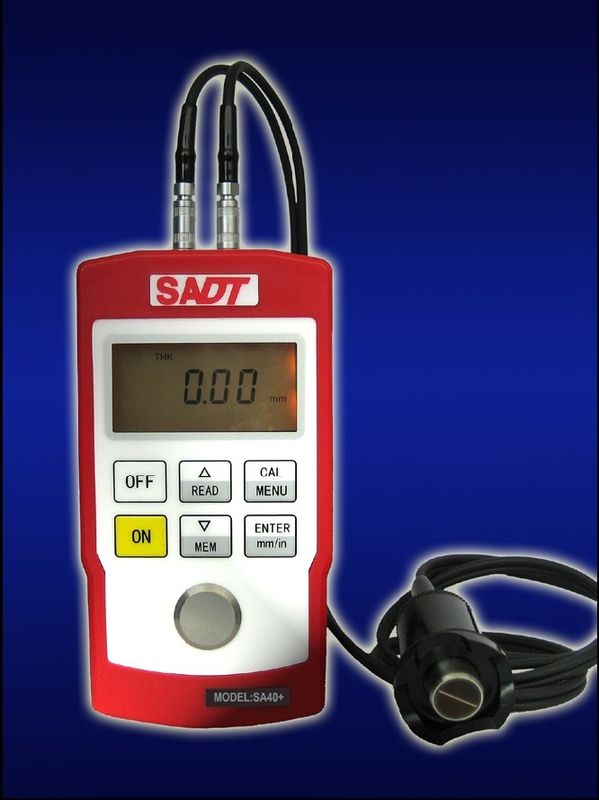

Portable Digital Ultrasonic Thickness Gauge SA40+ Micro-processored for Coating

Portable Digital Ultrasonic Thickness Gauge SA40+ Micro-processored for Coating
Portable Digital Ultrasonic Thickness Gauge SA40+ Micro-processored for Coating Portable Digital Ultrasonic Thickness Gauge SA40+ Micro-processored for Coating

Large Image :  Portable Digital Ultrasonic Thickness Gauge SA40+ Micro-processored for Coating

Product Details:
Place of Origin: Beijing
Brand Name: SADT
Certification: CE ISO9001
Model Number: SA40+
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD200-400/pcs
Packaging Details: Standard package
Delivery Time: Within one week after receipt of advanced payment
Payment Terms: T/T in advance, Western Union
Supply Ability: 50pcs/week
Detailed Product Description
Key Words: Thickness Gauge Accuracy: 0.01mm
Memory: 400 Backlight: Yes
Measuring Range: 0.70~300.0mm In Steel With PT-5 Probe (Normal Mode) 3.00~40.00mm In Steel Thickness For Coating: <1.2mm (MEC Mode) Resolution: 0.01mm@0.70~99.99mm, 0.1mm@100.0~300.0mm
Accuracy: 0.70~9.99mm ±0.05mm / 10.00~99.99mm ±(0.5%+0.01)mm 100.0~300.0 ±(1%+0.1)mm Warranty: 1 Year
High Light:

portable ultrasonic thickness gauge

,

digital ultrasonic thickness gauge

Portable Digital Ultrasonic Thickness Gauge price SA40+ Micro-processored for Coating



SA40+ thickness meter is controlled by micro-processor based on the ultrasonic measuring principle. It is able to measure the thickness and acoustic speed of various materials transmitted ultrasonic. It is designed to measure the thickness of normal metal materials and metal materials covered with coating.







Specificaiton:



Model

SA40+

Display 4 digits LCD
Backlight Yes
Measuring range 0.7.00~300.0mm in steel with standard probe (Normal mode)
3.00~20.00mm in steel
Thickness for coating: <1.2mm
(Coating mode)
Resolution 1.00~9.99mm ±0.05
10.00~99.99mm ±(0.5% H+0.01)
100.0~225.0 ±(1% H+0.1)
Unit
mm/inch
Velocity 1000~9999m/s
Coupling indicator Yes
Calibration Auto
Memory
40 data
Low battery indicator Yes
Working environment 0~40oC, 20~90%RH
Power off Auto
Power supply AA battery x 2
Net weight (g) 245
Dimension (mm) 124x67x30
Standard probe PT-5
Optional probes XT-5 / GT-5 / CT2.5



Standard package



SA40+ main unit 1
Standard 5MHz probe PT-5 with
probe holder 1
Built-in calibration block 1
Coupling paste for normal temperature 1
Test certificate 1
Operation manual 1
Carrying case 1


Optional probes for SA40+


XT-5 probe
PT-5 probe with probe holder

_01_02_03_04_05_06_07_08
