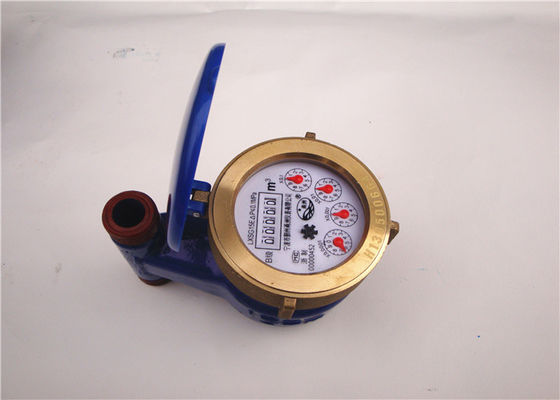

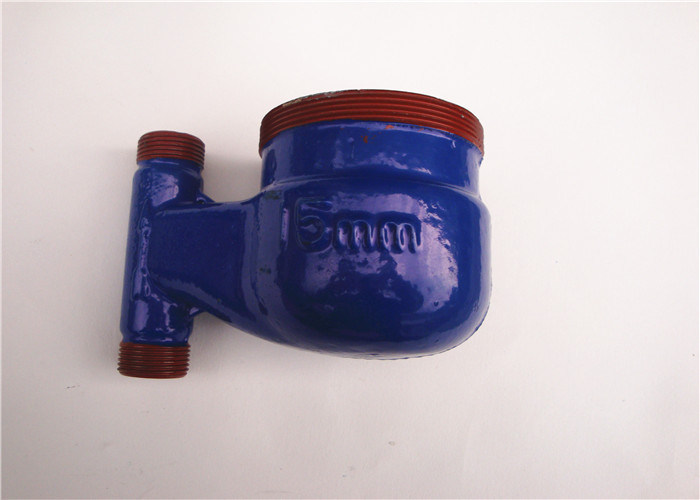

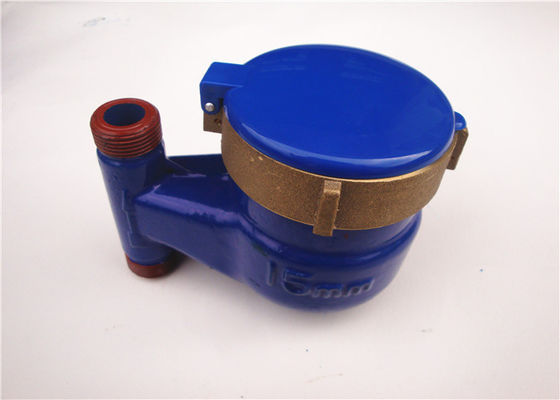

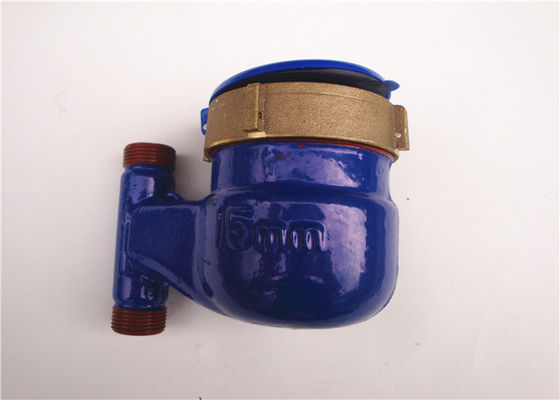

Vertical Water Meter Remote Reading

Vertical Water Meter Remote Reading
Vertical Water Meter Remote Reading Vertical Water Meter Remote Reading Vertical Water Meter Remote Reading Vertical Water Meter Remote Reading

Large Image :  Vertical Water Meter Remote Reading

Product Details:
Place of Origin: Ningbo ,China
Brand Name: Yongzhou
Certification: ISO9001:2008
Model Number: LXSL-20E
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Packaging Details: Carton box
Delivery Time: 15-30days after receiving deposit
Payment Terms: T/T , L C, West union,etc.
Supply Ability: 100000 pcs/month
Detailed Product Description
Model NO: LXSL-15E Application: Household
Feature: Remote Reading Material: Brass|Iron
Product Name: Vertical Water Meter Standard: ISO 4064|Class B
Type: Multi Jet Water Type: Cold
High Light:

water velocity meter

,

turbine water meter



DN15mm Cold Vertical Water Meter Remote Reading With ISO 4064 Class B


Quick Detail:

1. Type name: Multi-jet
2. Model No.: LXSL-15E
3. Standard :ISO 4064 Class B
4. Wet-dial,dry-dial or liquid sealed for option
5. Vertical installation
6. Iron or brass material


Description:

Vertical Type Cold Water Meter DN15mm
Product features:
Multi-jet ,
Wet-dial ,dry-dial or liquid sealed type for option
Selected high quality materials for steady and reliable characteristic
Installed in vertical pipeline and is suitable for household as branch meter and easy for installation
Universal use and good looking


Installation requirements:


  1. Meter should be installed in vertical position with the register face upwards
  2. Pipe line must be flushed before installation
  3. The meter should be constantly full of water during operation



Main Technical data


Meter Size  DN (mm)



Class


Qs
Overload
Flow

Qp
Nominal
Flow

Qt
Transitional
Flow

Qmin
Min
Flow

Starting
Flow

Min
Reading

Max
Reading

m³/h

      L/h

15

  B

    3

  1.5

120

30

8

0.0001

99999

20

  B

    5

  2.5

   200

 50

  10

0.0001

99999



Maximum permissible error:

In the lower zone from Qmin inclusive up to but excluding Qt is ±5%
In the upper zone from Qt inclusive up to and including Qs is ±2%


Working Condition:

Water temperature:0℃≤t≤50℃ (For cold water meter)
Water pressure: ≤10bar (16bar on request)


Competitive Advantage:

 Reasonable price with good quality
 Long time guarantee
 100% tested
 On time delivery
