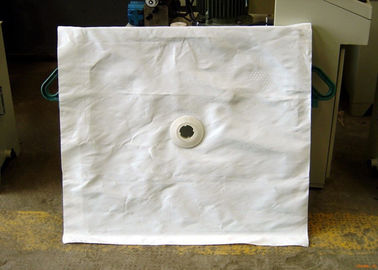

Micron Industrial Woven Filter press fabric cloth for sludge dewatering

Micron Industrial Woven Filter press fabric cloth for sludge dewatering
Micron Industrial Woven Filter press fabric cloth for sludge dewatering Micron Industrial Woven Filter press fabric cloth for sludge dewatering Micron Industrial Woven Filter press fabric cloth for sludge dewatering

Large Image :  Micron Industrial Woven Filter press fabric cloth for sludge dewatering

Product Details:
Place of Origin: China
Brand Name: Philis
Certification: ISO
Model Number: filter press cloth
Payment & Shipping Terms:
Minimum Order Quantity: 100m
Price: Negotiable
Packaging Details: standard export package
Delivery Time: within 10 days
Payment Terms: T/T
Supply Ability: 10000pcs per week
Detailed Product Description
Usage:: Liquid Filter Material:: PP, Polypropylene Fiber, Polyester
Weight:: 389.4g/m2 Certification:: ISO9001
Weave:: Twill Delivery Time:: Normally 15 Days
High Light:

filter cloth for filter press

,

Non woven filter fabric

Micron Industrial Woven Filter press fabric cloth for sludge dewatering



Quick Detail:



a. Materials used: polypropylene


b. working temperature: normal working temperature88celsius degree, 110celsius degree peak working temperature.


c. Weight standard:600g/m2, 650g/m2, 700g/m2, 800g/m2.etc. Completely dominated by customers.





Packaging & Delivery

Packaging Details:

Polypropylene fabric for filter press cloth
1.plastic bag as first layer,then carton box or woove bag
2.OEM packing and customised design are acceptable



Delivery Detail:

Normally 15 days after receipt of deposit





Specifications:



Model material

Weight

(g/m2)

Thickness

(mm)

Air permeability

(l/m2.s)

Breaking strength

(N/5x20CM)

Elongation

(%)

Density

(pcs/10cm)

weave
warp weft warp weft Peak. Cont.
PP 750A PP 450 0.79 26 3104 2663 38 30 222 154 PLAIN
PP 750B PP 517 1.27 30 2608 2050 35 28 256 151 TWILL
PP 750BB PP 740 1.40 8 10115 3030 35 30 582 110 SATIN
PP 750AB PP 650 1.30 20 7800 5200 26 20 450 170 TWILL
PP 4212 PP 380 1.07 123 2972 1942 24 37 236 123 TWILL
PE 8222 PE 700 1.5 8 720 450         TWILL



P0802Y zinc oxide (needle felt)
T0803t potash fertilizer (needle felt)
P120D/P050D/P080D/P020MD double layer monofilament filter cloth
P050D, P030MD, P020MD FGD, Gypsum
N9029 iron ore concentrate
N199 iron ore concentrate
P1010 iron ore concentrae
P020MD iron ore concentrate
9501-32 fly ash, coal ash
9501-35 fly ash
9501-34 zinc oxide
P1010sdy zinc sulfate
PT9502b-41DY gold mining,vanadium mine
9502-40 borax, vanadium pentoxide
PT9502b-31 gold
P750AB copper
P120/P190 phosphate
MP11343Y copper
9502-402DY iron sulfide
9503-32 catalyst
P190 Beer filtration
P199s/P11636: Sugar filtration
N120B Palm oil filtration, other oil, use anti-static filter cloth
P1010-37DY Titanium Dioxide
3233SY White carbon black
3233SY/108C/P801IIy Kaolin
T3112BY/3233SYY

pigment, dyestuff





Material available:



PET, PP, PA6, PA66 in monofilament, multifilament fabric, interwoven filter yarn

Benefits:

High dimensional stability,

Good abrasion performance,

Wide range of filter rate

Efficient fabric cleaning





Applications:



Filter press, centrifuge, leaf filter, fluide bed dryer, Rotary/horizontal disc filter



Chemical:



Catalyst, cobalt carbonate, zinc oxide, zirconium carbonate, activated carbon, cobalt carbonate, borate, dyes and intermediates, iron oxide, nickle, salt, aluminum oxide, titanium dioxide, additives, glycerol, pesticides, white carbon black, zinc, calcium carbonate, etc.



Mining:



Red mud, tailings gold, potash fertilizer, vanadium ore, the end of coal, clean coal, clay, Kaolin clay, etc.



Metallurgical:



Gold, molybdenum, lead, vanadium, nickel, zinc, copper, tungsten, carbide slag, etc.



Food:



Fruite juice, suger, starch, sweetener, beer, etc.



Environmental protection:



Sewage treatment, slude dewatering, flue gas desulphurization, salt mud, fly ash, etc.



Micron Industrial Woven Filter press fabric cloth for sludge dewatering 0Micron Industrial Woven Filter press fabric cloth for sludge dewatering 1Micron Industrial Woven Filter press fabric cloth for sludge dewatering 2





FAQ



1.What is your time of making samples?

Usually we will take around 3-5 days to make the samples.



2.What is your MOQ?

Our MOQ is usually 1 carton.



3.What is your delivery time?

The time of delivery is about 7-15 days.



4.What is the loading port?

Ningbo/Shanghai



5.What is your payment terms? (Total amount > USD$10,000)

We accept 30% T/T in advance,70% before shipment.



6.What is the location of your company?

Our company is located in Zhejiang.



7. How about the samples?

We could send you the samples but the samples are charged.After the order is

confirmed, we would pay back the sample fee. Please be rest assured of that.

Essentially we sometimes send the samples for free.
