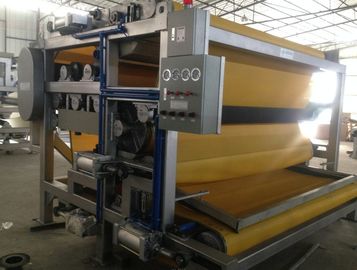

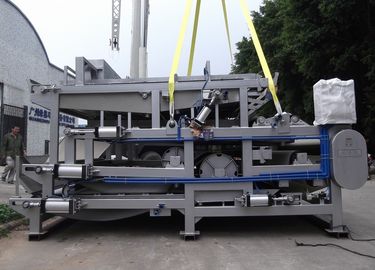

Large Capacity Sludge Dewatering Belt Press Machine For Industry

Description

Best Creative solid and liquid dewatering and separation solutions offers a range of Belt Presses from 500 mm wide to 3000 mm. The Belt Presses feature rotary drum thickeners or gravity deck thickening. The heavy duty design makes our belt presses a reliable and long lasting machine.

Best Creative series Belt Filter Press can be generally divided into two types: Environmental sludge dewatering belt press and Squeezing Type dewatering belt press. Sludge dewatering press is one of the most efficient dewatering units which can be applied through organic and inorganic sludge to achieve required results at minimum operating cost, mostly used to dewater all kinds waste water sludge.

Squeezing Type dewatering press is the world newly dewatering equipment specially developed in light of actual need of materials with fiber dewatering through our many years research and testing. It is the best choice for dewatering of by-product spent grain such as barley, corn, wheat, rice, cassava sludge, paper pulp, and food industry. Al Best Creative belt filter presses are designed for highly efficient, reliable and simple liquid/solid separation, providing low capital, operating and maintenance costs

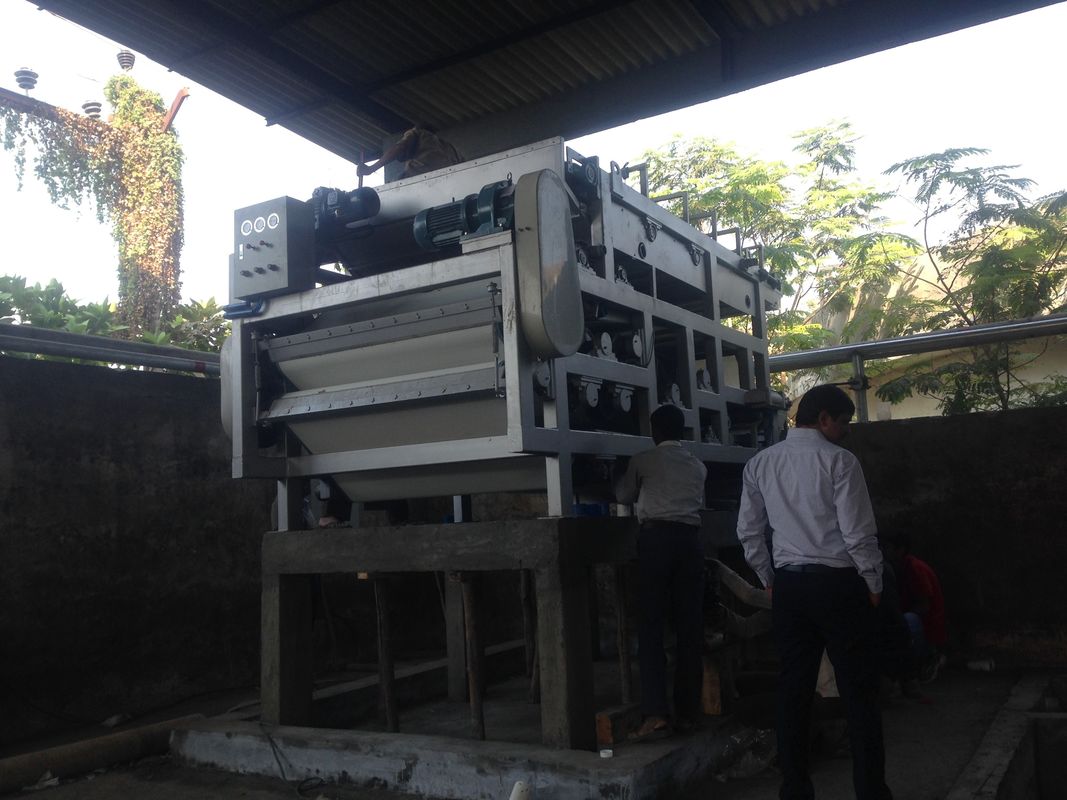

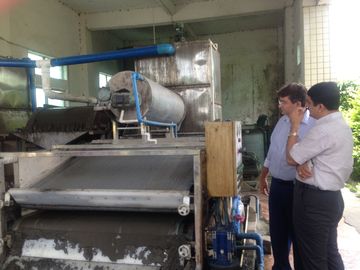

Best Creative belt press have been used in many countries with great success in a wide variety of applications - from industrial and municipal water & waste water treatment to food processing, ethanol applications and refineries.

Features include:

• Stainless steel or mild steel construction
• Continuous and fully automatic operation
• Hydraulic or pneumatic drive and positioning systems available
• Open design for ease of maintenance
• High dewatering performance due to efficient roller arrangement
• High quality bearings with airproof bearing seats
• Various levels of automation available
• BCP belt presses can also be supplied with a range of additional equipment, including:
• pH control systems
• Chemical dosing systems
• Chemical mixing systems
• Flocculant injection systems
• Sludge conveying systems
• Sludge conditioning equipment

Working principle:

After mixing with the prepared flocculation in the dynamic and static mixer, the small particles solids in the concentrated sludge would form bigger size of flocculated sludge and the free water is separated. Flocculated sludge is conveyed to the belt then it further goes to the gravity dewatering area. Under the gravity, free water would fall on the tray, and the rest sludge would be nipped between two belts. Then it would further goes to the wedge zone for pre-filtration, and then to low pressure zone and high pressure zone through the decreasing diameter rolls. Under the extrusion and shearing force, the solid and liquid is separated. Finally filter cake with expected low moisture content is discharged.

Belt width 2 meter to 3 meter dewatering machine with thickner Continuous production, reduce water, power,labor consumption.Easy maintainance.
