|Power Supply:||9 ~ 28V DC||Output Signal:||4 To 20mA+HART|
|Range:||40mm ~4000mm||Probe Diameter:||Φ12mm|
|Operating Pressure:||≤5.0MPa||Medium Temperature:||-40°C ~ +160°C|

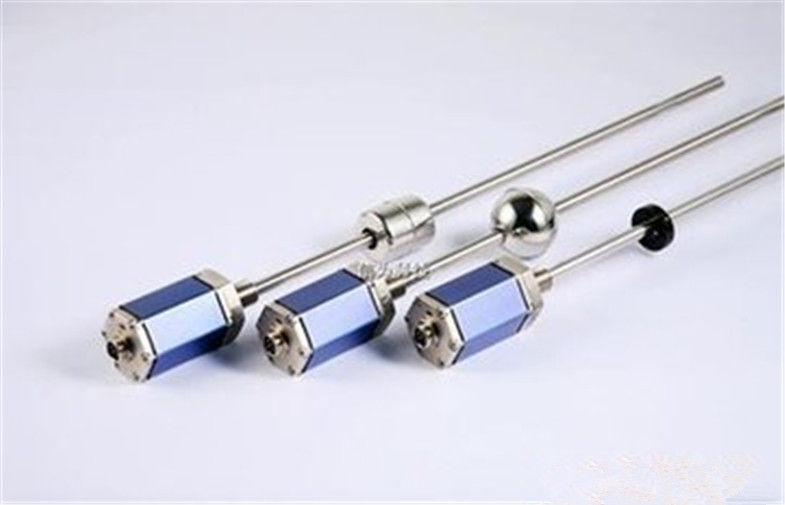

Two wire liquid level transmitter with magnetostrictive for oil storage tanks
The magnetostrictive level transmitters is designed according to the magnetostrictive principle, which is a highly accurate, respond fast, good reliability, long life, smart structure level measuring instrument.
Magnetostrictive level transmitter adopts two-wire system 4-20mA with HART for level measuring, which is widely used in the applications of petroleum, chemical, food , metallurgy and so on .
The sensor of the magnetostriction liquid level meter is designed based on magnetostriction principle.it consists of sensitive waveguide wire,waveguide tube,moveable magnet and the electronic parts that emit electric pulse signal and receive the returned signal. When the electric pulse generated by pulse micro wave generator in electric probe transmit along the waveguide wire in the steel tube,electric pulse generated a toroidal magnetic field vertical to waveguide wire that transmit at the speed of light through waveguide wire.when the pulse toroidal magnetic field meets the inspection magnetic field,the two magnetic fields vectors overlays to create spiral magnetic field,generate instant twisting force and mechanical twisting force wave in the waveguide wire.the twisting force wave return to electric probe at the speed of light,make the two ends of coil create pulse induction. To measure the time difference between the pulse induction generated by the return of electric pulse and twisting force wave can precisely calculate the measured liquid hight.at same time,put the temperature sensor into the tube to measure the medium temperature.
we have over 7 years experience in this line, Our daily output of radar level meter and ultrasonic level meter products reaches 10 sets. Our high quality product and good service have led us keep long good business relationship with many famous enterprises domestic and overseas.
Believe you will be satisfied with our product and service if you place a trial order with us. Looking forward to establishing cooperation relationship with your esteemed company.
1).Large oil storage tanks
2).Crude oil storage tanks
3).tanker oil theft prevention
4).Level control requires proof of fire
Standard type:2-wire4-20mA(HART protocol can be selected.)
Digital type:ModBus, Profibus, multi-parameter( level, interface,
temperature ( up to 5 points)
Liquid level measurement
|Liquid level, interface, liquid level+ interface|
|Measurement range||0. 50m to 22m|
|Accuracy||The maximum between 0. 01 %F. S. and +0. 5mm|
|Temperature output||Up to 5 single points temperature|
|Temperature range||-50 ~ +200℃|
|Temperature accuracy||± 0. 25 °C|
|Output signal||4-20mA ,ModBus, Profibus|
|Ambient humidity||0-100% R.H.(not frost)|
|Working temperature||Electronic unit:-4 0 ~ +80 °C ;waveguide:-40 ~ +125 °C|
|Operating pressure||Rely on the pressure the float can withstand|
|Electronic Cabin||Cast aluminum/304 stainless steel|
|Probe material||304/316L /304+PTFE or FEP|
|Process connection||Thread or flange connection|
|Electrical interface||1/2” NPT thread|
1).Zero and full scale field adjustable (optional)
2).Structure and reliable: IP67 rating, Exd II CT6 flameproof certification
3).Convenient debugging, debugging software
4).Multiple output model electric current, voltage, SSI, Profibus
5).Non-contact measurement, zero maintenance
