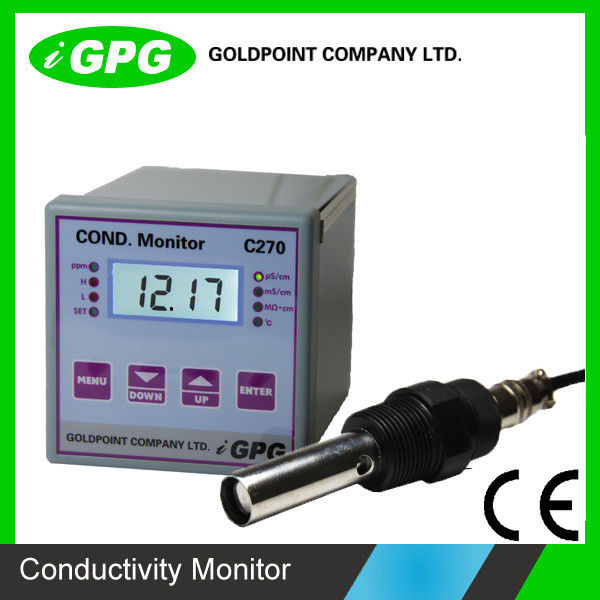

Online Conductivity/Resistivity/TDS controller C270is a panel instrument for on-line monitoring of industrial process conductivity. Range switch over and constant check can both be freely set and adjusted through the operation component on the rear panel; unique signal collecting and processing technology and special thick film circuit are adopted to make measurement accurate and operation stable; there are also other features such as linearized data, automatic temperature compensation, not subject to the length change of cable and maintenance-free. It has control function, including setting of over limit of conductivity, and the outputs are control contacts. It's an ideal auxiliary instrument of various types of small pure water equipment.
| ■4 LCD digital with back-lit display |
| ■Measure process Conductivity, Resistivity, TDS, Temperature |
| ■0 ~ 100℃ automatic/manual temperature compensation |
| ■Manual or Automatic buffer adjustment |
| ■Restore factory setting function is available |
| ■Galvanic separation between inputs and outputs and supply voltage |
| ■High and low programmable alarm, 250V/10A relay output |
| ■Adaptation Sensor：CON0.01，CON0.1，CON1.0，CON10，CON30 |
| ■On-Line HELP with Text Error Messages |
| Technical Parameter | |
| ■Display type: | LCD |
| ■Measurement Range: | 0~ 18MΩ.cm or 0~19.99uS/cm |
| 0~999.9uS/cm | |
| 0~9999uS/cm | |
| 0~100mS/cm | |
| 0~300mS/cm(Optional) | |
| 0~9999ppm | |
| 0 to 100 °C | |
| ■Resolution: | 0.01 MΩ |
| 0.01uS/cm to 0.1 mS/cm | |
| 1ppm | |
| 0.1°C | |
| ■Accuracy: | ±1%F.S |
| ± 0.2°C | |
| ■Temperature:Compensation: | Automatic / manual |
| ■Output Relays: | 2 programmable |
| Control type: On/off | |
| Relay set point hysteresis:User programmable | |
| ■Current Output: | Type: Isolated 4 to 20 mA |
| Range: Selectable zero, & span | |
| Accuracy: ±0.02mA | |
| Maximum load: 750Ω | |
| ■Power supply: | AC110V~220V±10% 50/60Hz |
| ■Weight: | 500 grams |
| ■Dimensions: | 96×96×110mm |
| ■Mount type: | Panel |
| ■Cut-out size: | 92×92mm |
| ■Protection Degree: | IP54 |
| ■Environmental: | Operating ambient temperature: -10 to +55 °C |
| ■Requirements: | Relative humidity：5% to 95% noncondensing |
| Maximum operating altitude: 10,000 feet (3000 m) | |
