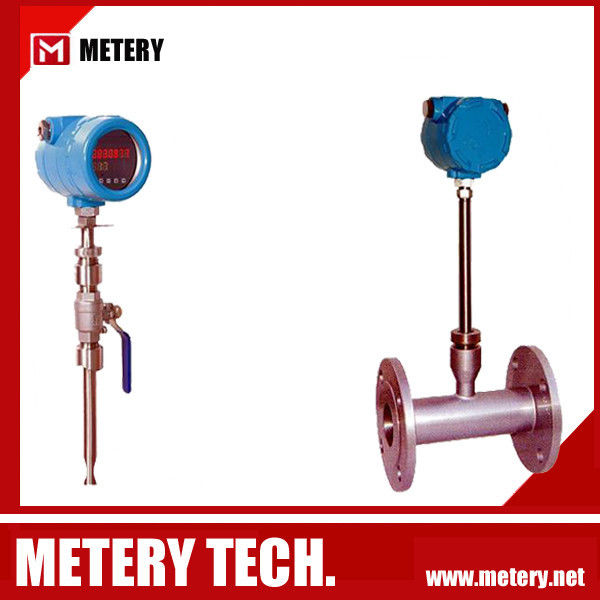

Thermal gas air mass flow meter MT100M

Thermal gas air mass flow meter MT100M
Thermal gas air mass flow meter MT100M

Large Image :  Thermal gas air mass flow meter MT100M

Product Details:
Place of Origin: Dalian China
Brand Name: Metery
Certification: ISO CE
Model Number: MT100M
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton
Delivery Time: 3-5 days
Payment Terms: T/T Western Union MoneyGram
Supply Ability: 200 sets/month
Detailed Product Description



Product Description

Main parameter:



                   Thermal gas Air flow meter



Thermal gas air mass flow meter MT100M 0

Thermal gas air mass flow meter MT100M 1



The products are serial mass flow. meters,Products size is: DN6, DN10, DN15, DN25, DN40, DN50, DN80 ,and DN100 (units: mm).

Specifications.

Environmental Specifications

Medium

Liquid (include slurry, mixed with solid and so on).

Temperature of environment

0+40

Temperature of medium

-60+200.

Density of medium

0.3 g/cm 33.0g/cm3
Density accuracy ±0.002g/cm3

Pressure on operation

≤4.0Mpa

Atmospheric pressure

86106 Kpa

Humidity of environment

≤90% RH



Sensor of Mass Flow Meter

Type

XYK

Precision grade

0.2

Material of inner tube

316L stainless steel

Join form

Flange or screw.

Explosion proof identification code

Exib[ib]IIBT4 or Exdib[ib]IIBT4.



Transmitter of Mass Flow Meter

Type

XYK-T

Output signal

420mA, 010KHz, RS-485

Power supply.

DC24V or AC220V±10%/50Hz±5%,
Power consumed <15W

Form of Explosion-proof .

Essential safety or Composite

Display

Instant flow and gross, temperature,
density or concentration and so on.

Batch Control relay.

Contactor capacity: 24V/0.1A
Contactor form: normal open ( would be changed
to normal close while special order)





Product advantage

1)         Using the world's most advanced second generation transmitter technology - DSP technology, higher precision, wider range, more simple structure, more stable operation.

2)         Measurement of high pressure gas (such as CNG compressed natural gas (LNG), low temperature liquids such as liquefied natural gas, liquid nitrogen).

3)         Using high-precision processing technology, ensure the sensor quality, zero stability.

4)         Using digital signal processing (DSP) technology, metering system host through the 485

communication, the relevant parameters, to obtain the required such as: mass flow, volume flow rate,temperature, density, the state information.

5)         Through the debugging software or manual debugging device can read the fault code, solving the problem of inconvenient meter using the staff more comprehensive, troubleshooting

6)         Support the standard industrial control communication protocol ModbusRTU, easy configuration and use.

7)         According to user needs, mass flowmeter in design and manufacture of special specifications and has special function, tailored to the user.



 Measuring principle



1)     The principle of measuring flow based on rule of Coriolis Motion.

2)     After transmitter connecting with sensor, time difference was measured by signal of velocity sensor, then calculate mass flow value by mass circulation calibration coefficient.

3)     Transmitter is used to make stream tube resonant, measure mass and density parameters .etc according resonance frequency.



Temperature specification in hazardous zone



Temperature Grade

The Temperature Of Medium

Ambient Temperature

T5

-40ºC~+70ºC

-25ºC~+55ºC

The Coriolis Mass Flow Meter could be installed indoor or outdoor.

 Do not exceed the max pressure indicated on nameplate.

Installation Mode



Model



Measurement for gas



Measurement for liquid



AMF015-25



Horizontal upward/ Vertical



Horizontal downward/ Vertical

Workshop and warehouse

Thermal gas air mass flow meter MT100M 2



Sold mass flow meter coriolis sanitary type

Thermal gas air mass flow meter MT100M 3





Thermal gas air mass flow meter MT100M 4

Installation diagram

Thermal gas air mass flow meter MT100M 5



International Certificates

Thermal gas air mass flow meter MT100M 6



 Thermal gas air mass flow meter MT100M 7
Our Services


           For on-site services not arising from manufacturing quality, we shall charge a certain service fee at our discretion based on actual charges incurred such as travel expense;



          We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.





Email:info(AT)metery.net
Cellphone: +86 18841127006
Skpye: meterytech
LINE: meterytech
Whatsapp: +86 18841127006
Wechat: kai123263788
QQ: 123263788

Metery Technology Co., Ltd ( Dalian. China )

www.metery.net
www.metery-tech.com
www.metery.en.alibaba.com


To World, METERY is Just A Company, But to METERY, You Are The World...
