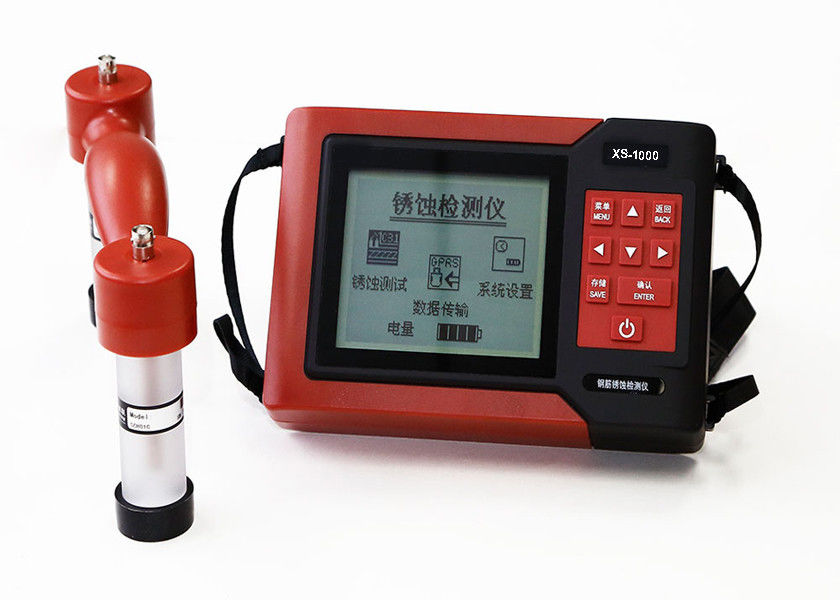

Concret Rebar corrosion detector

Large Image : Concret Rebar corrosion detector

Product Details:

Place of Origin:	China
Brand Name:	SRI
Certification:	ISO9001:2008
Model Number:	XS-1000

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	2000-2500USD
Packaging Details:	Standard exporting package
Delivery Time:	5 working days after received your payment
Payment Terms:	T/T, Paypal
Supply Ability:	100sets/month

Contact Now

Detailed Product Description

Warranty Period:	24months	Test Potential Range:	±1000mV
Test Accuracy:	±0.1mv	Continuous Working Time:	40hrs
Screen Resolution:	160×128	Standards:	JGJ/T152-2008
High Light:	NDT Testing Equipment , non destructive testing instruments

Rebar corrosion detector, Rebar detection equipment, Non-destructive testing equipment

Description

The rebar corrosion detector is used to detect the rebar inside the concrete corrosion condition, this rebar detector adopts self potential method to test. It's kind of common Non-destructive testing equipment in engineering inspection.

Technical specifications

Term	Technical spec.	Term	Technical spec.
Measuring potential	±1000mV	Power mode	38 hours continuous working time
Measuring accuracy	0.1mV	Display	160×128 LCD
Data storage	Storage 234 points( max for 68 parts)	Main machine size	212mm×134mm×50mm
Point distance set	1~100cm selectable	Electrode size	φ30mm×180mm
Measuring area	234m²(point distance 100cm)	Main machine weight	0.9kg
