Precision Non Destructive testing equipment Rebar Detector Construction

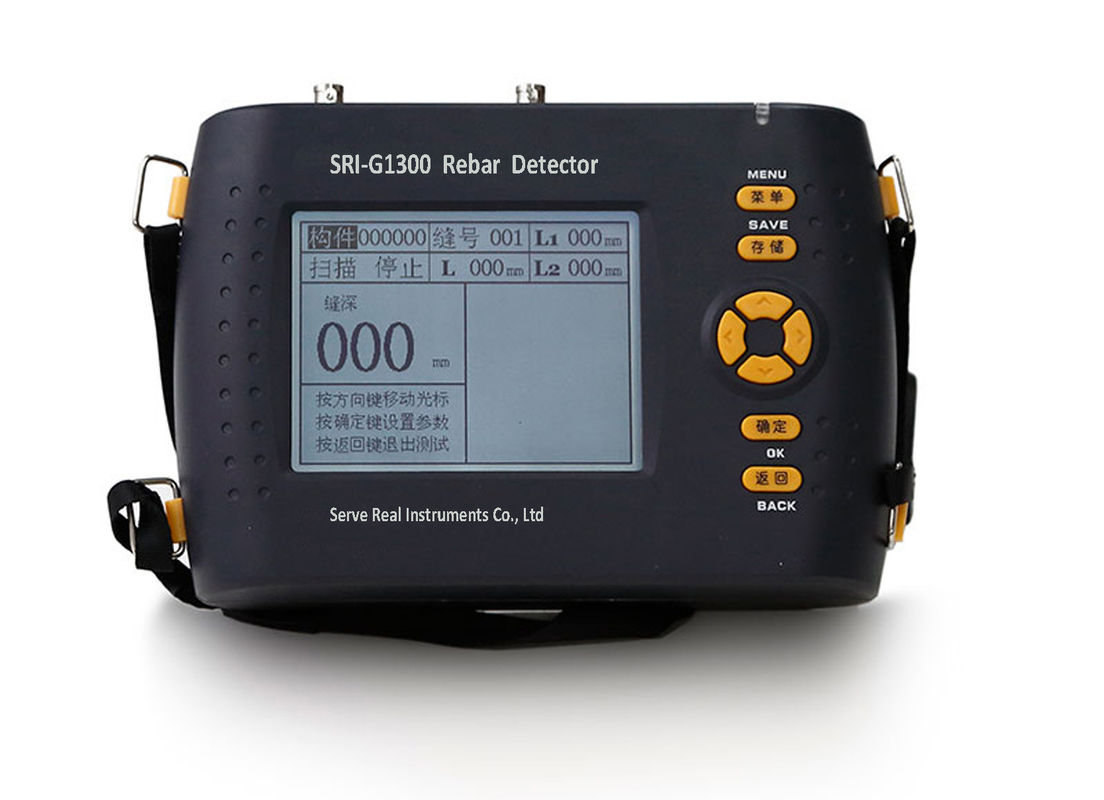

Large Image : Precision Non Destructive testing equipment Rebar Detector Construction

Product Details:

Place of Origin:	China
Brand Name:	SRI
Certification:	ISO9001:2008
Model Number:	RL50

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	1500USD
Packaging Details:	Standard exporting package
Delivery Time:	5 working days after received your payment
Payment Terms:	T/T, Paypal, Western Union
Supply Ability:	200sets/month

Contact Now

Detailed Product Description

Warranty Period:	12months	Protection Thickness Range:	6-180mm
Screen:	LCD	Data Transmission:	USB
Rebar Diameter:	6-50mm	Power Supply:	Li On Battery
Rebar Dia. Accuracy:	±1%	Packing Weight:	8kg
High Light:	NDT Testing Equipment , non destructive testing instruments

Rebar detector, Rebar locator, Rebar cover meter, Rebar protective layer thickness tester, Construction Non destructive testing equipment

Description

The Rebar locator is used to perform the rebar inspection inside the concrete building, it can test the diameter, position, distribution and concrete protection layer thickness. Powerful Windows software built-in, 6 kinds of inspection report can be generated.

Standards compliance: JGJ/T 152-2008

Features

Signal multifunctional probe, no need probe change

Backlight LCD display

Easy connect with computer

Work Environment requirements

No strong alternative magnetic field
No corrosion gas
No strong vibration and impact
No direct sunlight

Technical specifications

Rebar diameter range	Dia. 6-50mm
Max allowed error	±1%
Protection layer thickness	1^st degree	6-90mm
	2^nd degree	7-180mm
Protection layer thickness Max allowed error	6-59mm, 7-79mm	±1mm
	60-69mm,80-119mm	±2mm
	70-90mm, 120-180mm	±4mm
Working ambient requirements	-10-40 degree C
Relative humidity	<90RH
Power supply	7.4V,2000mAh
