10-100T Digital Anchor Pull Out Test Equipment Civil Engineering Testing Machine

10-100T Digital Anchor Pull Out Test Equipment Civil Engineering Testing Machine
10-100T Digital Anchor Pull Out Test Equipment Civil Engineering Testing Machine 10-100T Digital Anchor Pull Out Test Equipment Civil Engineering Testing Machine

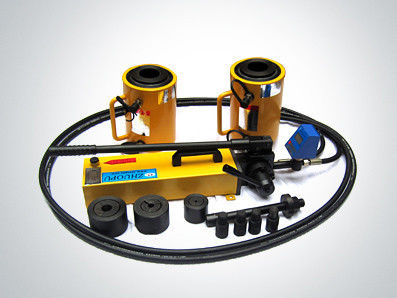

Large Image :  10-100T Digital Anchor Pull Out Test Equipment Civil Engineering Testing Machine

Product Details:
Place of Origin: China
Brand Name: SRI
Certification: ISO9001:2008
Model Number: ML
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 1200-2000USD
Packaging Details: Standard exporting package
Delivery Time: 5 working days after received your payment
Payment Terms: T/T, Paypal
Supply Ability: 100sets/month
Detailed Product Description
Warranty Period: 12months Test Range: 100KN-1000KN( Or Tailor Made)
Power: Hydraulic Display: Digital
High Light:

NDT Testing Equipment

,

non destructive testing instruments



Anchor pull out tester, Anchorage force test apparatus, Engineering Non destructive Testing equipment





Applications



Pull out resistance test of anchor bolt, anchor cable, steel bar, expansion bolt, chemical anchor bolt, anchoring parts, also can test the glass curtain wall field pull out resistance, it’s kind of common civil engineering testing equipment.



Features



1. High quality steel cast body, quickreset, overload protection, digital readout, Dust-proof, Peak value keep

2. Dust-proof system and high quality sealing ring with hydraulic cylinder guarantee long tooling life Suitable for laboratory and field use

3. Hydraulic cylinder:

10T-30T: manual reset;

50T-100T: Self-reset, can equip electric pump



Technical specifications



Model

Oil cylinder center hole

Oil tank travel

Testing range

weight

Normal anchorage device

rod

Conversation connector

ML-10T

27mm

60mm

0-100kn

6Kg

Φ6-20

M18

M6-20

ML-20T

34mm

80mm

0-200kn

13Kg

Φ6-25

M22

M6-24

ML-30T

45mm

80mm

0-300kn

15Kg

Φ6-32

M24

M6-27

ML-50T

60mm

120mm

0-500kn

25Kg

Φ6-32

M30

M6-39

ML-100T

90mm

150mm

0-1000kn

58Kg

Φ6-40

M40

M6-39



Standard configuration



1. Manual pump

2. Hydraulic cylinder

3. Digital pressure gauge

4. 3m quick coupling high pressure oil pipe



Optional parts



1. Anchorage device

2. Conversation head pull rod)

3. Carrying case
