Non Destructive Testing Equipment Floorslab / Nonmetal Board Thickness Gauge

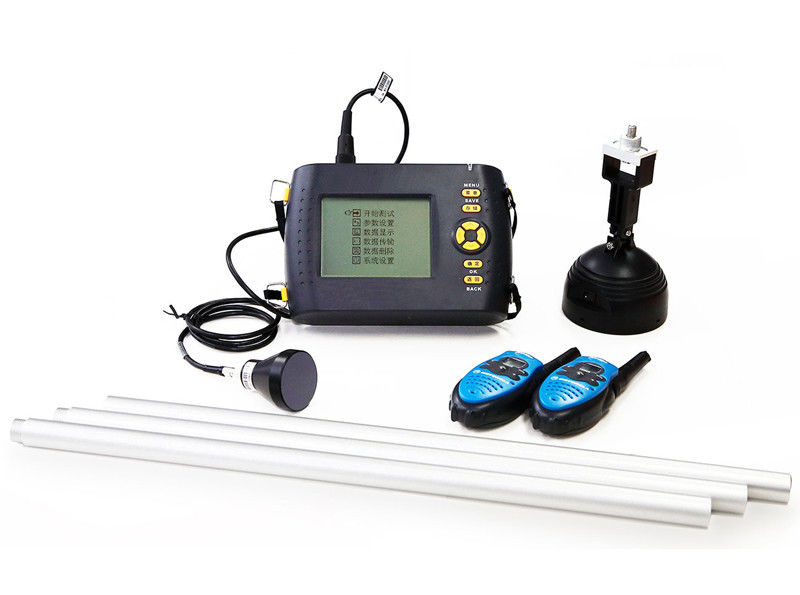

Large Image : Non Destructive Testing Equipment Floorslab / Nonmetal Board Thickness Gauge

Product Details:

Place of Origin:	China
Brand Name:	SRI
Certification:	ISO9001:2008
Model Number:	CDI-T1000

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	2000USD
Packaging Details:	Standard exporting package
Delivery Time:	10 working days after received your payment
Payment Terms:	T/T, Paypal
Supply Ability:	100sets/month

Contact Now

Detailed Product Description

Warranty Period:

24months

Standards:

GB 20204-2002

Thickness Range:

50mm~560mm

Display:

320×240,5.1inch LCD

High Light:

NDT Testing Equipment

ndt instruments

Nonmetal board thickness gauge, Non destructive equipment, Floorslab thickness detector, Non destructive equipment

Description

This nonmetal board thickness gauge is used to test the thickness of non-metal board such as floorslab, concrete, rock, glass board, it’s features portable, easy use, it's kind of common engineering non destructive testing equipment.

Features

High sensitivity receiving system

320×240 high resolution, 5.1 inch large screen

Double-side non destructive detection, no need for coupling agent Non Destructive Testing Equipment Floorslab / Nonmetal Board Thickness Gauge 0

Real-time test data indication

Flexible extension rod

Test data automatic storage

USB interface for rapid data transmission

Powerful analysis software

Rechargeable battery for more than 6hrs continuous operation

Non Destructive Testing Equipment Floorslab / Nonmetal Board Thickness Gauge 1

Extension rod

Detection principle

Technical specifications

Term		Spec.	Term		Spec.
Test range		50mm~560mm	Data storage capacity		200 engineering or 14500 test points
test accuracy	±1mm	50mm~350mm	resolution		320×240, 5.1 Inch display
test accuracy	±2mm	351mm~560mm	battery		Built-in battery
main machine	size	190mm×135mm×52mm	Power supply time	main machine	approx. 6.5 hours
main machine	weight	0.74kg (including battery)	Power supply time	Transmitting probe	approx. 7 hours
Receiving probe	size	Ø50mm×55mm	Transmitting probe	size	Ø100mm×165mm
Receiving probe	weight	0.06kg	Transmitting probe	weight	0.36kg
