PC Digital Ultrasonic Flaw Detector Automated Display With Big Memory

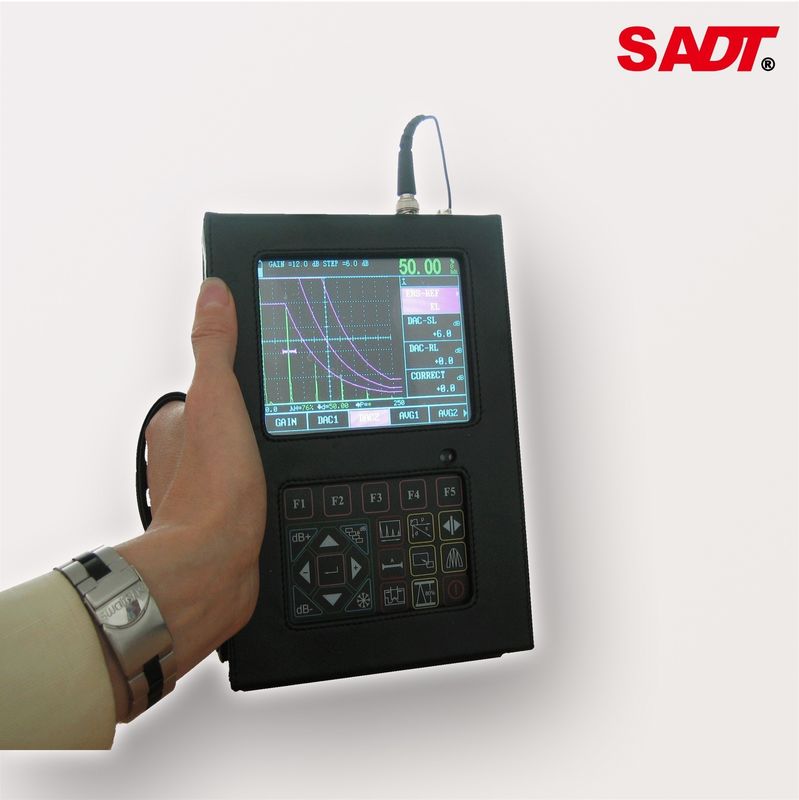

PC Digital Ultrasonic Flaw Detector SUD20 Automated Display With Big Memory

Introduction

SUD series ultrasonic flaw detectors are portable, microprocessor-based instruments that are suitable for both shop and field use. They are integrated with international advanced digital integration and new EL display technology, are smart Digital Ultrasonic Flaw Detector propelled by SADT. SUD series flaw detectors have almost all functions to meet requirements of professional application for nondestructive testing.

SUD20 and SUD50 are more portable models.

Key Features

• Automated gain and gain scan;
• Peak Hold and Peak Memory;
• DAC, AVG, B scan, AWS
• TCG curve
• High-speed capture and very low noise
• Automated make video of test process and play. Use USB flash disk, the length of video is unlimited.
• High contrast viewing of the waveform from bright, direct sunlight to complete darkness and easy to read from all angles
• Automated display precise flaw location(Depth d, level p, distance s, amplitude, sz dB, Ø);
• Automated switch three staff gauge (Depth d, level p, distance s);
• Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity ;
• Convenient to make and use DAC/TCG and AVG to evaluate the echo, the curve can be modified and compensated
• 6dB DAC functions;
• 100 independence setup, any criterion can be input freely, we can work in the scene without test block;
• Big memory of 1000 A graph
• Big memory of 300 A graph and 30000 thickness values
• Li battery, continue working time up to 10 hours;
• The embedded software can be online updated;
• Display freeze;
• Automated echo degree;
• Angles and K-value;
• Lock and unlock function of system parameters;
• Electronic clock calendar ;
• Two gates setting and alarm indication;
• Gate and DAC alarm;
• Automated measurement of nodularity and vermicularity
• RS232/USB port, Communication with PC is easy
• Powerful pc software and reports can be export to excel
• Pulse parameteres can be adjusted
• Dormancy and screen savers
• Solid metal housing (IP65)

Specifications

Company Profile

Sino Age Development Technology, Ltd.(SADT), established in 1993, is a leading manufacturer/supplier of ing and testing instrument, specialized in NDT and quality control fields. We have our own HARTIP series portable hardness testers since 1995. Now our main products cover portable and bench type hardness tester, ultrasonic thickness gauge, roughness tester, handheld metallurgical microscope, portable vibration meter, optical tachometer, ultrasonic flaw detector and so on. Our main overseas markets are: Italy, Germany, Netherlands, Turkey, France, Cezch Republic, Korea, Singapore, India, Iran, South Africa, USA, Canada, Mexico and Columbia and etc. All Products supplied by SADT have excellent quality and competitive price with our best service.
