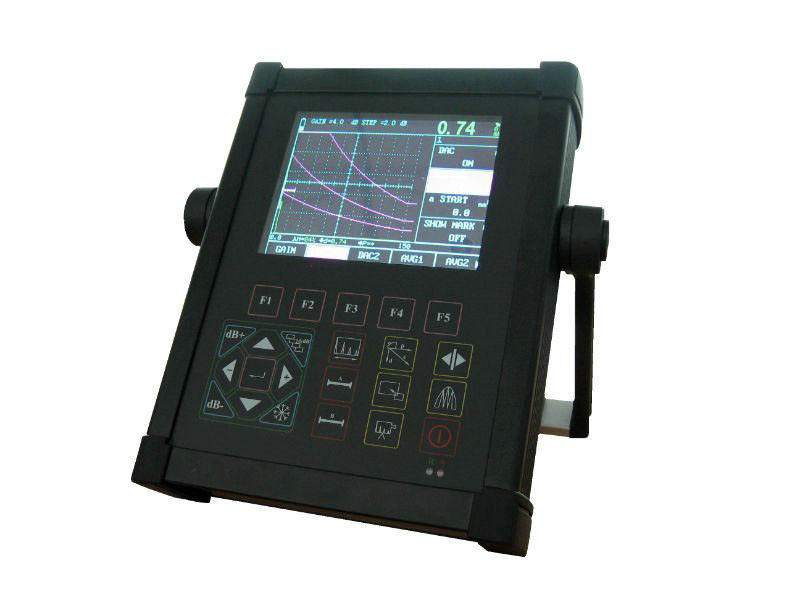

Digital Portable Ultrasonic Flaw Detector SUD10

Digital Portable Ultrasonic Flaw Detector SUD10
Digital Portable Ultrasonic Flaw Detector SUD10

Large Image :  Digital Portable Ultrasonic Flaw Detector SUD10

Product Details:
Place of Origin: China
Brand Name: China Coal
Model Number: Digital Portable Ultrasonic Flaw Detector SUD10
Detailed Product Description
High Light:

Digital Portable Ultrasonic Flaw Detector SUD10

SUD10 Portable Ultrasonic Flaw Detector is a portable,

microprocessor-based instrument suitable for both workshop and field use.

SUD10 is integrated with international advanced digital integration and new EL display

technology,

is a smart Digital Ultrasonic Flaw Detector propelled by SADT.

SUD10 has almost all functions to meet requirements of professional application for non

-destructive testing.

Features

· Automatic calibration of transducer Zero Offset and/or Velocity
· Automatic gain,Peak Hold and Peak Memory
· Automatic display precise flaw location (Depth d,level p,distance s,amplitude,sz dB,)· Automatic switch three staff gauge ((Depth d,level p,distance s)
· Ten independence setup, any criterion can be input freely, we can work in the scene

without test block
· Big memory of 300 A graph and 30000 thickness value
· B scan
· RS232 port,communication with pc is easy
· The embeded software can be online updated
· Li battery, continue working time up to 8 hours

Technical data

Title

Parameter

Title

Parameter

Measuring range(mm)

0.5 ~ 10000

Measurement mode

single,dual,THRU

Vertical linearity error

≤2.5%

Reject

0-80%

Horizontal linearity error

≤0.1%

Pulse shift(μs)

-20 ~ +3400

Sensitivity margin

≥60dB

Zero(μs)

0.0 ~ 99.99

Dynamic scope

≥32dB

Port type

BNC

Resolution

≥40dB

Operating temperature

-20~50

Frequency range(MHz)

0.5 ~ 20

H×W×D(mm)

240×180×50

Gain(dB)

0 ~ 110

Weight(kg)

1.8

Velocity

1000 ~ 13000

--

--
