Product Details:
Payment & Shipping Terms:
|
| Display: | 4 Digits LCD | Color: | Red |
|---|---|---|---|
| Measuring Range: | 0.7~300.0mm In Steel With PT-5 Probe | Resolution: | 0.1mm |
| Velocity: | 1000~9999m/s | Dimension (mm): | 127x66x29 |
| Net Weight (g): | 240 | Key Words: | Ultrasonic Thickness Gauge |
| High Light: | wall thickness gauge,steel thickness gauge |
||

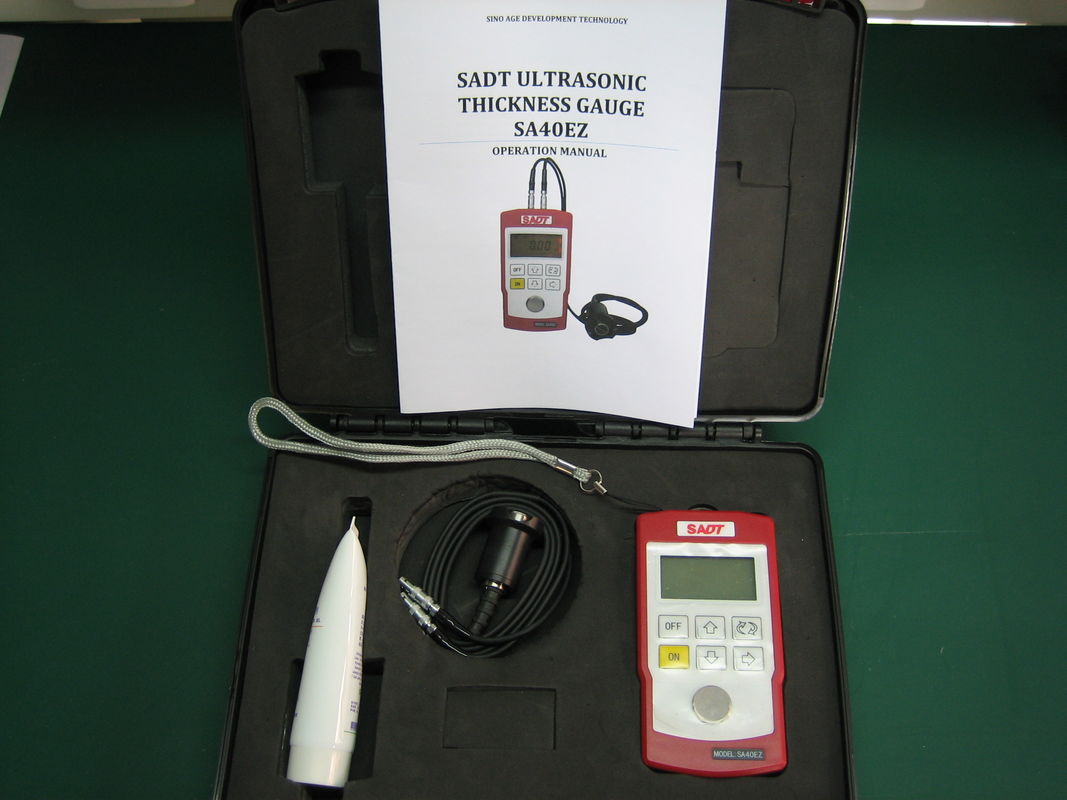

Miniaturized ultrasonic thickness gauge SA40EZ 4 digits LCD with backlight
Product Introduction
SA40EZ is the miniaturized ultrasonic thickness gauge that can measure wall thickness and velocity. Our intelligent gauge is designed to measure the thickness of metallic and non-metallic materials such as steel,aluminum, brass, silver, oil, acrylic resin, glycerin, water glass and etc. It is quite versatile model which can be easily equipped with the low & high frequency probes as well as a high temperature probe.
Specifications:
| Model | SA40EZ |
| Display | 4 digits LCD |
| Backlight | Yes |
| Measuring range | 0.7~300.0mm in steel with PT-5 probe |
| Resolution | 0.1mm |
| Accuracy | 0.7~99.9mm ±(0.5%+0.1)mm 100.0~300.0mm ±(1%+1)mm |
| Unit | mm |
| Velocity | 1000~9999m/s |
| Coupling indicator | Yes |
| Calibration | Auto |
| Memory | 400 data |
| Low battery indicator | Yes |
| Working environment | 0~40oC, 20~90%RH |
| Power off | Auto |
| Power supply | AA battery x 2 |
| Dimension (mm) | 127x66x29 |
| Net weight (g) | 240 |
| Standard probe | PT-5 |
| Optional probes | XT-5 / GT-5 / CT2.5 |
Optional Probes
PT-5 5MHZ Dia.Φ10mm For standard applications
XT-5 5MHZ Dia.Φ7mm For tubes with small diameter
GT-5 5MHZ Dia.Φ12mm For high temperature up to 400℃
CT-2.5 2.5MHZ Dia.Φ12mm For unfavorable attenuation
