Eco friendly Residential Water Cooled Water Chiller Box , Pipe Coil Type

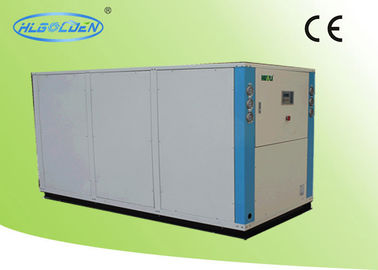

Large Image : Eco friendly Residential Water Cooled Water Chiller Box , Pipe Coil Type

Product Details:

Place of Origin:	DongGuan, GuangDong
Brand Name:	HIGOLDEN
Certification:	CE
Model Number:	HLLW-10SPI

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	20 working days after received your payment
Payment Terms:	T/T, Western Union, L/C, MoneyGram
Supply Ability:	100pcs per month

Contact Now

Detailed Product Description

Product Name:	Water Cooled Water Chiller	Application:	Cooling Or Heating
Cooling Capacity:	35.3 Kw	Power Supply:	380v-50hz-3ph
Refrigeration:	R22/R407C/R410A	Standard:	CE
Condenser:	Shell And Tube Type	Compressor Type:	Scroll Type
High Light:	Recirculating Water Chiller , Portable Water Chiller

Eco-friendly Residential Water Cooled Water Chiller Box / Pipe Coil Type

1. Technical detail:

Model HLLW ～		03SPI	05SPI	08SPI	10SPI	12.5SPI	15SPI	20DPI	25DPI	30DPI	40TPI	45TPI
Rated Cooling Capacity	×1000 kcal/h	8.8	14.1	22.9	30.4	35.4	44.7	60.7	70.9	89.4	106.3	134.1
Rated Cooling Capacity	KW	10.2	16.4	26.6	35.3	41.2	52.0	70.6	82.4	104.0	123.6	156.0
Input Power (KW)		2.85	4.3	6.3	7.9	9.3	11.7	15.1	17.1	22.6	25.6	32.8
Comp. Input Power×Qty. (KW)		2.1	3.55	5.2	6.8	7.8	10.2	6.8×2	7.8×2	10.2×2	7.8×3	10.2×3
Chilled Water Pump Power (KW)		0.75	0.75	1.1	1.1	1.5	1.5	1.5	1.5	2.2	2.2	2.2
Comp. Current (A)		5.3	8.4	12.6	16.2	18.1	22.8	31.1	33.4	44.2	50.2	64.2
Power Supply		3φ-380V-50HZ
Safety Protection		Phase reversion protection, Phase lack protection, Overload current protection, Discharge air temp. protection, Low & High pressure protection, Low temp. protection, Water flow protection,
Number of Refrigeration Circuit		1						2			3
Capacity Control (%)		0, 100						0, 50, 100			0, 33, 66, 100
Refrigerant		R22/R407C/r410A
Condenser		Shell and Tube Type
Water Side Max Pressure (MPa)		1
Dia. of Pipe to Condenser (inch)		1"	1-1/2"	1-1/2"	1-1/2"	2"	2"	2"	2"	2-1/2"	2-1/2"	2-1/2"
Cooling Water Flow (L/m)		35.3	57.2	91.2	120.6	140.5	178.3	225.3	257.4	355.4	386.1	533.1
Condenser Water Pressure drop (kPa)		21	22	23	29	31	41	56	56	58	55	56
Evaporator		Pipe Coil Type		Shell and Tube Type
Water Side Max Pressure (MPa)		-		1
Dia.of Pipe to Evaporator (inch)		1"	1"	1-1/2"	1-1/2"	2"	2"	2"	2"	2-1/2"	2-1/2"	2-1/2"
Chilled Water Flow (L/m)		29.2	47.0	76.4	101.2	118.1	149.1	202.4	236.2	298.1	354.3	447.1
Evaporator Water Pressure drop (kPa)		-		17	23	28	30	28	28	32	32	31
Running Noise dB(A)		54	56	66	72	72	75	75	75	75	75	75
Tank Volume (L)		80	80	180	180	180	180	270	270	270	270	270
Total weight (Kg)		120	160	430	460	500	540	720	780	880	1030	1180

2. Description

Water chiller should be an industrial water refrigeration apparatus that produces cold water to cool

industrial process equipment. It has to have: condenser, refrigerant, built-in coolant expansion reservoir

and pump, and so on.

Process equipment that requires cooling includes lasers, ozone generators, plastic applications, vacuum

pumps, cutting and welding machines, packing and printing machines, X-ray machines, STM microscopes,

and plenty more.

Application Area:

Electroplating, plastic products, hardware, chemical industry, electronics, food preservation,, laser carving

vacuum coating, ultrasonic cleaning etc industries.Chiller that uses high effective a easy cleaning stainles

s steel heat exchanger, exerts its unique advantage against erosion and filth in electroplating, PCB,

oxidization, chemical Industry,etc weak acid and alkaline conditions.

3. Water cooled chiller configuration table

Main accessories	Brand	Original place
Compressor(Scroll type)	Copeland	America
Ripple Aluminium condenser	HUALI	Guangdong, China
Shell and tube evaporator	HUALI	Guangdong, China
Centrifugal fan	Xingtong	Guangdong, China
Motor	Global	Guangdong, China
Dry Filter	Danfoss	Denmark
High, low pressure protection	SK	Shanghai, China
High, low pressure gauge	JAE	Wuxi, China
Controller	PUNP	Guangzhou, China
Phase sequence protector	Chengfeng	Guangdong, China
Electrical accessories	FUJI	Japan
