Product Details:
Payment & Shipping Terms:
|
| Number Of Phases: | Three Phases | Rated Capacity: | 30-10000kva |
|---|---|---|---|
| Installation: | Indoor/Outdoor | Frequency: | 50Hz/60Hz |
| Coil: | Copper/Aluminum Coil | Voltage: | 6.6kv-35kv |
| Usage: | Power | Core: | Amorphous Alloy Core |
| High Light: | amorphous metal transformer,power distribution transformer |
||

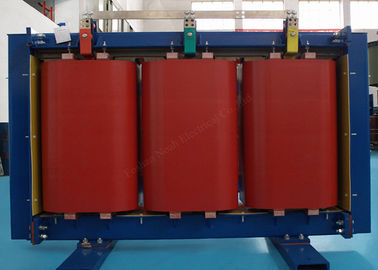

High Voltage 12KV Amorphous Alloy Transformer Three Phase For Power Distribution
Product Features:
Environmental and energy saving effect is significant. Compared with S9 series, its no-load loss is decreased by 74%and no-load current is 45%. It has reached to the national level of energy efficiency standards.
Amorphous alloy transformer is not the presence of grain boundary of lattice, so the power of its magnetization is smalland it also has a good stability of temperature. power distribution transformer
Low loss, low noise, well heat dissipation. electrical transformers 33kv
Parameter:
| Item NO. | Group Voltage & Tap Range |
Connection Symbol |
No-load power(W) |
Load Loss(W) |
Short Circuit Impedance(%) |
Gauge (mm) |
Weight (kg) |
||
|
High Voltage (KV) |
Tapping Variation |
Low Voltage (KV) |
|||||||
| SCBH15-M-30/10 | 6 6.3 10 10.5 11 |
±5% ±2*2.5% |
0.4 | Dyn11 | 33 | 600 | 4 | 400 | 345 |
| SCBH15-M-50/10 | 43 | 870 | 480 | ||||||
| SCBH15-M-63/10 | 50 | 1040 | 545 | ||||||
| SCBH15-M-80/10 | 60 | 1250 | 625 | ||||||
| SCBH15-M-100/10 | 75 | 1500 | 710 | ||||||
| SCBH15-M-125/10 | 85 | 1800 | 550 | 850 | |||||
| SCBH15-M-160/10 | 100 | 2200 | 940 | ||||||
| SCBH15-M-200/10 | 120 | 2600 | 1085 | ||||||
| SCBH15-M-250/10 | 140 | 3050 | 1265 | ||||||
| SCBH15-M-315/10 | 170 | 3650 | 1485 | ||||||
| SCBH15-M-400/10 | 200 | 4300 | 660 | 1860 | |||||
| SCBH15-M-500/10 | 240 | 5150 | 2180 | ||||||
| SCBH15-M-630/10 | 320 | 6200 | 4.5 | 2480 | |||||
| SCBH15-M-800/10 | 380 | 7500 | 820 | 3048 | |||||
| S(B)H15-M-1000/10 | 450 | 10300 | 3420 | ||||||
| SCBH15-M-1250/10 | 530 | 12000 | 4218 | ||||||
| SCBH15-M-1600/10 | 630 | 14500 | 4922 | ||||||
| S(B)H15-M-2000/10 | 750 | 18300 | 5 | 6150 | |||||
| SCBH15-M-2500/10 | 900 | 21200 | 6742 | ||||||
Introduction To Products
01) Our SC(B)H15 series resin insulation amorphous alloy dry-type transformer is cast under vacuum with thin insulating bands automatically .
02) A model SCBH15 amorphous alloy product adopts a single-frame or three-phase five-legged spiral core.
03) The core is clamped with sheet-formed frame structure and the low-voltage coil is of a foil winding type so as to render a low loss and a high short-circuit withstand.
04) The insulating materials in the coil such as glass fiber are self-extinguishing and they will not cause fire by the arc resulted from short-circuit . The resin will not generate toxic or harmful gas under high temperature.
05) Small in volume, light in weight, safe in running and free of maintenance.
06) It has advanced and rational structure and its overall performances reach international advanced level.
Product Description:
Non-gold alloy transformer is a kind of new energy saving transformers that used amorphous alloy materials to insteadof silicon materials. It’s performance is stable, reliable and energy saving effect is remarkable, which is the ideal ofdistribution updated ones.
Product Features:
Environmental and energy saving effect is significant. Compared with S9 series, its no-load loss is decreased by 74%and no-load current is 45%. It has reached to the national level of energy efficiency standards.
Amorphous alloy transformer is not the presence of grain boundary of lattice, so the power of its magnetization is smalland it also has a good stability of temperature. power distribution transformer
Low loss, low noise, well heat dissipation. electrical transformers 33kv
PS: the weight and dimension just for reference, please in kind prevail.
Company Profile:
Foshan Noah Electrical Co.,Ltd is a high-tech manufacturing enterprise which organized on the basis
of former state-owned enterprise - Foshan Transformer Factory, specialized in producing multiple types
of power transformers below 35kV, including Amorphous Transformers, Dry Type Transformers, Oil Immersed
Transformers, Wind Power Transformers, OLTC Transformers, Solar Substations, Distribution Boards etc. ,
especially well experienced in Furnace Transformer and Rectifier Transformers design.
Our transformers are widely used in large power plants, substations, wind power generations, chemical
industries, electroplating power supply, steel rolling, smelting supporting engineering. We have advanced
production and testing equipment, all engineers and workers have abundance experience in transformer
could guarantee the production capacity and product quality effectively.
We strictly execute ISO9001 quality management system, ensure each step of production conforms to
the professional standards of transformers production.
