Precision Shielding Door RF shielded door for shielding enclosure

Name: Precision Shielding Door RF shielded door for shielding enclosure
Brand: Pioneer
SKU: PE-EMC-Door
Rating: 4.9 (138 reviews)

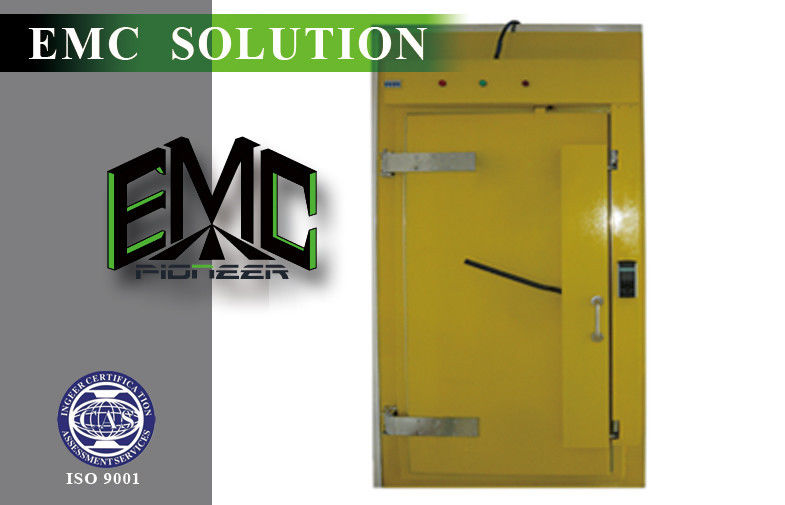

Large Image : Precision Shielding Door RF shielded door for shielding enclosure

Product Details:

Place of Origin:	China
Brand Name:	Pioneer
Model Number:	PE-EMC-Door

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	negotiation
Packaging Details:	Wooden carton packing, customized accepted
Delivery Time:	10-15 working days after received your payment
Payment Terms:	T/T, PayPal, western Union,L/C
Supply Ability:	50 pcs per month

Contact Now

Detailed Product Description

Product Name:	RF Door	Application:	EMC Chamber, MRI Room, RF Cabinet
Standard Size Of Door:	0.9*1.9M(Open Size), Customized Accepted	Open Type:	Manual Operate Auto Operate Electronic Auto Sliding Operate
RF Shielding Door Layer:	Single Or Double Layer	Color:	Grey/Blue
High Light:	radiation shielding doors , MRI door

Precision Shielding Door RF shielded door for shielding enclosure

Features

Precision machined aluminum hinges with six thrust bearings for sag-free mounting and smooth operation
A two-inch bronze center bushing, capped with four-inch brass cover plates, penetrating the door leaf core
Four rows of beryllium copper finger-stock around the perimeter of RCM receiver
Heavy-duty cam latch strikes for three-point latching, guided by precision machined latch bar guides
Easy to retrofit with existing door on standard modular and welded shielded enclosures
Heavy duty aluminum door handles with opening rotation of less than 120 degrees
Warranties cover parts and labor for one year

Description

To improve on the quality and performance of the traditional knife edge door,heavy duty Double Knife Edge Door. Built to last, the DKE is constructed of exceptionally rugged materials with designed-in reinforcements.

This is suitable for welded enclosures, modular systems and anechoic and ferrite-lined chambers, where the external mechanism makes it ideal for material application on its interior surface. Its high-strength design makes it ideal for heavy industrial environments or for frequent usage requirements.

Construction

The Door consists of a factory assembled leaf and frame which maintain electrical contact around the perimeter. The door panel is laminated on both sides with 22 gauge galvanized steel. Heavier gauges are available for improved magnetic field performance. The bronze double knife edge extrusion is mounted on the door leaf and the receiver housing is mounted to the frame. The two knife edges of the leaf mate with four rows of beryllium copper finger-stock mounted in the bronze recessed contact mechanism receiver housing. The beryllium finger-stock is easily maintainable and replaceable with standard tools.

Each door leaf is supported by three heavy duty aluminum hinges for sag-free mounting and latched by a three-point roller bearing latch assembly. These features serve to provide a high reliability door which will deliver many years of trouble-free service.

The Door is available in the standard size of 3' - 4' width and 7' height, both single and double leaf, and custom fabricated sizes.

Attenuation Levels

Precision Shielding Door RF shielded door for shielding enclosure 0

Precision Shielding Door RF shielded door for shielding enclosure 1

Our company mission

"to offer top grade products and excellent service that satisfy every customer's requirements". "Professional ,Efficient & Reliable" are the slogans of Changzhou Pioneer.

To ensure compliance with today's EMI/RFI requirements, you need a shielding systems provider who offers a

wide range of products and technical expertise.Changzhou Pioneer Electronic Co.,Ltd is the best choose.

All of products are CE certified and ROHS compliance,also meet the standards of IEC939-1,IEC939-2,EN133200,UL1283, VDE0565-3,GB/T15287,GB/T15288 etc. to available for every country.
