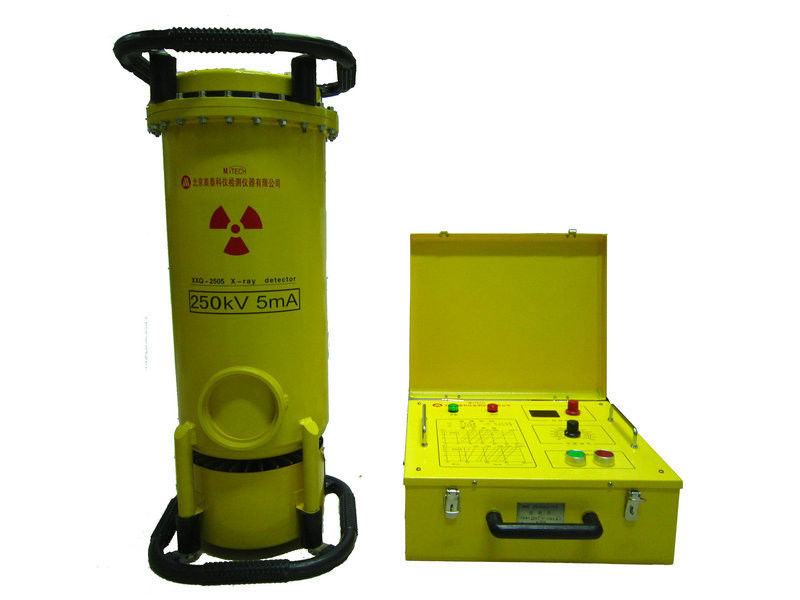

XXHA-2505 Cone Target, Panoramic X-ray Flaw Detector NDT Equipment



XXHA-2505 Cone target, Panoramic X RAY Flaw Detector



Description:



The frequency-converted and gas-insulated portable X-ray NDT equipment with ZY–2000 controller, is one of upgrading generation of the products by the Mitech Co.,Ltd. Besides of its advantages of small size, light weight, easy to use, simple operation and self-troubleshooting, this new type of controller has the excellent performance of strongly interference-free capability, good working stability and operating reliability. With the popularization and spreading application of this new type NDT X-ray equipment all over the country, it has been recognized and welcomed by the customers from different industries

This portable X-ray NDT equipment can be used in the fields of ship-building, mechanical manufacturing, aviation, railroad, pressure vessel, boiler, petroleum, chemical and national defense, performing the non-destructive testing, especially at the construction site or high above the ground applications.

The X-ray NDT equipment is used to show the internal discontinuity or faults of materials, products or welding from a radiographic image on a film, according to the principle of the different absorption of the X-ray for different material depending on the different thickness of the materials. We can evaluate the quality of materials and products based upon the characters, size and position of the discontinuity or faults.

In this series of products, the X-ray generator is furnished with SF6 gas as an insulation, electric fan for forced cooling, the controller is equipped with the advanced microprocessor controlling system, SCR modules for voltage regulation, converting modules to control the primary and secondary side of the SCR as well as the advanced electronic circuits of voltage & current stabilization and interference-free .Thus, the performance of the complete equipment has been improved remarkably.



Specifications:



         Model



     Parameters

Item

XXQ-1005

XXH-1005

XXQ-1605

XXH-1605

XXG-1605

XXQ-2005

XXG-2005

XXH-2005

XXHA-2005

XXQ-2505

XXG-205

XXH-2505

XXHA-2505

XXQ-3005

XXG-3005

XXH-3005

XXHA-3005

XXQ-3505

XXG-3505

XXH-3505

XXHA-3505

Power supply

AC220V+-10%    50Hz

Power (kW)

>1.0

>1.5

>2.5

>2.5

>3.0

>3.5

Tube voltage (kVp)



60-160

80-200

130-250

150-300

200-350

Max. Tube

current (mA)

5

5

5

5

5

5

Focal Spot Size

(mm x mm)

Q.G

1.0*1.0

1.5*1.5

1.5*1.5

2.0*2.0

2.5*2.5

2.5*2.5

H

1.0*1.5

1.0*2.0

1.0*2.0

1.0*2.4

1.0*2.5

1.0*2.5

HA

1.0*2.5

1.0*3.5

1.0*3.5

1.0*5.0

1.0*6.0

1.0*6.0

Weight

kg

Tube

Q

11

15

20

35

44

44

G



14

20

32

37

37

H.HA

11

15

20

35

44

44

Controller

11

Radiation angle of

X-ray

Q

40º

G

360ºX25º

H.HA

360ºX30º

Max. penetration

A3 steel (mm)

Q. G

8

20

29

39

49

59

H

6

18

26

36

46

56

HA



15

24

34

40

50

Insulation

SF6  gas

Environmental temperature

-25℃-+40℃

Relative Humidity

No more than 85%

Working conditions of X-ray  photography

1. Focus to Film: 600mm

2. Exposure time: 5 min.

3. Film: Tian Jing, Model III, intensified by double lead foil.

4. Treatment in the darkroom: Temp. 20 +/-2ºC, 5 min. blackness ≥ 1.5

Safe working pressure

Of gas

0.35 ~ 0.50 Mpa

     (Operation will be prohibited in the case less than 0.35 Mpa)



Standard Package:

1. X-ray generator                     1pc.
2. Controller                         1pc.
3. Connecting cable (10 cores) 25m       1pc.
4. Power cable (2cores) 10m            1pc.
5. Earthing wire 5m                   1pc
6. Fuse (20A)                        5pcs
7. Fuse (3A)                         5pcs
8. Bag to contain accessories            1pc
