Product Details:
Payment & Shipping Terms:
|
| Material: | Polypropylene | Certified: | ISO9001 |
|---|---|---|---|
| Brand: | TS Filter | Membrane: | CN-CA |
| Length(inch): | 5", 10", 20", 30", 40" (can Be Decided By Client) | ||
| High Light: | water filter cartridge,industrial filter cartridges |
||

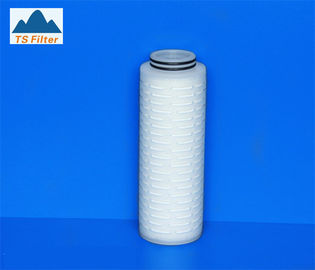

industrial water treatment Micron Filter Cartridge , 0.2 Micron Polypropylene Filter Cartridges
Quick Detail:
Application:
|
Material |
Membrane: |
CN-CA |
|
Inner Core: |
Polypropylene |
|
|
Outer Core: |
Polypropylene |
|
|
Support Layers: |
Polypropylene |
|
|
O ring/Gasket: |
Silicone, EPDM, Buna , Viton, Teflon |
|
|
Specifications |
Pore size(um): |
0.2 |
|
Outer Diameter(OD): |
69mm (2.75") |
|
|
Inner Diameter(ID): |
33mm (1.30") |
|
|
Length(inch): |
5", 10", 20", 30", 40" (can be decided by client) |
|
|
Endcaps: |
DOE,SOE(215,214,226,222) |
|
|
Technical data |
Max differential pressure: |
Normal Flow direction 4.2 bar (60 psi) at 25℃ (77℉); |
|
Max temperature: |
80℃ (172℉)at△P≤1.0 bar (14psi) |
|
|
PH value range: |
6-8 |
Competitive Advantage:
100% integrity test
more than 13 years of experience of manufacturing
Reasonable prices
SGS test
IFTA bacterial challenge test
Validation guide
Made of 100%high quality polypropylene material
