Product Details:

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	10 working days after received your payment
Payment Terms:	T/T, Western Union, L/C, MoneyGram
Supply Ability:	500pcs per month

Contact Now

Detailed Product Description

Product Name:	Water Heat Pump	Application:	Indoor
Cooling Capacity:	22kw	Power Supply:	380v-50hz-3ph
Heating Capacity:	25.3kw	Refrigeration:	R410A
Standard:	CE	Type:	Free Standing
High Light:	Water Cooling Chiller , hot Water Chiller

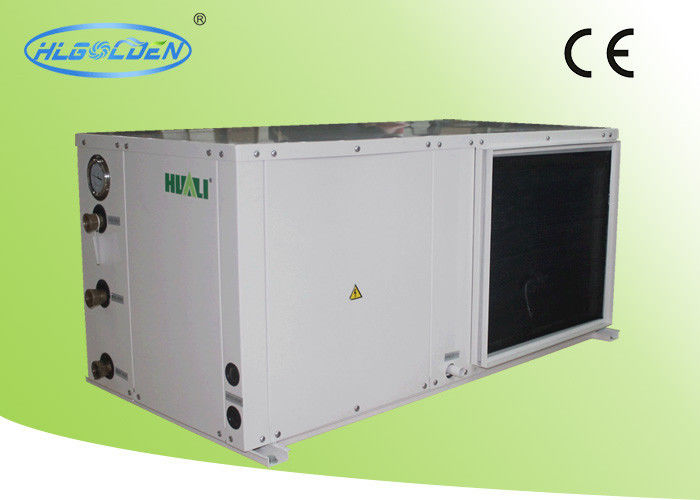

Eco friendly Industrial Water Chiller Units Scroll Compressor 380V / 50Hz

Description:

• Water sourced design make sure high efficiency through using wasted or ground water

• Save energy for global environment

• Cooling capacity:5.4-7.3KW

• Super thin design with double tube type heat exchanger

• Working source side outlet water temperature range:-10℃ to 35℃

• Min outlet water temperature: 8℃ when cooling.

• Five working mode are changeable.

• Copeland scroll compressor

• R410A refrigerant

Specifications:

Model			HLLS-22H
Power supply			380V/50Hz
Cooling capacity		kw	21.500
Heating capacity		kw	25.300
Cooling Power input		kw	5.500
Heating Power input		kw	6.100
Cooling current		A	9.7
Heating current		A	10.5
Airflow volume		m3/h	4000
External Static Pressure		Pa	80(100,120,150)
Water flow volume		m3/h	4.80
Water pressure drop		kPa	60
Connected pipe		in	R1-1/4''
Unit noise level (H/M/L)		dB(A)	50
Evaporator Type			double tube type heat exchanger
Compressor Type			Scroll
Refrigerant Type			R410A
Dimensions	Length	mm	1376
	Width	mm	852
	Height	mm	592
Unit Weight		kg	180
