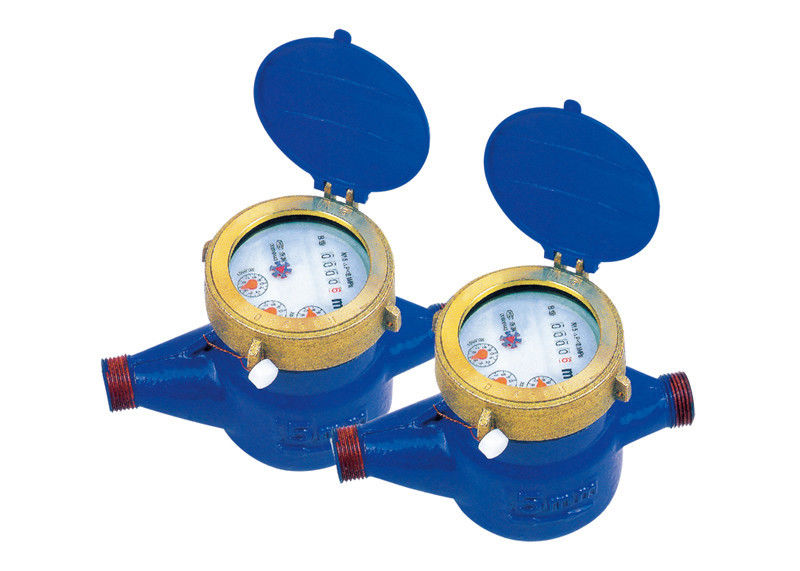

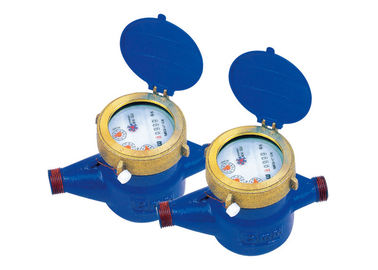

Iron Residential Cold Water Meter LXSG-15E

China Iron Residential  Cold Water Meter  LXSG-15E supplier
Iron Residential  Cold Water Meter  LXSG-15E supplier Iron Residential  Cold Water Meter  LXSG-15E supplier Iron Residential  Cold Water Meter  LXSG-15E supplier

Large Image :  Iron Residential Cold Water Meter LXSG-15E

Product Details:

Place of Origin: Ningbo ,China
Brand Name: Yongzhou
Certification: ISO9001:2008
Model Number: LXSG-15E

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Packaging Details: Carton box
Delivery Time: 15-30days after receiving deposit
Payment Terms: T/T, L/C, Western Union, MoneyGram, PayPal, etc.
Supply Ability: 50000pcs/month
Contact Now
Detailed Product Description
Model NO: LXSG-15E Application: Household|Resident
Dial: Wet Dial Feature: Rotary|Vane Wheel
Material: Brass|Iron Product Name: Domestic Water Meter
Standard: ISO 4064|Class B Type: Multi Jet
Water Type: Hot|Cold

Portable Residential Cold Water Meter Iron LXSG-15E Horizontal





Description:



Multi-jet Wet-dial Type Cold Water Meter LXS-15E





Quick Detail:



1. Type name: Multi-jet ,wet-dial ,rotary vane wheel type

2. Model No.: LXS-15

3. Standard :ISO 4064 Class B

4. Material: Brass ,iron, stainless steel, nylon plastic for option

5. Non-return valve could be installed on request

6. Horizontal installation





Product features:



Multi-jet , wet-dial, rotary vane wheel type

Selected high quality materials for steady and reliable characteristic

Material: Brass

Liquid sealed register ensures the dial keep the reading clear in a long term service

Universal use and good looking

Brass ,iron ,stainless steel or plastic (NANO) body ,hot water meter and anti-theft device for option



Application:



This range of water meter is used to measure the total quantity of cold (hot) potable water which consumed in household or a resident unit passing through the pipeline.





Main Technical data



Meter Size  DN (mm)





Class



Qs

Overload

Flow

Qp

Nominal

Flow

Qt

Transitional

Flow

Qmin

Min

Flow

Starting

Flow

Min

Reading

Max

Reading

m³/h

      L/h

15

  B

    3

  1.5

120

30

8

0.0001

99999

20

  B

    5

  2.5

   200

 50

  10

0.0001

99999

25

  B

    7

  3.5

   280

 70

  12

0.0001

99999

32

  B

   12

  6.0

   480

 120

  14

0.0001

99999

40

  B

   20

  10

   800

 200

40

0.0001

99999

50

  B

   30

  15

   3000

 450

  45

0.0001

99999





Maximum permissible error:



In the lower zone from Qmin inclusive up to but excluding Qt is ±5%

In the upper zone from Qt inclusive up to and including Qs is ±2%





Working Condition:



Water temperature:0℃≤t≤50℃ (For cold water meter)

Water pressure: ≤10bar (16bar on request)





Specifications:



Type

 size

 L

  B

H

Connection thread

LSXG-15E

 15

 165

  98

  104

    G3/4B

LXSG-20E

 20

190/195

  98

  108

    G1B

LXSG-25E

 25

260/225

103

115

    G1 1/4B

LXSG-32E

 32

260/230

 103

  115

    G1 1/2B

LXSG-40E

 40

300/245

 124

  153

    G2B

LXSG-50E

 50

300

 124

  153

    G2 1/2B



Installation requirements:



  1. Meter should be installed in horizontal position with the register face upwards
  2. Pipe line must be flushed before installation
  3. The meter should be constantly full of water during operation





Iron Residential  Cold Water Meter  LXSG-15E



Competitive Advantage:



100% tested

 Reasonable price with good quality

 Long time guarantee

 On time delivery

 Long working life
