Woltmann Water Meter / Hot Water Meter LXLCR-65

Woltmann Water Meter / Hot Water Meter LXLCR-65
Woltmann Water Meter / Hot Water Meter LXLCR-65 Woltmann Water Meter / Hot Water Meter LXLCR-65 Woltmann Water Meter / Hot Water Meter LXLCR-65 Woltmann Water Meter / Hot Water Meter LXLCR-65 Woltmann Water Meter / Hot Water Meter LXLCR-65

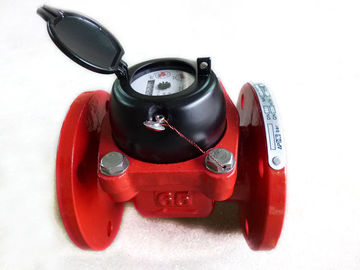

Large Image :  Woltmann Water Meter / Hot Water Meter LXLCR-65

Product Details:
Place of Origin: Ningbo
Brand Name: Yongzhou
Certification: ISO9001:2008
Model Number: LXLCR-65
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: Wooden box
Delivery Time: 15-30days after receiving deposit
Payment Terms: T/T, LC, West union, MoneyGram, etc.
Supply Ability: 5000pcs/week
Detailed Product Description
Model NO: LXLCR-65 Dial: Dry Dial
Feature: Horizontal|Removable Material: Iron
Product Name: Woltmann Water Meter Standard: ISO 4064|Class B
Type: Flange Water Meter Water Type: Hot
High Light:

industrial water meters

,

Digital Water Meter

Digital Woltmann Water Meter , Magnetic Hot Water Meter LXLCR-65









Quick Detail:



1. Type name: Woltmann removable type

2. Model No.: LXLCR-65B

3. Standard :ISO 4064 Class B

4. Material: Cast iron

5. Dry-dial

6. Horizontal installation





Description:



Removable Woltman Dry-dial Type Hot Water Meter LXLCR-65B





Product features:



Woltmann detachable type

Dry-dial,magnetic drive

Selected high quality materials for steady and reliable characteristic ,low head loss and enable use a long life span

Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term

Universal use with this range detachable,without removing the meter from the pipeline for a easy maintenance and replacement ,good looking,etc.





Main Technical data



Meter Size  DN (mm)





Class



Qs

Overload

Flow

Qp

Nominal

Flow

Qt

Transitional

Flow

Qmin

Min

Flow

Min

Reading

Max

Reading

m³/h

50

  B

    30

  15

4.5

1.2

0.01

9999999

65

  B

    50

  25

     7.5

2

0.01

9999999

80

  B

    80

  40

     12

3.2

0.01

9999999

100

B

   120

  60

     18

4.8

 0.01

9999999

125

   200

 100

     30

 8

0.01

9999999

150

  B

   300

 150

     45

12

0.01

9999999

200

  B

   500

 250

     75

20

0.01

9999999

250

  B

   800

 400

    120

32

0.01

9999999

300

  B

  1200

 600

    180

48

0.01

9999999



Maximum permissible error:



In the lower zone from Qmin inclusive up to but excluding Qt is ±5%

In the upper zone from Qt inclusive up to and including Qs is ±2%



Working Condition:



Water temperature:0℃≤t≤90℃ (For hot water meter)

Water pressure: ≤10bar (16bar on request)



Installation requirements:



  1. Meter should be installed in horizontal position with the register face upwards
  2. Pipe line must be flushed before installation
  3. The meter should be constantly full of water during operation





Competitive Advantage:



 Reasonable price with good quality

 Long time guarantee

 100% tested

 On time delivery
