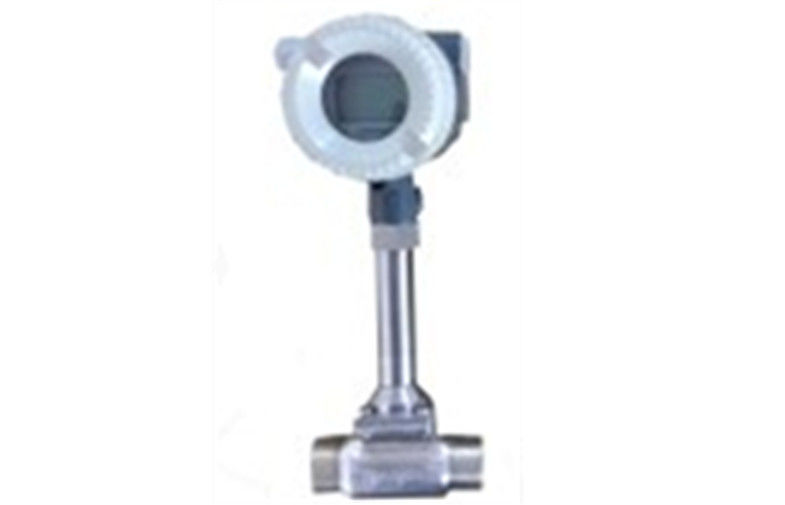

Large Image :  Industrial Chinese 304 strainess steel Vortex Flow Meter , Pressure PN16Mpa PN2.5Mpa

Product Details:

Place of Origin: China
Brand Name: TF
Certification: CE Certification
Model Number: LUGB/E

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: packed in standard exporting carton
Delivery Time: 1-2 weeks
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal (as for our payment information, please contact us)
Supply Ability: 2000 Piece/Month
Contact Now
Detailed Product Description

 Chinese manufacturer flow meter with the type of vortex used of Industrial

Quick Detail:

1. Accurancy:1.0%
 2. Repeatability:0.03%
 3. Normal size:DN15-DN.300
 4. Power supply:+12VDC to 36VDC or 3.6V lithium battery
 5. Display:LCD screen
 6. Medium temperature:-10 to +55C
 7. Output:4-20mA or pulse output.
 8. Protocal:RS485 protocal or Hart Protocal
 9. Connection:flange connection or clamp connection
 10. Housing materials:304 strainess steel,probe:316L
 11. Pressure:PN16Mpa PN2.5Mpa ,PN40Mpa PN6.4Mpa


Description:

   As flow passes a bluff body in the flow stream vortex meter, the vortices create low and high pressure zones behind the bluff body, or shedder bar. Our vortex flow meters are designed with a piezoelectric crystal sensor to detect the pressure exerted by the vortices on the velocity sensor. The sensor converts these “pulses” into electrical signals which are then converted to a frequency by the meter`s electronics allowing the volumetric flowmeters to calculate the volumetric flow rate to be determined. Additionally, each vortex flowmeter we design features an all welded sensor design which creates a robust sensor and to minimize potential leaks.With the addition of the optional integrated temperature and pressure sensors, the flow meter can then calculate and output the mass flow rate as well as volumetric flow, temperature, pressure, and density.

   Smart vortex flowmeter is mainly used for measuring flow of industrial pipeline fluid, such as gas, liquid and steam, etc. It has little pressure loss, broad span range and high accuracy. It is not under influence of density, pressure, temperature and viscosity when measuring volumetric flow. It has no movable mechanical parts with high reliability and little maintenance.

   Its characteristics are no pressure loss, no moving parts and no maintenance. Though it is similar to Electro Magnetic Flowmeter the one advantage Vortex Meter has over EMF is the medium need not be conductive as in the case of EMF. This flowmeter adopts piezoelectric sensor, has high reliability, and works with in –200C to +2500C. It gives standard analogue signal (4 ~ 20mA) or Digital pulse signal outputs. It is compatible with digital systems like Computer, DCS Systems, Dataloggers, etc.

  If you have any questions Please contact me at any time . SKYPE : susan86861 .




Applications:

Vortex Flowmeter is used to measure the flow of liquids, Gases or Steam in pipelines.


Specifications:



Application range

(1)Gas;(2)Liquid;(3)Steam

Primary measured value

Flow Rate


Secondary measured value

Volume flow.
(Pressure and Temperature is available for model with compensation)

Modular construction

The measurement system consists of a flow sensor and a signal converter.
It is available as compact and as separate version.





Compact version converter

N Type: Pulse output without local display

A Type: 4-20mA Output without local display

B Type: Local Display; Lithium Battery Power
No Output(Battery Part No.: ER26500)

C Type:Local Display;24VDC Power;4-20mAOutput;
Optional Function:
(1)    Backup Power Supply: Lithium Battery
(2)    Modbus RS485

Pulse Output

Connection

Flange:DN15-DN300

Wafer:DN15-DN300

Measurement Ratio

Standard–10:1



Reference conditions

Flow conditions similar toEN29104

Medium:Water/Gas

Electrical conductivity:≥300μS/cm

Temperature:+10...+30°C/+50...+86°F

Inletsection:≥10DN

Operating pressure:1bar/14.5 psig

Flow Meter Accuracy

For Liquid:1.0%ofrate

For Gas and Steam:1.5% of rate


Process temperature

T1 Level:-20...+70°C

T2 Level:-20...+250°C

T3 Level:-20...+350°C

Ambient temperature

Standard(with aluminum converter housing): -10…+55°C

Storage temperature

-20 …+70°

Pressure



EN1092-1

DN200-DN300:PN10

DN100-DN200:PN16

DN15-DN80:PN25

Other pressures on request

JIS

1/2”...8":10K



1/2”...8":10K

Installation

Take care that flow sensor is always fully filled

For detailed information see chapter"Cautions for Installation"

Flow direction

Forward

Arrow on flow sensor indicates flow direction.

Inlet run

≥10DN

Outlet run

≥5DN

Sensor housing materials

SS304

Other materials on request

Converter Housing

Standard: polyurethane coated die-cast aluminum

Process connections

Flange EN1092-1

DN15...300 in PN6...25

ASME

1/2”…12"in150 lb RF

JIS

1/2”…12”in10...20K

Design of gasket surface

RF

Wafer

DN15…DN300



Competitive Advantage:

  Our products have competitive price advantage.As flow passes a bluff body in the flow stream vortex meter, the vortices create low and high pressure zones behind the bluff body, or shedder bar. Our vortex flow meters are designed with a piezoelectric crystal sensor to detect the pressure exerted by the vortices on the velocity sensor.
