Product Details:

Place of Origin: China Shandong
Brand Name: China Coal
Certification: ISO CE SGS TUV BV MA
Model Number: A+E 80FB

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Standard Export Packaging
Delivery Time: Shipped in three days after payment
Payment Terms: TT, Paypal, Western Union
Supply Ability: 5000
Contact Now
Detailed Product Description
Model: A+E 80FB Measuring Principle: Acoustics
Measuring Media: Liquid Accuracy: >± 1%
Measurement Object: Closed Pipeline Size: Dn15-6000 (1/2" To 236")
Main Application: Water, Diesel Fuel, Fuel Oil, Corrosive Liquid/Gas, Sea Water, Alcohol Sensor: Clamp-on/External
Sensor Temperature: -40 To 160 C (32 To 320 F)

(A+E 80FB)User-Friendly Handheld Ultrasonic Flow Meter

Handheld Ultrasonic Flow Meter , Flow Meter ,(A+E 80FB)User-Friendly Handheld Ultrasonic Flow Meter

Product Details

Basic Info.

Model NO.:A+E 80FB

Type:Ultrasonic Flow Meter

Measuring Principle:Acoustics

Measuring Media:Liquid

Certification:SGS, ISO

Accuracy:>±1%

Measurement Object:Closed Pipeline

Application:Industrial, Energy, Environmental

Size:Dn15-6000 (1/2" to 236")

Main Application:Water, Diesel Fuel, Fuel Oil, Corrosive Liquid/Gas, Sea Water, Alcohol

Sensor:Clamp-on/External

Item:Ultrasonic Flow Meter

Sensor Temperature:-40 to 160 C (32 to 320 F)

Repeatability:0.2%

Battery Operation:15 Hours (1900mAh Ni-MH Battery)

Internal Data Logger:Min. 2GB SD Card

Output:RS485

Display:2 Lines Characters LCD Screen

Units:Gallon, Cubic Feet, Cubic Meter, etc.

Amb. Temp:-20 to +75 C ( -4 to +167f)

Pipe Size:15~100mm, 50~700mm, 300~6000mm

Export Markets:Global

Product Description

User-Friendly Handheld Ultrasonic Flow Meter (A+E 80FB)
The ultrasonic flow meter is a handheld type with clamp-on sensor which offers a variety of optional features. It is a compact and robust instrument that comprises additional functions that can turn it into more than just a flow meter.
This ultrasonic flow meter is widely used to measure water, seawater, sewage, alcohol, various oils and other single, uniform and stable liquid that can transmit ultrasonic wave. Pipe line sizes range from 15 to 6000mm.

Features
-- Ultrasonic flow meter
-- Real time data transfer
-- Intuitive flow meter menu
-- Heat measurement function optional
-- Data logger and SD card support
-- Light weight (600g) and low cost (down to usd450)
-- Easy installation and operation
-- Measuring temperature from -40 to160 C
-- Blue nice appearance

Specifications
Flow Element

Power requirements: Built-in 24V Ni-MH battery (1900mAh) provides 15 hrs of continuous operation, charging: 220V AC 56/60 Hz
Inputs/Outputs: 4-20mA, RS232 / RS485, Heat Flow

Dispaly: 2 line characters display instantaneous and accumulative flow, velocity and signal status
Units: m³(/s/m/h/d), cubic feet, litre, gallon, etc.
Ambient conditions: -20 °C to +75 °C, 0 to 85% relative humidity
Size: 220*120*92mm, 600g
Flow rate: 0-10m/s
Accuracy (at calibrated conditions):  Flow: ± 1%FS reading,  Heat: ± 2%
Repeatability: 0.2%

Parameters:

Handheld Ultrasonic Flow Meter A E 80FB User Friendly Handheld Ultrasonic Flow Meter

Technical parameters

Standard S1

 M1

L1

S1H

M1H

HS bracket

HM bracket

Applicable       pipe (mm)

15~100

50~700

300~6000

15~100

50~700

15~100

50~700

Material

Aluminum alloy

PES (Polyether Sulfone)

Working frequency

                                                 1 MHZ

Installation method

V (N,W)

V,Z

Z method

V (N,W)

V,Z

V (N,W)

V,Z

Calibration

Pairing & Calibrating for the complete machine

Magnetism

Yes

N/A

Yes

Applicable temperature

-40~90 °C

-40ºC~160 °C

Protection

                                                  IP68

Media type

Water, seawater, sewage, alcohol, various oils and other single, uniform and

 stable liquid that can transmit ultrasonic wave

Medium turbidity

<20000ppm with low bubble content

Applicable pipes

Uniform and compact pipes made of carbon steel, stainless steel, cast iron,

copper, PVC, aluminum, glass fiber reinforced plastics, and lining is permitted.

Pipe lining material

Epoxy asphalt, rubber, mortar, polypropylene, polystyrene, bakelite,

polytetrafluoroethylene etc.

Signal cable

Standard configuration: 5mX2, and 10mX2 or 15mX2 are optional.


Other Options and Accessories

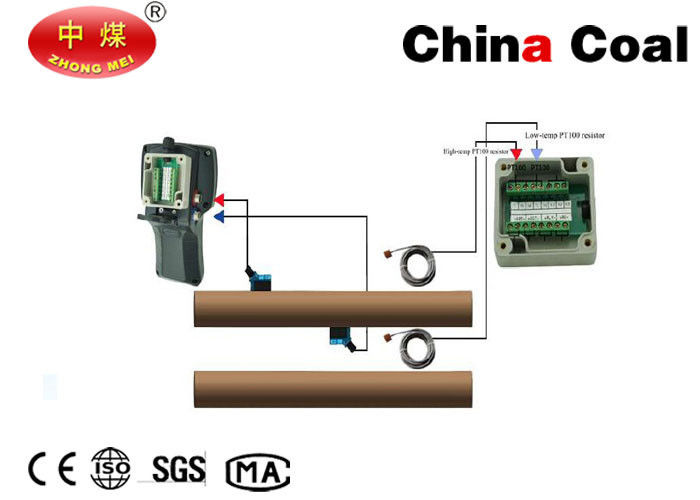

The ultrasonic flow meter with optional heat flow module installed is designed to measure the rate and quantity of heat delivered to a given building, area or heat exchanger. The device measures the volumetric flow rate of the heat exchanger liquid (water, water/glycol mixture, brine, etc.), the high temperature at the inlet pipe and the low temperature at the outlet pipe. Heat delivery is calculated by the following equation.
                     Rate of heat delivery = Q*(Tin - Tout)*c
                     Where
                              Q = volumetric flow rate
                              Tin = high temperature at the inlet
                              Tout = low temperature at the outlet
                              C = specific heat of the liquid



Feature Photo

Handheld Ultrasonic Flow Meter A E 80FB User Friendly Handheld Ultrasonic Flow Meter
                        Handheld Ultrasonic Flow Meter A E 80FB User Friendly Handheld Ultrasonic Flow Meter Handheld Ultrasonic Flow Meter A E 80FB User Friendly Handheld Ultrasonic Flow Meter Handheld Ultrasonic Flow Meter A E 80FB User Friendly Handheld Ultrasonic Flow Meter
