BW-160/10 Mud Pump 1400*850*950 horizontal, triplex. single acting reciprocation piston pump

China BW-160/10 Mud Pump 1400*850*950  horizontal, triplex. single acting reciprocation piston pump supplier
BW-160/10 Mud Pump 1400*850*950  horizontal, triplex. single acting reciprocation piston pump supplier BW-160/10 Mud Pump 1400*850*950  horizontal, triplex. single acting reciprocation piston pump supplier

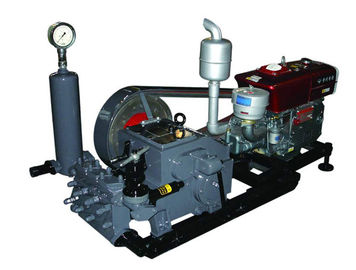

Large Image :  BW-160/10 Mud Pump 1400*850*950 horizontal, triplex. single acting reciprocation piston pump

Product Details:

Place of Origin: China
Brand Name: SINOCOREDRILL
Certification: CE

Payment & Shipping Terms:

Minimum Order Quantity: N/A
Packaging Details: Sea Delivery Package
Delivery Time: 30Days
Payment Terms: T/T
Supply Ability: Based on Detailed Order
Contact Now
Detailed Product Description

BW-160/10 Mud Pump

1)BW-160/10 Mud Pumps is equipped with drilling rigs to drill holes with mud. During drilling mud pump pumps slurry to the hole to provide coat to the wall, to lubricate the drilling tools and to carry the rock debris up to the ground. It is applied to geological core drilling and prospecting drilling with depth less than 1000 meter.



2)BW-160/10 mud pump is a horizontal, triplex, single acting reciprocation piston pump. It is function is to supply the drilling hole with flushing liquor in order to carry bit. It is used matching drill rigs. It is applied to geological and engineering prospecting such as the railway, the water conservancy, the met-allurgy, the build and the geology etc industry whose hole deep is within 1000m. Also it can be used to deliver water to high mountains or in the execution domain of middle and low pressure grouting and non excavating matching. This pump ha advantages such as small cubage, light mass, long life, simple operation and reliable per-formance, etc

BW-160/10 Mud Pump 1400*850*950  horizontal, triplex. single acting reciprocation piston pump



Model number

BW-160/10

Type

horizontal, triplex. single acting reciprocation piston pump

Stroke(mm)

70

Dia. of piston(mm)

70

Pump speed(min)

200  132   83   55

Output volume(1/min)

160  107   67   44

Pressure(Mpa)

2.5   4    6.5   10

Volumetric efficiency(%)

95

Overall efficiency(%)

75

Input hose diameter(mm)

51

Output hose diameter(mm)

25

Power of dynamic force(Kw)

11    13.24

Rotate speed of dynamics force(r/min)

1460  2200

Overall size(length*width*height)

1400*850*950

Mass(kg)

380
