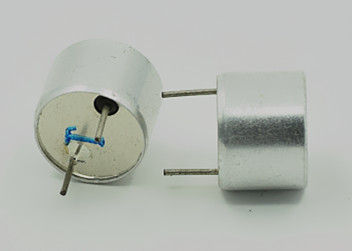

Open Structure Long Range Ultrasonic Sensor For Measuring Liquid Level

Open Structure Long Range Ultrasonic Sensor For Measuring Liquid Level
Open Structure Long Range Ultrasonic Sensor For Measuring Liquid Level

Large Image :  Open Structure Long Range Ultrasonic Sensor For Measuring Liquid Level

Product Details:
Place of Origin: Jiangsu China
Brand Name: MANORSHI
Certification: ISO, CE, ROHS
Model Number: MSO-AT1040H07R
Payment & Shipping Terms:
Minimum Order Quantity: 500PC
Price: USD0.2 - USD0.4
Packaging Details: Standard export package
Delivery Time: 1-3 weeks
Payment Terms: L/C, T/T, By Paypal, Western Union
Supply Ability: 10000000pcs/Month
Detailed Product Description
Product Name: Long Range Ultrasonic Sensor Material: Aluminum
Using Method: Separate Transmitter Or Receiver. Center Frequency: 40kHz

Open Structure Long Range Ultrasonic Sensor For Measuring Liquid Level



Quick details:



1. Dimension: 9.8mm(D)*7.0mm(H)

2. Center frequency :40.0±1.0KHz

3. Using Method: Separate transmitter or receiver.

4. Construction:open structure type
5. Directivity Deg :80°±15°  (-6dB)
6. Sensitivity:-68dB min
7. Capacitance :2200±20%pF

8. Sound Pressure Level  :110dB min

9. Max.Input Voltage:40Vp-p

10. Typical Sensing Range : 0.2~15m
11. Operating Temperature :-20℃ ~+70℃
12. Storage Temperature:-40℃ ~+85℃




Drawing (mm)



Open Structure Long Range Ultrasonic Sensor For Measuring Liquid Level 0



Application



- Remote Control

- Automatic doors

- Burglar and disaster detection alarm

- Distance meter and range finder



The main function of the ultrasonic sensor are transmitting and receiving. Ultrasonic sensors provide easy method of distance measurement. defined as electronic devices that emit an acoustic wave beyond the upper range of human hearing called the audible range, between 20 hertz and 20 kilohertz  and determine the distance between the sensor and an object based on the time it takes to send the signal and receive the echo. generic distance measurement, and commercial fish finders, among other applications.
