200 - 250ml One Year Shelflife Beverage Filling Line Like Tetra Pack

200 - 250ml One Year Shelflife Beverage Filling Line Like Tetra Pack
200 - 250ml One Year Shelflife Beverage Filling Line Like Tetra Pack 200 - 250ml One Year Shelflife Beverage Filling Line Like Tetra Pack 200 - 250ml One Year Shelflife Beverage Filling Line Like Tetra Pack 200 - 250ml One Year Shelflife Beverage Filling Line Like Tetra Pack

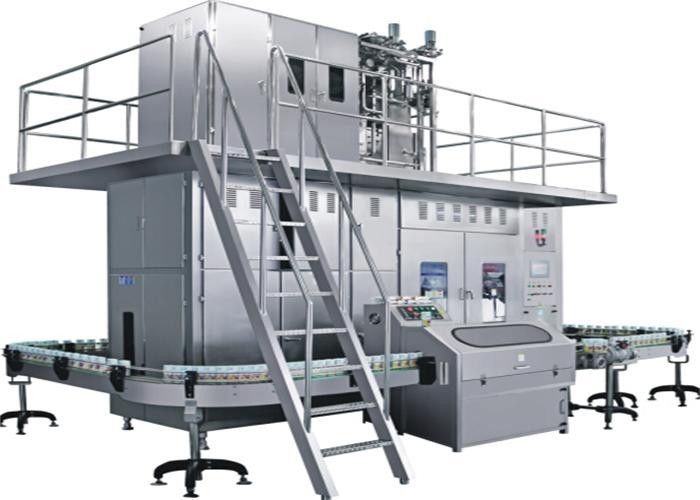

Large Image :  200 - 250ml One Year Shelflife Beverage Filling Line Like Tetra Pack

Product Details:
Place of Origin: Shanghai,China
Brand Name: Joylong
Certification: ISO CE
Model Number: JB-2000
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD100000-500000.00/SET
Packaging Details: Export standard package
Delivery Time: 60days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1SET/MONTH
Detailed Product Description
Capacity: 8000bph Volume: 250ml
Power: 30kw Warranty: One Year
Size: 5000*1800*4000mm Delivery: 60 Days

UHT / HTR Sterilization Beverage Filling Line 200 - 250ml Full Automatic





Machine Features :
< 1 The machine is suitable for filling milk ,juice ,wine and other Beverage
<2 High automation ,convenient to operate
<3 Liquid level automatic control of filling volume can be more accurate
<4 we use the Full automatic splicing pp strip
<5 Main components use worldwide famous brand
Delievery :45-60days
payment Term :40% deposit after sign the contract ,The balance before shipment
Quality Guarantee :12 months after installation


 Features

 1. The move of cartons is drive by cams. Top sealing ,bottom sealing and ear forming

 can be done at one time, steady running; simple process.



2. The machine is adopter to cup metering filling to ensure filling accuracy, and it can be

CIP automatic cleaning.



3. Two kinds of sterilization: UHT sterilization; HTR(High Temperature Retort) sterilization;

HTR production technology is the same as whole set of production line technology for solid

food. Shelf life for 8-12 month.



4. Paper AlPE seven layers of laminating aseptic packaging material can almost reach complete

 barrier. Meanwhile, the material can be heated under 120 degrees without deformation.



5. High degree of automation in packaging process, 7000 packages per hour, high yield of

package



6. The main machine components is made of stainless steel, composite food machinery

standards.



7. The key components adopt international famous brands, superior performance, safe and

reliable operation.

♦ Working Process



1. Stacking Part                                           2. Carton Pre-folding



3. Top sealing by high-frequency                  4. Sterile cabinet



5. Spraying hydrogen peroxide                      6. High-temperature drying sterilization



7. The filling part                                         8. Bottom pre-folding



9. Bottom high-frequency sealing                  10. Ear forming heating

11. Forming

200 - 250ml One Year Shelflife Beverage Filling Line Like Tetra Pack 0

200 - 250ml One Year Shelflife Beverage Filling Line Like Tetra Pack 1
