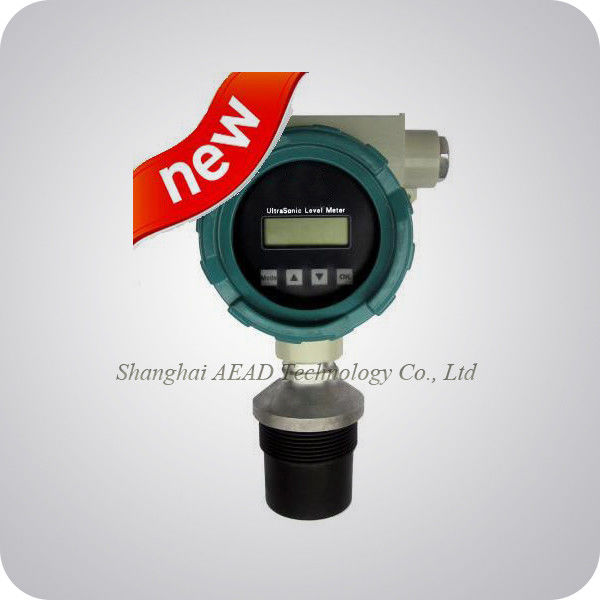

Anti-Explosion Ultrasonic Liquid Level Meter (A+E 63LB)
Detailed Product Description
ThisAnti-explosion Ultrasonic Liquidlevel meterhas the built-in temperature compensation unit, self-adaptive power and uses a combination of self-developed patented technologies with a brand new signal processing techniques, which greatly improves the accuracy of the meter and has obvious inhibitory function to the interference echo waves.The product adopts metal aluminum ally die-casting housing. The appearance is beautiful and has very good protection capabilities. The meter uses industrial isolated power and all the input and output lines are equipped with lightning protection, over-voltage protection and over-current protection circuit.Installation of the ultrasonic liquid level meter
1) The distance between the probe and the lowest level should be shorter than the measuring range of the choosed level meter.
2) The distance between the probe and the highest level should be longer than the dead zone of the choosed level meter.
3) The surface of the probe should be keeping parallel with the liquid.
Application of the ultrasonic level meterSimple installation, maintenance, calibration and this meter can select bracket or flange installation according to the site installation conditions. Integrative installation or split installation can be selected according to the site. ThisAnti-explosion Ultrasonic Liquidlevel metercan be used under various acids, alkalis, corrosive, high-temperature explosion-proof circumstances.
|Measuring range||0-3m, 0-6m, 0-10m, 0-15m, 0-20m|
|Pressure||under 0.4 MPa|
|Simulate output||4-20mA current|
|Digital output||Hart (optional and charged more)|
|Power supply||DC 12-36V|
|Ambient temperature||-20-60 degree|
|Anti-explosion||Ex dII BT6|
|Probe||water proof, ABS, anticorrosion, PTFE|
