Rechargeable CR2/IFR15270 200mAh 3.0V LiFePO4 Battery for Remote monitoring systems

China Beijing Water Meter Co.,Ltd. certification
China Beijing Water Meter Co.,Ltd. certification
Cooperation is very satisfactory and the Company of the past few years, we are very willing to continue long-term cooperation.

—— Dean

The company considerate after-sales service ,And try their best to meet the requirement of customers. We will be a long-term cooperation.

—— Albert

Easy to talk with, very professional and fast service, the quality is super good. Even better than we ordered from Germany!!

—— Germany Fabian Scherb

I'm Online Chat Now

Rechargeable CR2/IFR15270 200mAh 3.0V LiFePO4 Battery for Remote monitoring systems

Rechargeable CR2/IFR15270 200mAh 3.0V LiFePO4 Battery for Remote monitoring systems
Rechargeable CR2/IFR15270 200mAh 3.0V LiFePO4 Battery for Remote monitoring systems Rechargeable CR2/IFR15270 200mAh 3.0V LiFePO4 Battery for Remote monitoring systems

Large Image :  Rechargeable CR2/IFR15270 200mAh 3.0V LiFePO4 Battery for Remote monitoring systems

Product Details:
Place of Origin: Shenzhen zhuhai
Brand Name: TAC OEM ODM
Certification: MSDS REACH ROHS
Model Number: PIFC0030
Payment & Shipping Terms:
Minimum Order Quantity: 200PCS
Price: usd 1.0
Packaging Details: Follow UN38.3 Rule
Delivery Time: 7 days for single cell 15-20 days for battery pack
Payment Terms: T/T
Supply Ability: 50000 pack for one week
Detailed Product Description
Type: LiFePO4 Battery Capacity: 200 Mah
Voltage: 3.7v Circle Life: 2000 Times
Warranty: 12 Months Pvc: Blue
Pcb: With Customer Require Size: CR2 15*27MM
High Light:

lifepo4 battery pack

,

lifepo4 rechargeable batteries

Rechargeable CR2/IFR15270 200mAh 3.0V LiFePO4 Battery for Remote Monitoring Systems


Feature for Rechargeable CR2/IFR15270 200mAh 3.0V LiFePO4 Battery for Remote Monitoring Systems


Generally speaking, 3.0V CR2 is not rechargeable,but IFR15270/CR2(Lithium Iron phosphate battery) is rechargeable,
So we always use IFR15270 replace of CR2.



1. High energy density then mormal lithium-ion battery
2. High open circuit voltage, 3.2V-3.65V
3. Wide range of operating temperature 0-60 degree
4. Stable operating voltage and current
5. Long operating time 2000 times
6. Low self-discharge rate (less than 2% per year at 20°C).



Specification for Rechargeable CR2/IFR15270 200mAh 3.0V LiFePO4 Battery for Remote Monitoring Systems

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

200mAh

Standard discharge(0.2 C5A) after Standard charge

Minimum

190mAh

2

Nominal Voltage

3.2V

Mean Operation Voltage

3

Voltage at end of
Discharge

2.0V

Discharge Cut-off Voltage

4

Charging Voltage

3.65V



5

Internal Impedance

≤150mΩ

Internal resistance measured at AC 1KHZ after 50% charge
The measure must uses the new batteries that within one week after shipment and cycles less than 5 times

6

Standard charge

Constant Current 0.2C5A
Constant Voltage 3.65V
0.01 C5A cut-off



7

Standard discharge

Constant current 0.2 C5A
end voltage 2.0V





Circle Life Test Standard



8

Fast charge

Constant Current 1C5A
Constant Voltage 3.65V
0.01 C5A cut-off



9

Fast discharge

Constant current 1 C5A
end voltage 2.0V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

1.5C5A



12

Operation Temperature Range

Charge: 0~45℃

60±25%R.H.
Bare Cell

Discharge: -10~60℃

13

Storage Temperature Range

Less than 1 year: -20~25℃

60±25%R.H.
at the shipment state

less than 3 months: -20~40℃

Less than 7 day : -20~65℃

14

Cell  Dimension

High: 27.0±0.5 mm

Initial  Dimension

Diameter:15.0±0.5 mm




Main Applications :


1. Utility meter (water, electricity, gas meter, AMR)
2. Alarm or security equipment (smoke alarm system, detector)
3. GPS tracking
4. Teal time clock
5. Digital control machine
6. Military
7. Remote monitoring systems
8. Car electronics
9. Camera
  ... ...

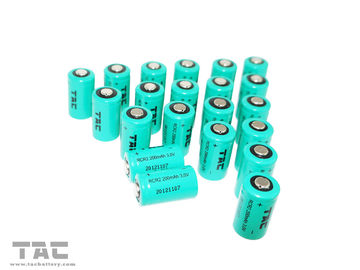

Picture &Drawing:
Rechargeable CR2/IFR15270 200mAh 3.0V LiFePO4 Battery for Remote monitoring systems





Rechargeable CR2/IFR15270 200mAh 3.0V LiFePO4 Battery for Remote monitoring systems



Rechargeable CR2/IFR15270 200mAh 3.0V LiFePO4 Battery for Remote monitoring systems




Available Model for the LIFePO4 Button Cell:



Rechargeable CR2/IFR15270 200mAh 3.0V LiFePO4 Battery for Remote monitoring systems 2

Cautions in use


To ensure proper use of the battery please read the manual carefully before using it.
   . Handling

  •  Do not expose to, dispose of the battery in fire.
  • Do not put the battery in a charger or equipment with wrong terminals connected.
  • Avoid shorting the battery
  • Avoid excessive physical shock or vibration.
  • Do not disassemble or deform the battery.
  • Do not immerse in water.
  • Do not use the battery mixed with other different make, type, or model batteries.
  • Keep out of the reach of children.

     . Storage

  • Store the battery in a cool, dry and well-ventilated area.

     . Disposal

  • Regulations vary for different countries.
  • Dispose of in accordance with local regulations.


Battery operation instruction

Discharging current

The discharging current does not have to surpass this specification book stipulation the biggest discharging current, the over sized electric current electric discharge can cause the battery capacity play to reduce and to cause the battery heat.



Electric discharge temperature

The battery discharge must carry on in the ambient temperature scope which this specification book stipulated.



Storing the Batteries

The battery should store in the product specification book stipulation temperature range. If has surpasses above for six months the long time storage, the discharge capacity will decrease sharply.

Period of Warranty
12 months after the batteries were shipped out from factory
