Single Jet Remote Reading Water Meter

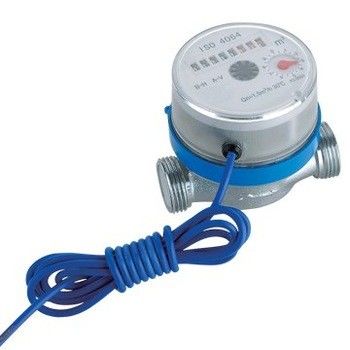

Large Image : Single Jet Remote Reading Water Meter

Product Details:

Place of Origin:	Shijiazhuang
Brand Name:	Yuanjiang

Payment & Shipping Terms:

Minimum Order Quantity:	500 pieces
Packaging Details:	Packing: PCS/CTN: 20pcs G.W/CTN: 15kg OUTER CARTON(mm):430270190 OUTER CARTON(m3):0.022059 PCS/20' : 24,000
Delivery Time:	within 15-20 days after receiving the deposit
Payment Terms:	T/T
Supply Ability:	300000 Pieces per Month

Contact Now

Detailed Product Description

High Light:

Remote Reading Water Mete

single jet water meter

water meter

Single Jet Remote Reading Water Meter

Application:

Measuring the volume of cold potable water passing through the pipeline with remote reading device

Features:

Dry type, small light, magnetic drive, free rotating register, easy and long term clear reading

Length of body of 80mm is available.

Magnet resistance

Data Output Options:10 L/Pulse

Reed Switch Electric Data

Voltage: 24V AC/DC max.

Current: 0.01A max

Water temperature: ≤40°Cfor cold potable water meter (≤90°Cfor cold potable water meter)

Working Pressure: ≤1.6Mpa (16 bar)

Maximum Permissible Error

a) In the lower zone from Qmin inclusive up to but excluding Qt is:Cold potable and Hot water meter±5% b)In the upper zone from Qt inclusive up to and including Qs is:Cold potable water meter±2% Hot water meter±2%

Single Jet Remote Reading Water Meter
