Plastic Rotary Piston Water Meter DN15mm , Multi Jet Water Meter LXH-15P

Plastic Rotary Piston Water Meter DN15mm , Multi Jet Water Meter LXH-15P
Plastic Rotary Piston Water Meter DN15mm , Multi Jet Water Meter LXH-15P Plastic Rotary Piston Water Meter DN15mm , Multi Jet Water Meter LXH-15P

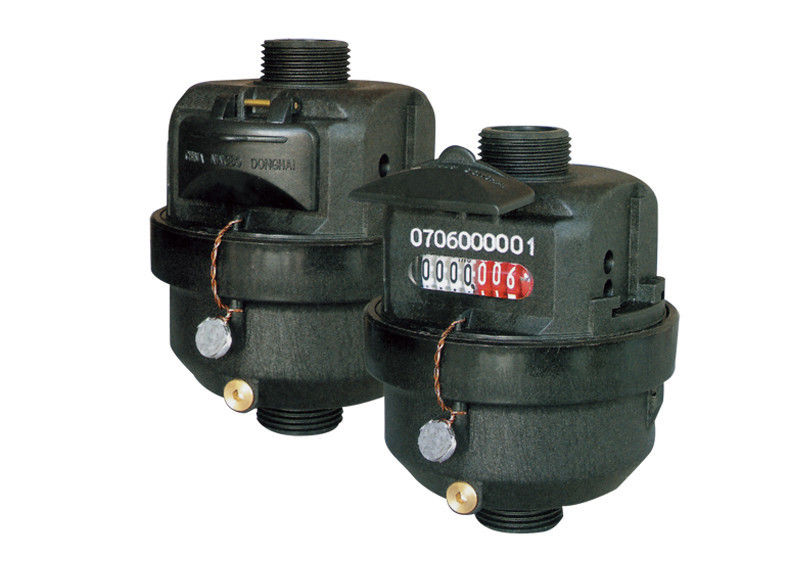

Large Image :  Plastic Rotary Piston Water Meter DN15mm , Multi Jet Water Meter LXH-15P

Product Details:
Place of Origin: Ningbo ,China
Brand Name: Yongzhou
Certification: ISO9001:2008
Model Number: LXH-15P
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Packaging Details: Carton box
Delivery Time: 15-30days after receiving deposit
Payment Terms: T/T , LC, West union, MoneyGram,etc.
Supply Ability: 100000 pcs/month
Detailed Product Description
Model NO: LXH-15P Application: Household|Resident
Dial: Wet Dial Feature: Rotary|Horizontal
Material: Plastic Product Name: Plastic Water Meters
Standard: ISO 4064 Type: Multi Jet
Water Type: Cold
High Light:

automatic Water Meter

,

industrial water meter

Plastic Rotary Piston Water Meter , DN15mm Multi Jet Water Meter LXH-15P







Quick Detail:



1. Type name: Volumetric piston water meter

2. Model No.: LXH-15P

3. Standard :ISO 4064 Class C

4. Material: Nylon plastic

5. Feature :Register is sealed with a special liquid

6. Vertical or horizontal installation





Description:



Plastic Body Rotary Piston Volumetric Type Cold Water Meter LXH-15P





Product features:



• Adopting volumetric rotary piston principle of measurement

• Accurate Measurement register separated from water to ensure a clear reading in long-term service

• Material: nylon plastic

• Selected high quality materials for steady & reliable characteristic and good looking

• Plastic meter body adopt the new-style nontoxic plastic material ,with cabinetdesign, this kind of water meter also available for drinking water ,cause of drain hole is a uniquely design to drain off the dirty water .





APPLICATION:



This range of water meter is used to measure the total quantity of cold potable water which consumed in household or a resident unit, passing through the pipeline





Installation requirements:



  1. Meter should be installed in vertical or horizontal position with the register face upwards
  2. Pipe line must be flushed before installation
  3. The meter should be constantly full of water during operation





Main Technical data



Meter Size  (mm)





Class



Qs

Overload

Flow

Qp

Nominal

Flow

Qt

Transitional

Flow

Qmin

Min

Flow

Starting

Flow

Min

Reading

Max

Reading

m³/h

      L/h

15

  C

    3

  1.5

22.5

15.0

5

0.0001

9999

20

  C

    5

  2.5

   37.5

 25

   7

0.0001

9999





Maximum permissible error:



In the lower zone from Qmin inclusive up to but excluding Qt is ±5%

In the upper zone from Qt inclusive up to and including Qs is ±2%





Working Condition:



Water temperature:0℃≤t≤50℃ (For cold water meter)

Water pressure: ≤10bar





Specifications:



Type

 size

 L

  B

H

Connection thread

LXH-15P

 15

 115

  84

  115

    G3/4B

LXH-20P

 20

 130

94/103

  115

    G1B





Competitive Advantage:



 Reasonable price with good quality

 Long time guarantee

 100% tested

 On time delivery
