Horizontal Plastic Plastic Water Meters / Rotary Water Meter For Resident

China Horizontal Plastic Plastic Water Meters / Rotary Water Meter For Resident supplier
Horizontal Plastic Plastic Water Meters / Rotary Water Meter For Resident supplier Horizontal Plastic Plastic Water Meters / Rotary Water Meter For Resident supplier Horizontal Plastic Plastic Water Meters / Rotary Water Meter For Resident supplier Horizontal Plastic Plastic Water Meters / Rotary Water Meter For Resident supplier

Large Image :  Horizontal Plastic Plastic Water Meters / Rotary Water Meter For Resident

Product Details:

Place of Origin: Ningbo ,China
Brand Name: Yongzhou
Certification: ISO9001:2008
Model Number: LXSG-15EP

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Packaging Details: Carton box
Delivery Time: 15-30days after receiving deposit
Payment Terms: T/T, LC, West union, MoneyGram, etc.
Supply Ability: 100000 pcs/month
Contact Now
Detailed Product Description
Application: Resident Dial: Dry Dial
Feature: Rotary|Vane Wheel Material: Plastic
Product Name: In Line Water Meter|Plastic Water Meters Standard: ISO 4064|Class B
Type: Multi Jet Water Type: Cold

Horizontal Plastic Water Meters , Residential Rotary Water Meter





Description:

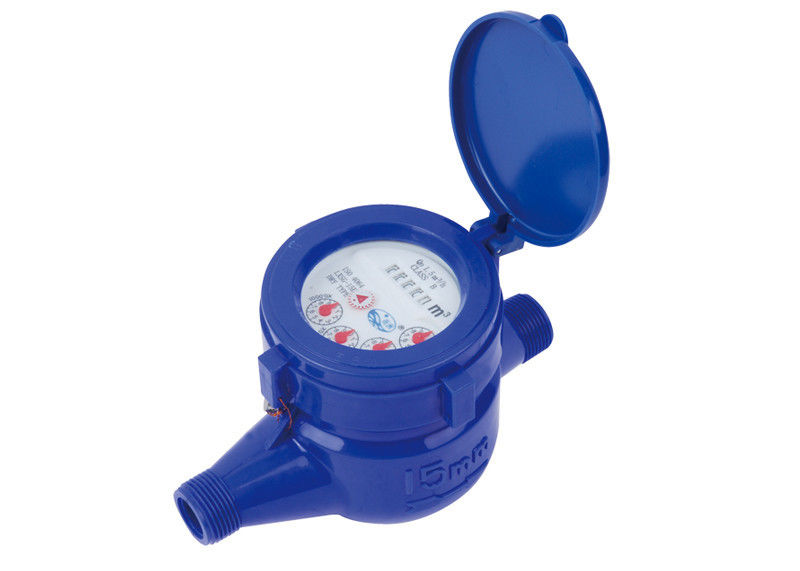

Multi-jet Dry-dial Type Cold Water Meter LXSG-15EP

Multi-jet ,Rotary vane wheel type

Dry-dial, Magnetic drive ,Resistance to exterior magnet interference

Material: ABS plastic

Good looking

Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service

Measuring accuracy conform to ISO4064 Class B standard





Quick Detail:



1.Type name:Multi-jet dry-dial ,Magnetic drive

2.Model No.: LXSG-15EP

3.Standard:ISO 4064 Class B

4.Material: ABS plastic

5.Feature :Anti-magnet







Installation requirements:



  1. Meter should be installed in horizontal position with the register face upwards
  2. Pipe line must be flushed before installation
  3. The meter should be constantly full of water during operation





Main Technical data



Meter Size  DN (mm)





Class



Qs

Overload

Flow

Qp

Nominal

Flow

Qt

Transitional

Flow

Qmin

Min

Flow

Starting

Flow

Min

Reading

Max

Reading

m³/h

      L/h

15

  B

    3

  1.5

120

30

14

0.0001

99999

20

  B

    5

  2.5

   200

 50

  16

0.0001

99999

25

  B

    7

  3.5

   280

 70

  19

0.0001

99999

32

B

   12

  6.0

   480

 120

  25

0.0001

99999

40

   20

  10

   800

 200

56

0.0001

99999

50

  B

   30

  15

   3000

 450

  70

0.0001

99999





Maximum permissible error:



In the lower zone from Qmin inclusive up to but excluding Qt is ±5%

In the upper zone from Qt inclusive up to and including Qs is ±2%





Working Condition:



Water temperature:0℃≤t≤50℃ (For cold water meter)

Water pressure: ≤10bar (16bar on request)





Specifications:



Type

 size

 L

  B

H

Connection thread

LSXG-15EP

 15

 165

  102

  115

    G3/4B

LXSG-20EP

 20

 190

  102

  115

    G1B





Competitive Advantage:



 Low price

Stable quality

 Long time guarantee

 100% tested

 On time delivery
