ABS Multi Jet Plastic Water Meters Liquid Sealed For Cold , LXSY-15EP

China ABS Multi Jet Plastic Water Meters Liquid Sealed For Cold , LXSY-15EP supplier
ABS Multi Jet Plastic Water Meters Liquid Sealed For Cold , LXSY-15EP supplier ABS Multi Jet Plastic Water Meters Liquid Sealed For Cold , LXSY-15EP supplier ABS Multi Jet Plastic Water Meters Liquid Sealed For Cold , LXSY-15EP supplier ABS Multi Jet Plastic Water Meters Liquid Sealed For Cold , LXSY-15EP supplier

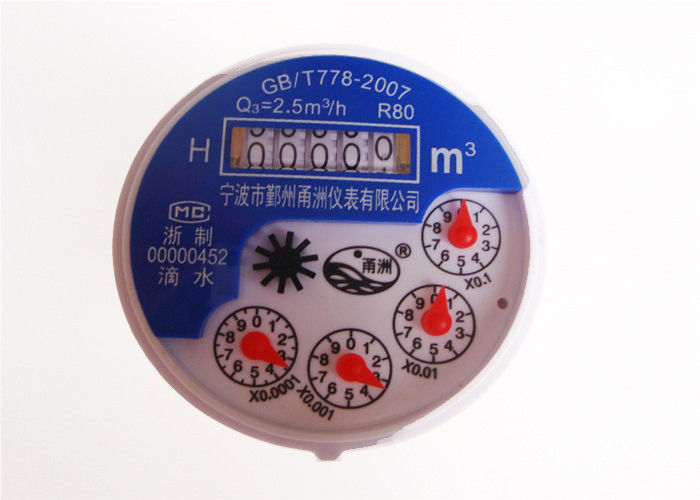

Large Image :  ABS Multi Jet Plastic Water Meters Liquid Sealed For Cold , LXSY-15EP

Product Details:

Place of Origin: Ningbo ,China
Brand Name: Yongzhou
Certification: ISO9001:2008
Model Number: LXSY-15EP

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Packaging Details: Carton box
Delivery Time: 15-30days after receiving deposit
Payment Terms: T/T , LC, West union, MoneyGram, etc,.
Supply Ability: 100000 pcs/month
Contact Now
Detailed Product Description
Application: Household|Resident Feature: Rotary|Vane Wheel|Horizontal
Material: ABS Product Name: Plastic Water Meters
Standard: ISO 4064|Class B Type: Multi Jet
Water Type: Hot|Cold

ABS Multi Jet Plastic Water Meters Liquid Sealed For Cold , LXSY-15EP







Quick Detail:



1. Type name: Multi-jet ,rotary vane wheel type

2. Model No.: LXSY-15EP

3. Standard :ISO 4064 Class B

4. Material: ABS

5.  Liquid-sealed

6. Small at starting flow





Description:



Multi-jet Liquid-sealed Type Cold Water Meter LXSY-15E





Product features:



Multi-jet , rotary vane wheel type

Special liquid sealed register ensures the dial keep the reading clear in a long term service

Especially suit to the area of lower quality water

Small at Starting flow rater and good looking





Application:



The range of water meter is used to measure the total quantity of cold (hot) potable water which consumed in household or a resident unit passing through the pipeline.





Installation requirements:



  1. Meter should be installed in horizontal position with the register face upwards
  2. Pipe line must be flushed before installation
  3. The meter should be constantly full of water during operation





Main Technical data



Meter Size  DN (mm)





Class



Qs

Overload

Flow

Qp

Nominal

Flow

Qt

Transitional

Flow

Qmin

Min

Flow

Starting

Flow

Min

Reading

Max

Reading

m³/h

      L/h

15

  B

    3

  1.5

120

30

8

0.0001

99999

20

  B

    5

  2.5

   200

 50

  10

0.0001

99999

25

  B

    7

  3.5

   280

 70

  12

0.0001

99999

32

B

   12

  6.0

   480

 120

  14

0.0001

99999

40

   20

  10

   800

 200

40

0.0001

99999

50

  B

   30

  15

   3000

 450

  45

0.0001

99999





Maximum permissible error:



In the lower zone from Qmin inclusive up to but excluding Qt is ±5%

In the upper zone from Qt inclusive up to and including Qs is ±2%





Working Condition:



Water temperature:0℃≤t≤50℃ (For cold water meter)

Water pressure: ≤10bar (16bar on request)





Specifications:



Type

 size

 L

  B

H

Connection thread

LSXG-15EP

 15

 165

  102

  115

    G3/4B

LXSG-20EP

 20

 190

  102

  115

    G1B





Competitive Advantage:



 Reasonable price with good quality

 Long time guarantee

 100% tested

 On time delivery
