PE PP NMO Nylon PA Washable Filter Media 5 Micron for Water Treatment

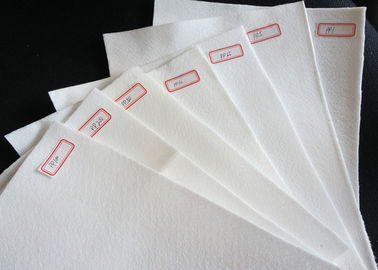

Large Image : PE PP NMO Nylon PA Washable Filter Media 5 Micron for Water Treatment

Product Details:

Place of Origin:	China
Brand Name:	Philis
Certification:	ISO
Model Number:	micron filter cloth

Payment & Shipping Terms:

Minimum Order Quantity:	100 meters
Price:	Negotiable
Packaging Details:	standard export package
Delivery Time:	within 10 days
Payment Terms:	T/T
Supply Ability:	100000m per week

Contact Now

Detailed Product Description

Material:	PP, PE, PA	Color:	White
Micron:	0.5-1000micron	Certificate::	ISO9001
Package::	Carton With Plastic Bag Inside	Weight::	200-900GSM
High Light:	micron filter fabric , polypropylene filter cloth

PE PP NMO Nylon PA Washable Filter Media 5 Micron for Water Treatment

Quick Detail:

Material : PE,polyester .
Micron rating : 0.5um ~800um
Good anti-abrasion
High temperature grade
Anti acid ,anti alkali, chemical resistance
High porosity ,good air permeability
Laminated compound,grads counterchange

Description:

Low temperature resistance ( 80-110 ℃)
Excellent resistant to hydrolysis, acids and alkalies.
Smooth surface, more defined pore size and good air permeability
Lower fiber release, Lower density,High mechanical characteristics

Specifications:

Material		Polypropylene / polypropylene scrim
Weight(g/m²)		500	550	600	650
Thickness(mm)		2.0	2.2	2.4	2.6
Air permeability(m3/m3/min)		12.6	10.8	9.6	8.4
Tensile Strength(N/5X20cm)	Warp	>960	>1150	>1350	>1500
Tensile Strength(N/5X20cm)	Weft	>1060	>1400	>1650	>1800
Tensile elongation(%)	Warp	<35	<35	<35	<35
Tensile elongation(%)	Weft	<55	<55	<55	<55
Working temperature(℃)	Continues	<90	<90	<90	<90
Working temperature(℃)	Instant	110	110	110	110
Anti-acid		Excellent	Excellent	Excellent	Excellent
Anti-alkali		Excellent	Excellent	Excellent	Excellent
Anti-abrasion		Excellent	Excellent	Excellent	Excellent
Finishing treatment		Singeing or high temperature press

PP Needle Felt Filterability Model: (Can be customized)

Performance Parameter	Weight (g/sm)	Thickness (mm )	Air Permeability (m3/m2/min)	Tensile strength (N/5×20cm)		Tensile Elongation (%)		Operating Temp. (°C/°F)	Max Surge Temp. (°C/°F)	Suitable P.H. value
Model	/	/	/	Warp	Weft	Warp	Weft	/	/	/
PP-01	550	3.5	10	1000	1500	50	50	130/266 (Dry Heat)	150/302 (Dry Heat)	1~12
PP-05	400	2.5	20	500	1000	60	60			1~12
PP-10	400	2.2	24	500	1000	80	80			1~12
PP-25	400	3	35	500	1000	85	85			1~12
PP-50	320	3.5	100	500	600	100	80			1~12
PP-75	320	3.5	130	500	600	100	80			1~12
PP-100	350	3.8	100	500	500	100	100			1~12
PP-200	400	3.8	130	500	600	110	100			1~12

Features of PP Micron Needle Felt for Liquid Filtration:

1. Material: high-grade PP felt
2. Long working life
3. Three-dimensional filtration, indepth filtration
4. Better filtration efficiency
5. Can be customized
We can change the normal PP needle felt performance by finishing treatment such as singe, calendar, heat set, coat and etc.

Filter Materials Physical and Chemistry Performance: (Superior to PE)

Fiber	Anbrasion resistance	Weakly acid	Strongly acid	Weakly alkali	Strongly alkali	Solvent	Temperature(°C/°F)
PP	Excellent	Excellent	Excellent	Excellent	Gerneral	Excellent	93/199.4-104/219.2

Note: If you have any questions, please contact us, we will give you detailed answers!

PE PP NMO Nylon PA Washable Filter Media 5 Micron for Water Treatment 0

Applications:

Galvanic industry and Chemical industryPrefiltering solvents and acids
Prefilter to extend final filter lifeFinal filter for noncritical filtrations
Liquid-solid sepration with strong acid and alkali conditions filter press

Notices:

1. Materials avaliable: polyester, polypropylene
2. construction: welded or sewn
3. collar type: steel ring or plastic ring
4. finishing treatment: singed, calendared, heat set
5. Size available: standard and custom size.
