Bally Dynamic Waterproof Testing Machine To Test Water Penetrating Index Of Shoe Leather

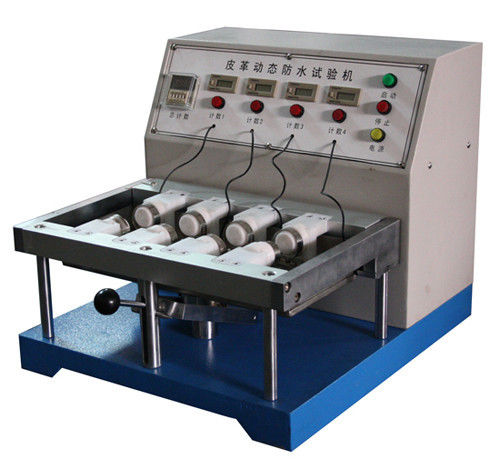

Large Image : Bally Dynamic Waterproof Testing Machine To Test Water Penetrating Index Of Shoe Leather

Product Details:

Place of Origin:	China
Brand Name:	Gaoxin
Certification:	ISO 2008
Model Number:	GX-5051

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	negotiation
Packaging Details:	Non-fumigation wooden box
Delivery Time:	15 working days
Payment Terms:	FOB Shenzhen, L/C, T/T, Western Union
Supply Ability:	50 sets per month

Contact Now

Detailed Product Description

Name:	Bally Waterproofness Tester	Function:	Leather Water Resistance Test
Test Standard:	DIN 53338	Test Sets:	4 Groups
Sample Size:	75*60mm	Test Speed:	50r/min
Counter:	LCD 999,999
High Light:	Professional Test Equipment , Material Testing Equipment

Bally Leather Dynamic Flexing Waterproof Tester, Shoe Leather Water Penetration Tester

Description

Bally Leather Dynamic Waterproof Tester used to determine the water penetration for various shoe leather upper materials, synthetic leather,cloth etc.

It determined by immersing a specimen in water and flexing by a constant speed and constant travel.

The precision detector monitoring whether water penetration

Test Criteria: DIN 53338 ISO 5403-1 ISO 17702 EN ISO 20344 EN ISO 20347 QB/T 3903.17 GB/T 20991

Main specification parameter

Work station: 4
Cylinder diameter: (30.0±0.5)mm
The same axial cylinder spacing: maximum (40.0±0.5)mm
Movable cylinder travel: 2mm 3mm 4mm 6mm
Movable cylinder speed: 50cpm
Ring clamp inner diameter: 30mm~40mm adjustable
Specimen size: 75mmX60mm
Electrode induction water penetration
Counter: LED display 0~999,999
Power: 1 phase AC 220V 50/60Hz or specified by user
Electronic balance: 0~300g, accuracy 0.001g (optional
