Multi Jet Plastic Water Meter

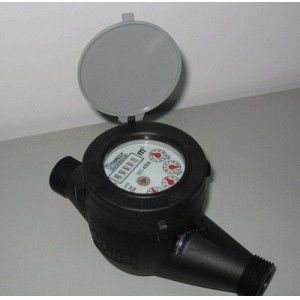

Large Image : Multi Jet Plastic Water Meter

Product Details:

Place of Origin:	Shijiazhuang
Brand Name:	Yuanjiang

Payment & Shipping Terms:

Minimum Order Quantity:	500 pieces
Packaging Details:	standard export seaworthy packing
Delivery Time:	within 15-20 days after receiving the deposit
Payment Terms:	T/T
Supply Ability:	300000 Pieces per Month

Contact Now

Detailed Product Description

High Light:

Multi Jet Plastic Water Meter

multi jet water meter

plastic water meter

Multi Jet Plastic Water Meter

Full Name:Multi Jet Vane Wheel Plastic Water Meter

Mode:LXS-15E~LXS-25E

Application:Measuring the volume of cold potable water passing through the pipeline

Features:Adopt Nylon material, health non-toxic, anti-aging, no rusting problem, fully reaches safety requirements of water meter manufacturing.

Technical Standards:GB/T 778.1~778.3-2007、JJG 162-2009

Technical Data

Items	Contents
Water Temperature	0.1℃-30℃
Working Pressure	1.0MPa
Head Loss	0.063MPa
Max. Permissive Error	Maximum permissible error: upper zone（Q2≤Q≤Q4）,±2%; low zone（Q1≤Q＜Q2), ±5%

Base Meter Parameters

Nominal Dia.	Metrologic Accuracy	Permanent Flow Q3	Q3/Q1	Q2/Q1	Min. Reading	Max.Reading
mm	class	m³/h	Q3/Q1	Q2/Q1	m³
15	B	2.5	63/80/100	1.6	0.0001	99999
20		4	63/80/100	1.6
25		6.3	63/80/100	1.6

Installation & Weight

Nominal Dia. DN(mm)	Length L	Width B	Height H	Connecting Thread	Weight Kg
Nominal Dia. DN(mm)	mm			Connecting Thread	Weight Kg
15	165/190	99	104	G3/4B	0.8
20	190/195	99	106	G1B	1.0
25	260/225	104	120	G1-1/4B	2.0
