Product Details:
Payment & Shipping Terms:
|

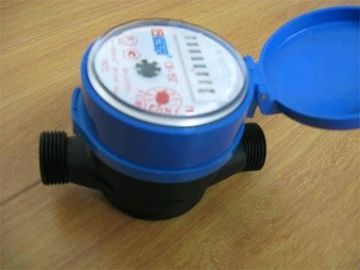

Dry type.Nylon body.For cold or hot water
DEFINITION: | |
Set of moving device that fitted into a closed conduit driven directly by water flow. Its turbine rotor rotates about the axis which is perpendicular to water flow. |
|
WORKING PRINCIPLES: | |
Water flow drives vane rotate. Rotating times which is proportional to water flow speed are gathered, hence total volume passed through water meter is recorded. | |
CHARACTERS | |
1.
2. 3. 4. 5. 6. |
Types: wet, dry, vertical, liquid sealed. Wide measuring range, high accuracy. Stable measuring capacity Long working life Low pressure loss All technical figures are conformed with GB/T778.13-1996 which is equivalent to ISO4064 Standard Class B. |
WORKING CONDITION: | |
.Water temperature≤45(Hot water meter≤90) .Water pressure≤1Mpa |
|
MAXIMUM PERMISSIBLE ERROR: | |
.
. |
From the minimum flow-rate (qmin) inclusive to the lower zone of the transitionalflow-rate (qt) exclusive: ±5% . From the transitional flow-rate (qt) inclusive to the higher zone of the maximum flow-rate (qmax) exclusive: ±2%(hot water meter±3%.) |
DEFINITION:
Set of moving device that fitted into a closed conduit driven directly by water flow. Its turbine rotor rotates about the axis which is perpendicular to water flow.
WORKING PRINCIPLES: Water flow drives vane rotate. Rotating times which is proportional to water flow speed are gathered, hence total volume passed through water meter is recorded. CHARACTERSContact Person: Miss.
