Large Dry Dial Irrigation Water Meter / Water Flow Meter for Agriculture Equipment

China Large Dry Dial Irrigation Water Meter / Water Flow Meter for Agriculture Equipment supplier
Large Dry Dial Irrigation Water Meter / Water Flow Meter for Agriculture Equipment supplier Large Dry Dial Irrigation Water Meter / Water Flow Meter for Agriculture Equipment supplier Large Dry Dial Irrigation Water Meter / Water Flow Meter for Agriculture Equipment supplier Large Dry Dial Irrigation Water Meter / Water Flow Meter for Agriculture Equipment supplier

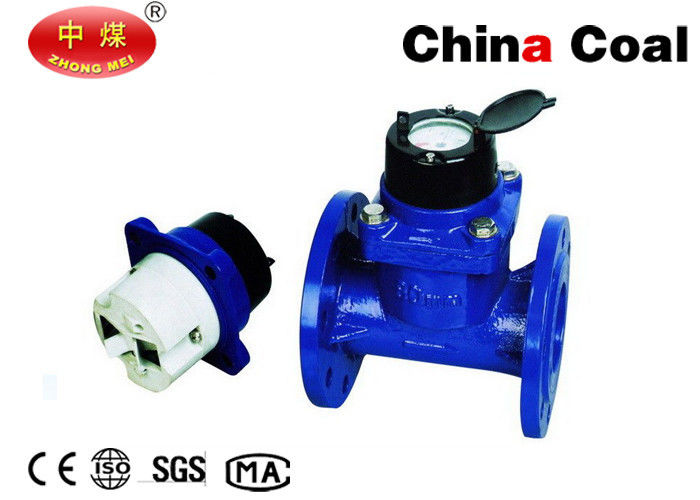

Large Image :  Large Dry Dial Irrigation Water Meter / Water Flow Meter for Agriculture Equipment

Product Details:

Place of Origin: China Shandong
Brand Name: China Coal
Certification: ISO CE SGS TUV BV MA
Model Number: LXXG-80

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Standard Export Packaging
Delivery Time: Shipped in three days after payment
Payment Terms: TT, Paypal, Western Union
Supply Ability: 5000
Contact Now
Detailed Product Description
Model: LXXG-80 Class: A
Qs Overload Flow: 80 M³/h Qp Nominal Flow: 40 M³/h
Qt Transitional Flow: 12 M³/h Qmin Min Flow: 3.2 M³/h
Min Reading: 0.002m³ Max Reading: 999999m³
High Light:

detector device

,

detection instruments

Large Dry-Dial Irrigation Water Meter

Large Dry-Dial Irrigation Water Meter , Water Flow Meter,Flow Meter

Description:



Dry-dial Type Irrigation water meter LXXG-80

Product features:

Irrigation water meter

Removable element structure,easy installation and maintenance

Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term

Universal use with this range detachable,without removing the meter from the pipeline for a easy

maintenance and replacement ,good looking,etc.

Measuring accuracy conform to ISO4064 Class A standard

Installation requirements:

    Meter should be installed in horizontal position with the register face upwards

    Pipe line must be flushed before installation

    The meter should be constantly full of water during operation

Maximum permissible error:

In the lower zone from Qmin inclusive up to but excluding Qt is ±5%

In the upper zone from Qt inclusive up to and including Qs is ±2%

Main Technical data



Large Dry Dial Irrigation Water Meter Water Flow Meter for Agriculture

Meter Size  DN (mm)





Class



Qs

Overload

Flow

Qp

Nominal

Flow

Qt

Transitional

Flow

Qmin

Min

Flow

Min

Reading

Max

Reading

m³/h

50

  A

    30

  15

4.5

1.2

0.0002

999999

65

A

    50

  25

     7.5

2.0

0.002

999999

80

  A

    80

  40

     12

3.2

0.002

999999

100

A

   120

  60

     18

4.8

 0.002

999999

125

A

   200

 100

     30

 8

0.002

999999

150

  A

   300

 150

     45

12

0.002

999999

200

  A

   500

 250

     75

20

0.002

999999

250

  A

   800

 400

     120

32

0.002

999999

300

  A

  1200

 600

     180

48

0.002

999999

Feature Photo
Large Dry Dial Irrigation Water Meter  Water Flow Meter for AgricultureLarge Dry Dial Irrigation Water Meter  Water Flow Meter for AgricultureLarge Dry Dial Irrigation Water Meter  Water Flow Meter for AgricultureLarge Dry Dial Irrigation Water Meter  Water Flow Meter for Agriculture
